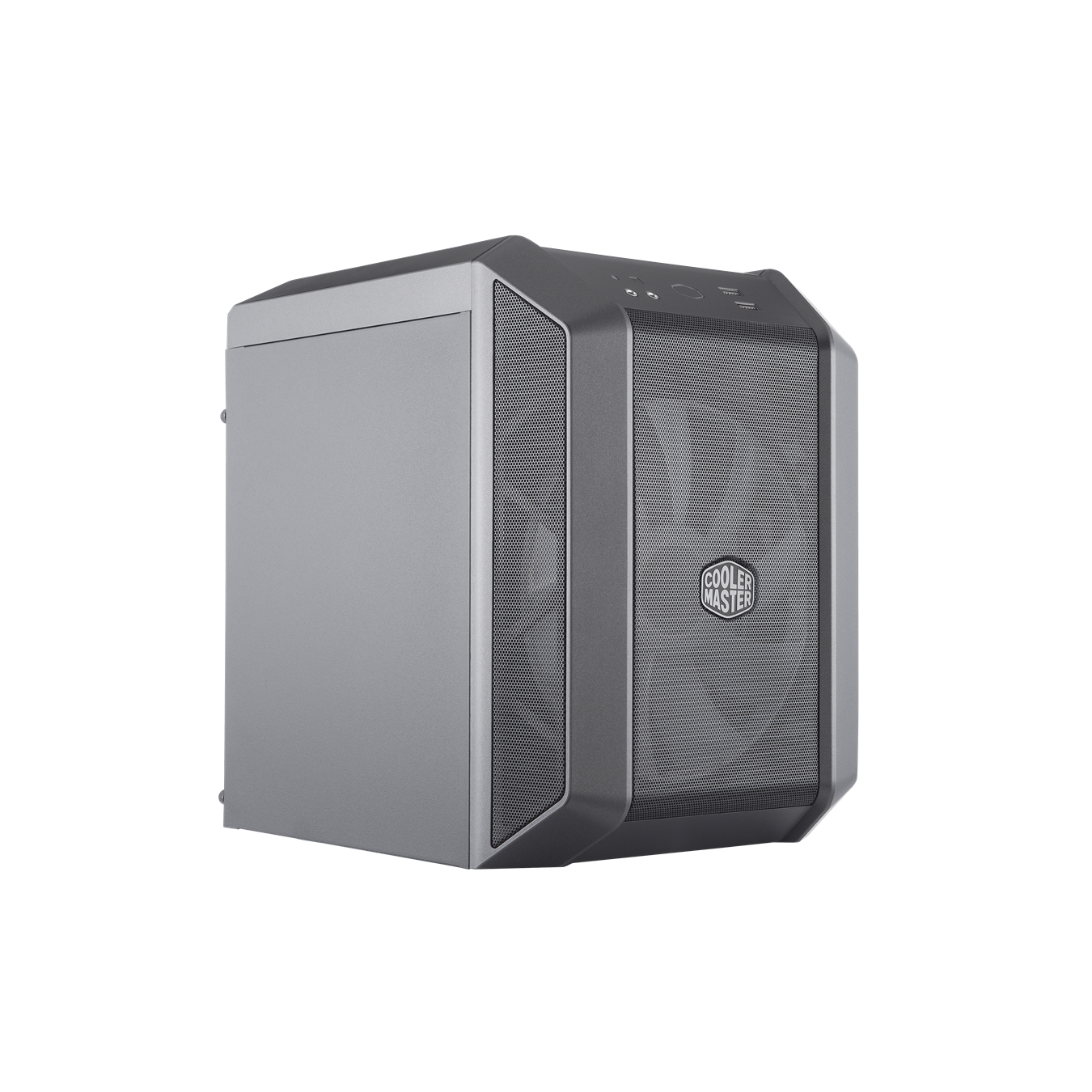

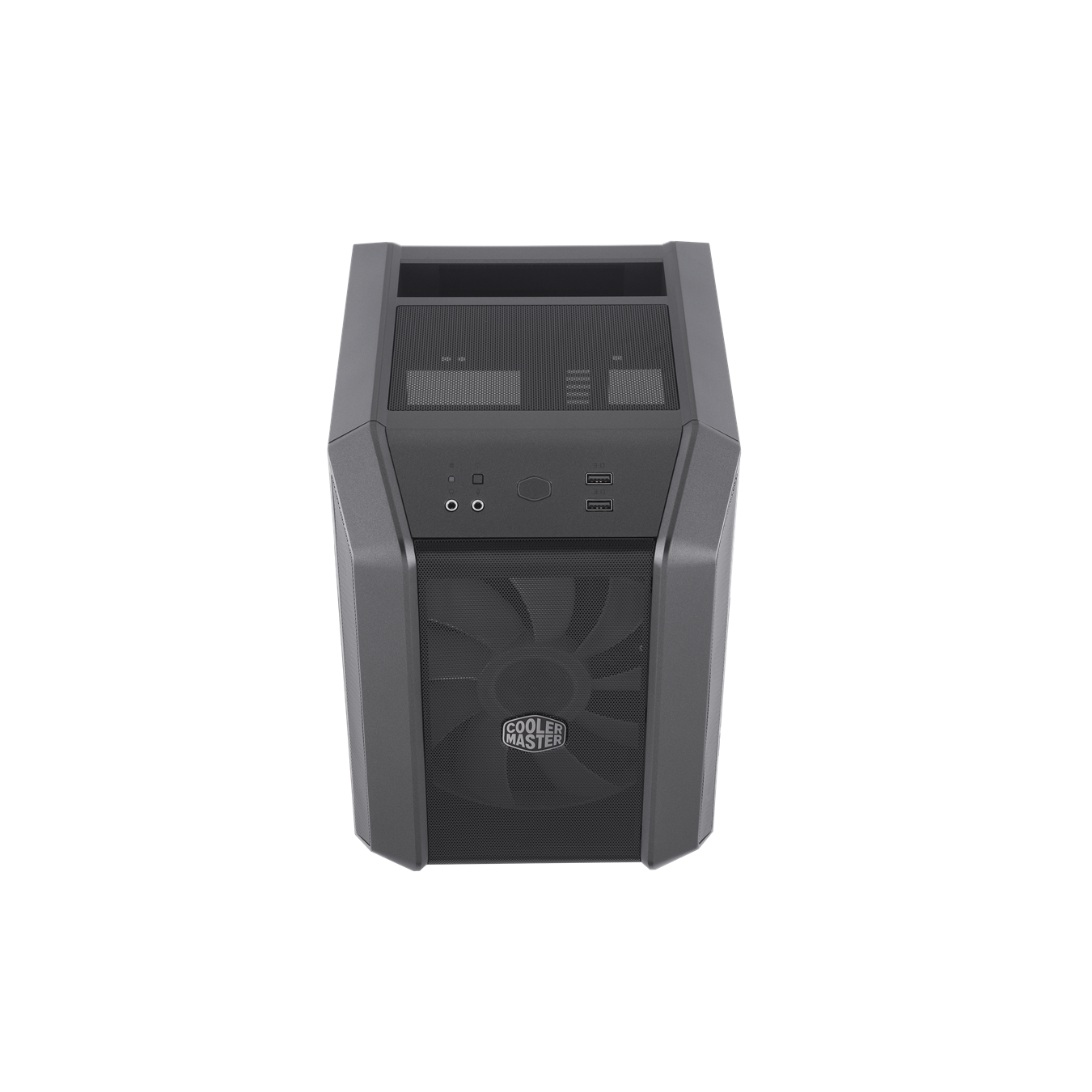

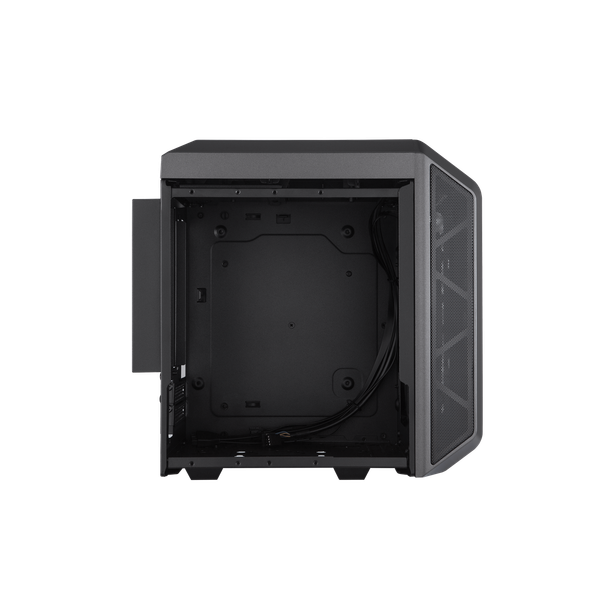

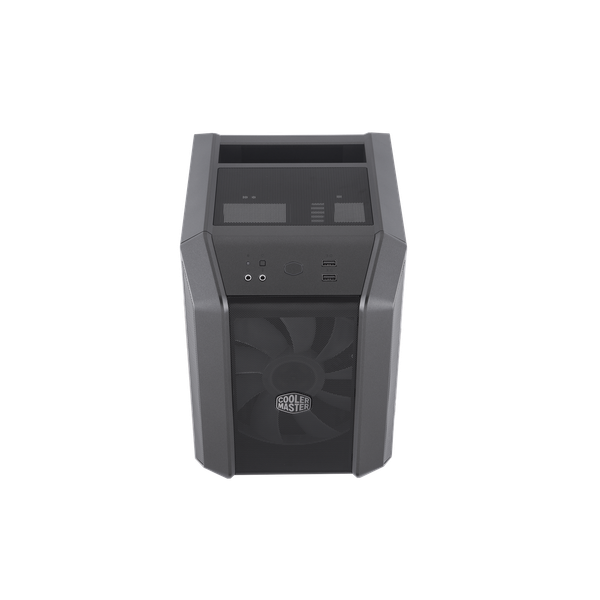

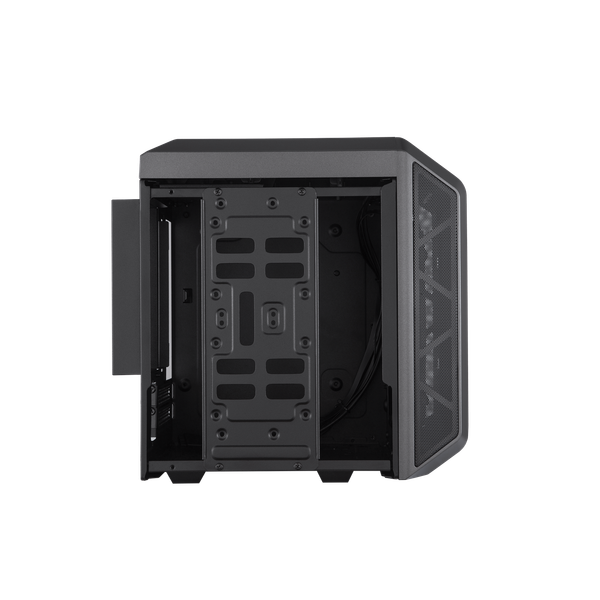

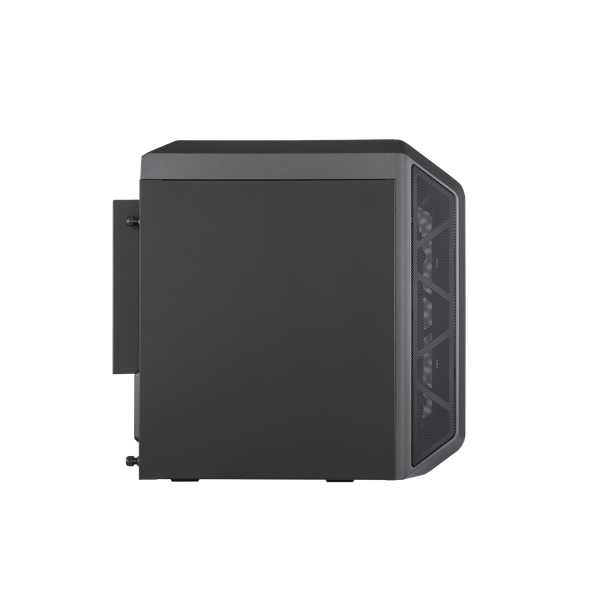

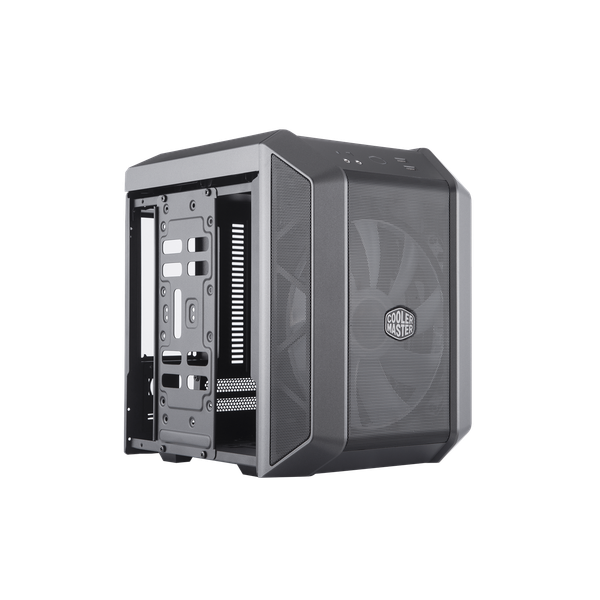

Case Cooler Master MASTERCASE H100


COMPACT MINI-ITX
A highly compact layout efficiently uses space to keep dimensions minimized.
FINE MESH VENTILATION
The entire front panel and part of the top panel features Cooler Master’s signature Fine Mesh, proven to filter out dust, provide unrestricted ventilation, and makes the cleaning and maintenance process more efficient.


200MM RGB FAN
Even with compact dimensions, the MasterCase H100 features the H-Series’ iconic 200mm RGB fan.

ATX POWER SUPPLY
Full-sized ATX power supplies are supported to improve hardware compatibility and ensure efficient power to the system.

BUILT-IN HANDLE
A handle is built into the top panel for added portability and on-the-go gaming.
RGB LIGHTING CONTROL
One RGB controller is included in the accessory pack. Lighting can also be controlled through the reset button if the motherboard does not support RGB control.


COOLING SUPPORT
Fans
Radiators
Front:
120 / 140 / 200mm x 1 Fan
120 / 140 / 200 Radiator
*Mini-DTX may impact configuration options
STORAGE SUPPORT
3.5” /
2.5” Combo x 1
2.5” SSD x 4 (3 + 1 Combo)

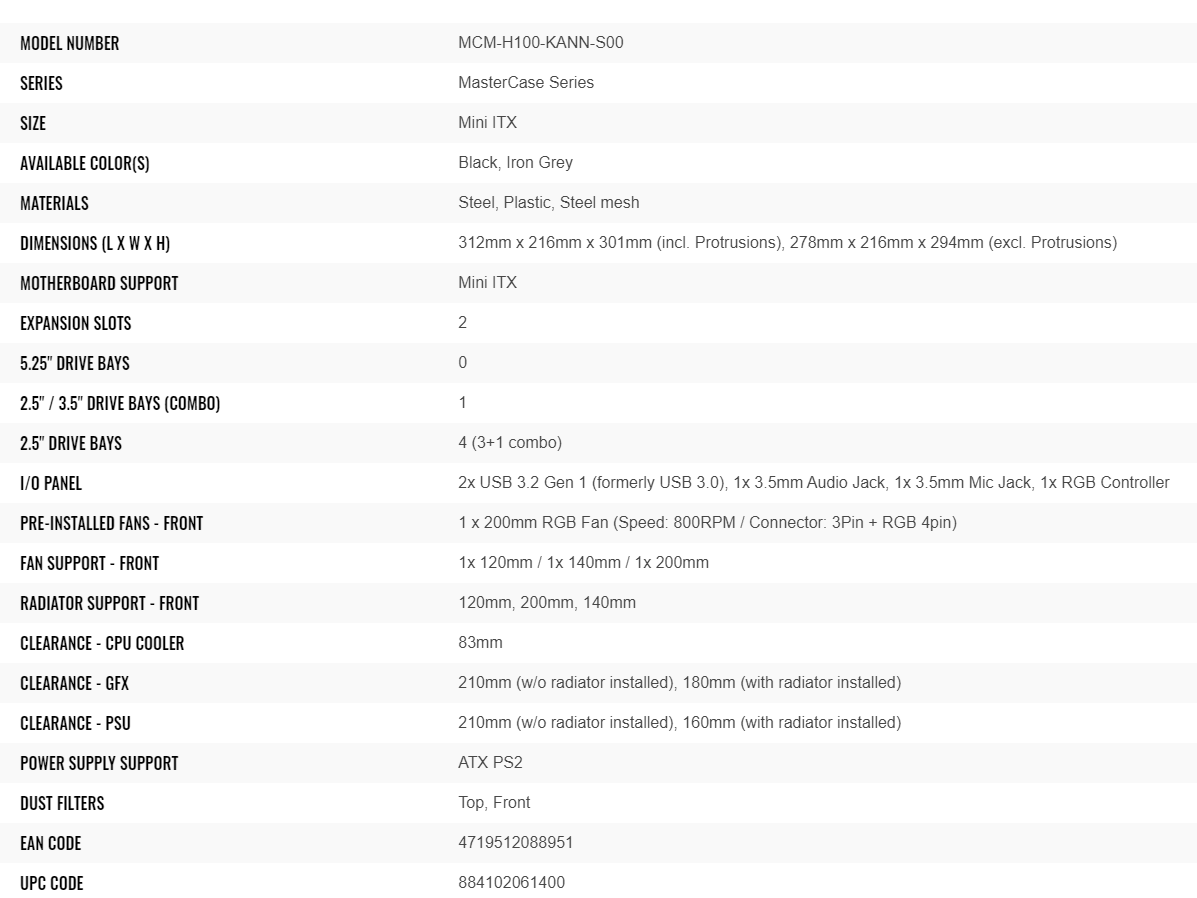

COMPONENT CLEARANCES
CPU Cooler: | 83mm |
Power Supply: | 210mm (without radiator) 160mm (with radiator) |
Graphics Card: | 210mm (without radiator) 180mm (with radiator) |
