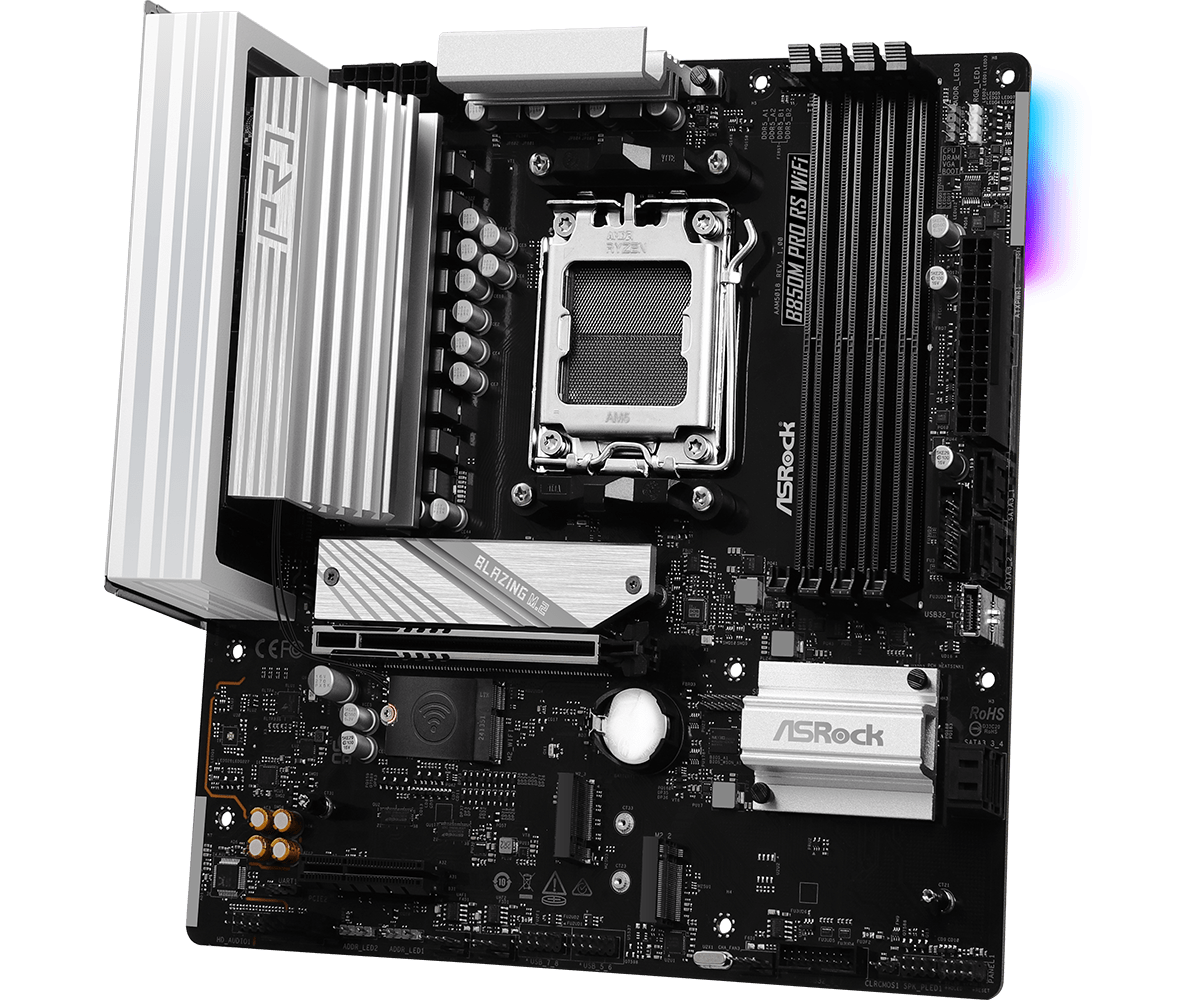

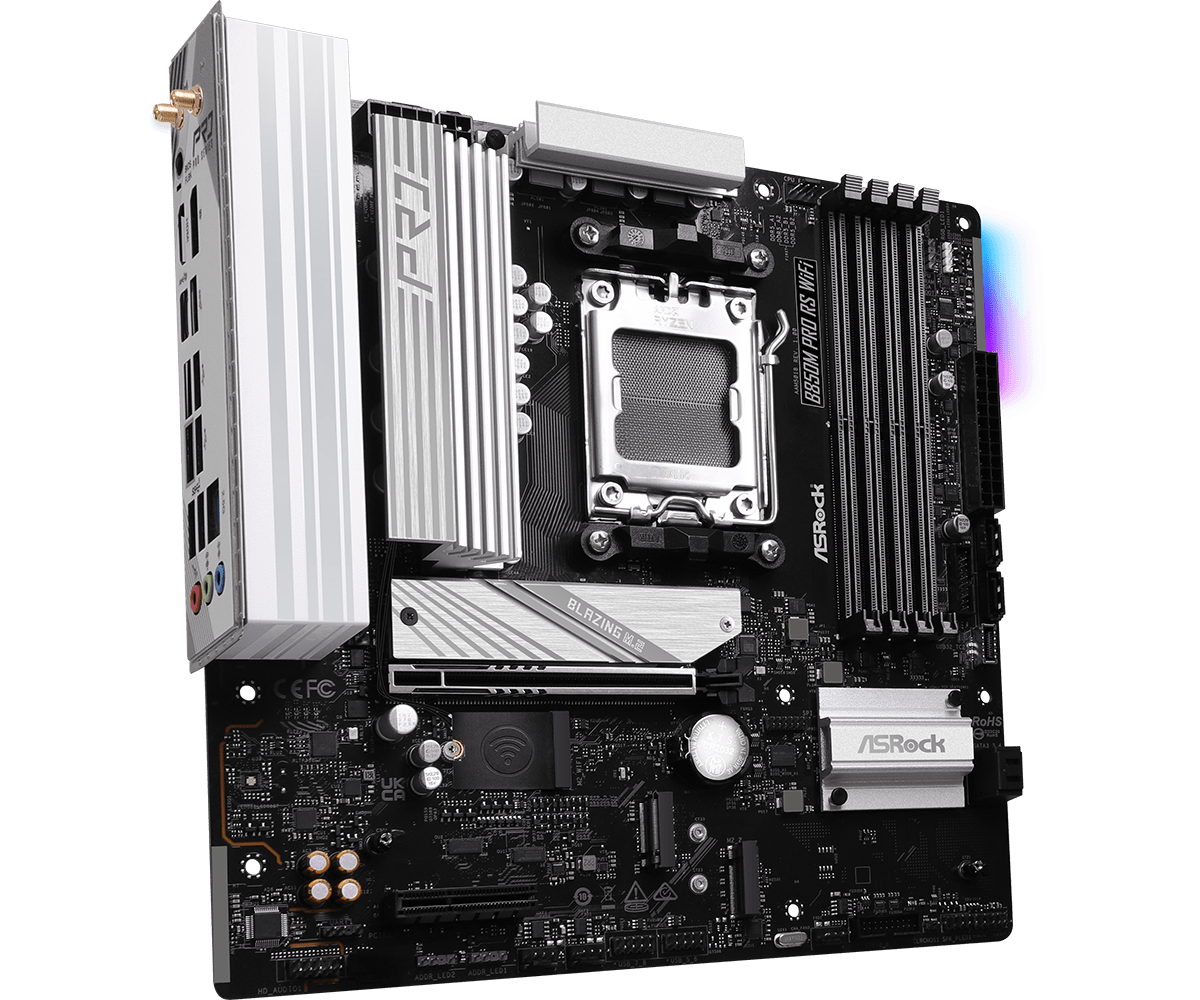

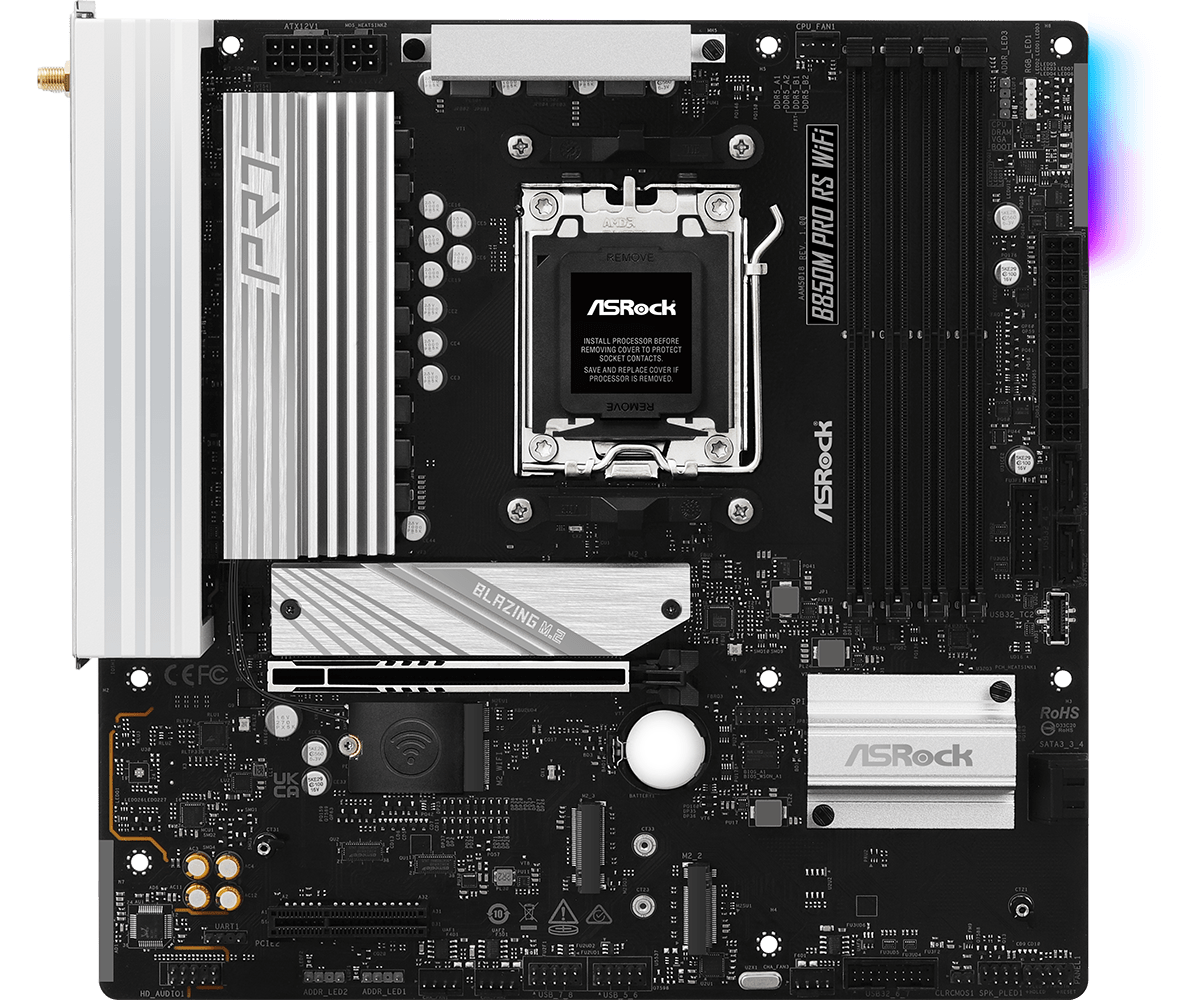

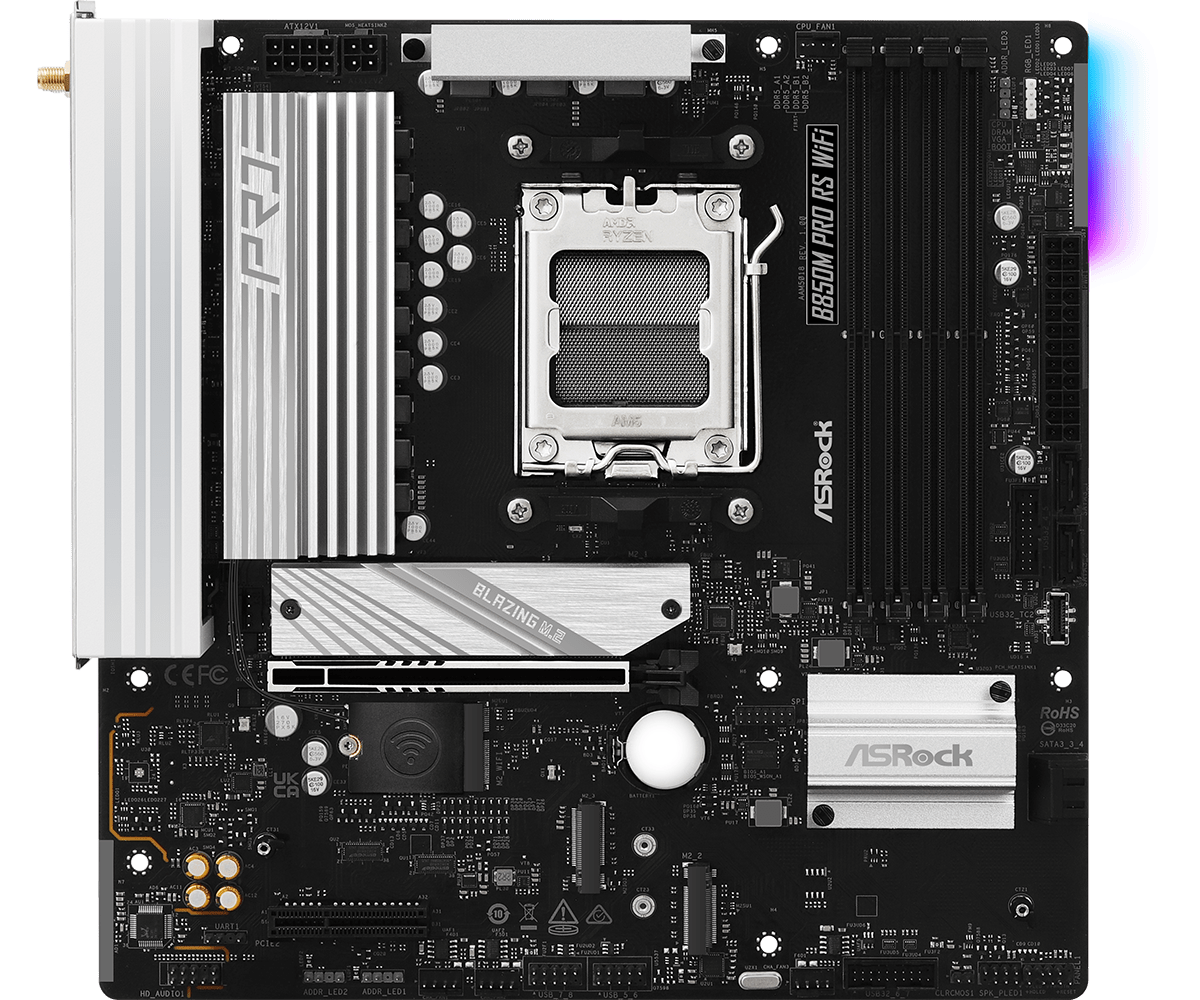

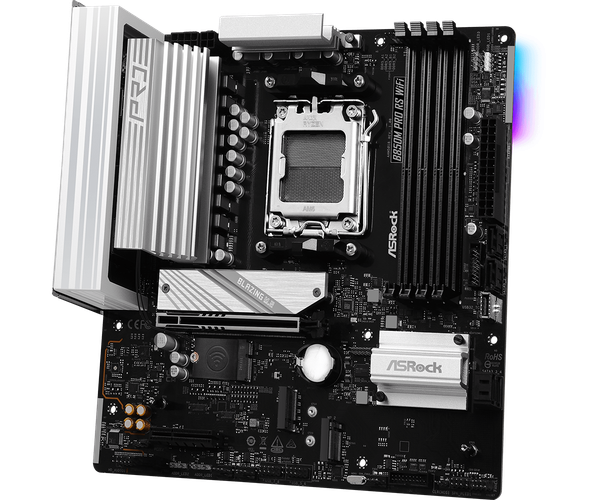

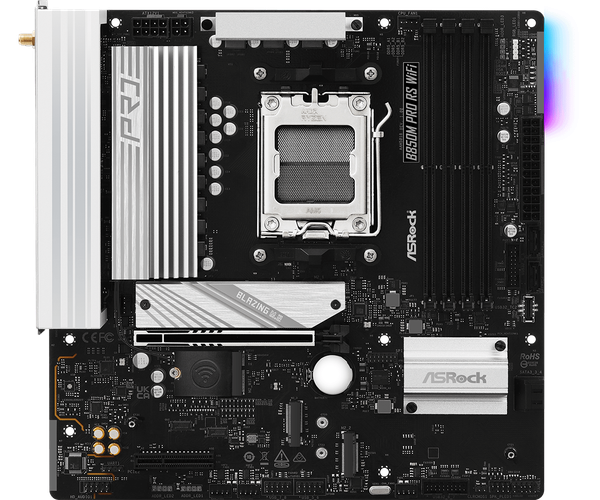

Mainboard - Asrock B850M Pro RS WIFI

Hãng sản xuất

Asrock

Model

B850M Pro RS WIFI

Hỗ trợ CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

AMD B850

Bộ nhớ RAM

Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
Max. capacity of system memory: 256GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

Đồ họa

1 x DisplayPort 1.4
1 x HDMI™ port 2.1

Khe cắm mở rộng

CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
- 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode

Chipset:
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Khe lưu trữ

CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode

Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 4 x SATA3 6.0 Gb/s Connectors

Ethernet

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control

Wireless & Bluetooth

- 802.11axe Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax/axe
- Supports Dual-Band 2x2 with extended 6GHz band support
- 2 antennas to support 2 (Transmit) x 2 (Receive) persity technology
- Supports Bluetooth 5.2
- Supports MU-MIMO

USB

CPU:
- 1 x USB 3.2 Gen2 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear)

Chipset:
- 1 x USB 3.2 Gen1 Type-C (Front)
- 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)

Âm Thanh

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio

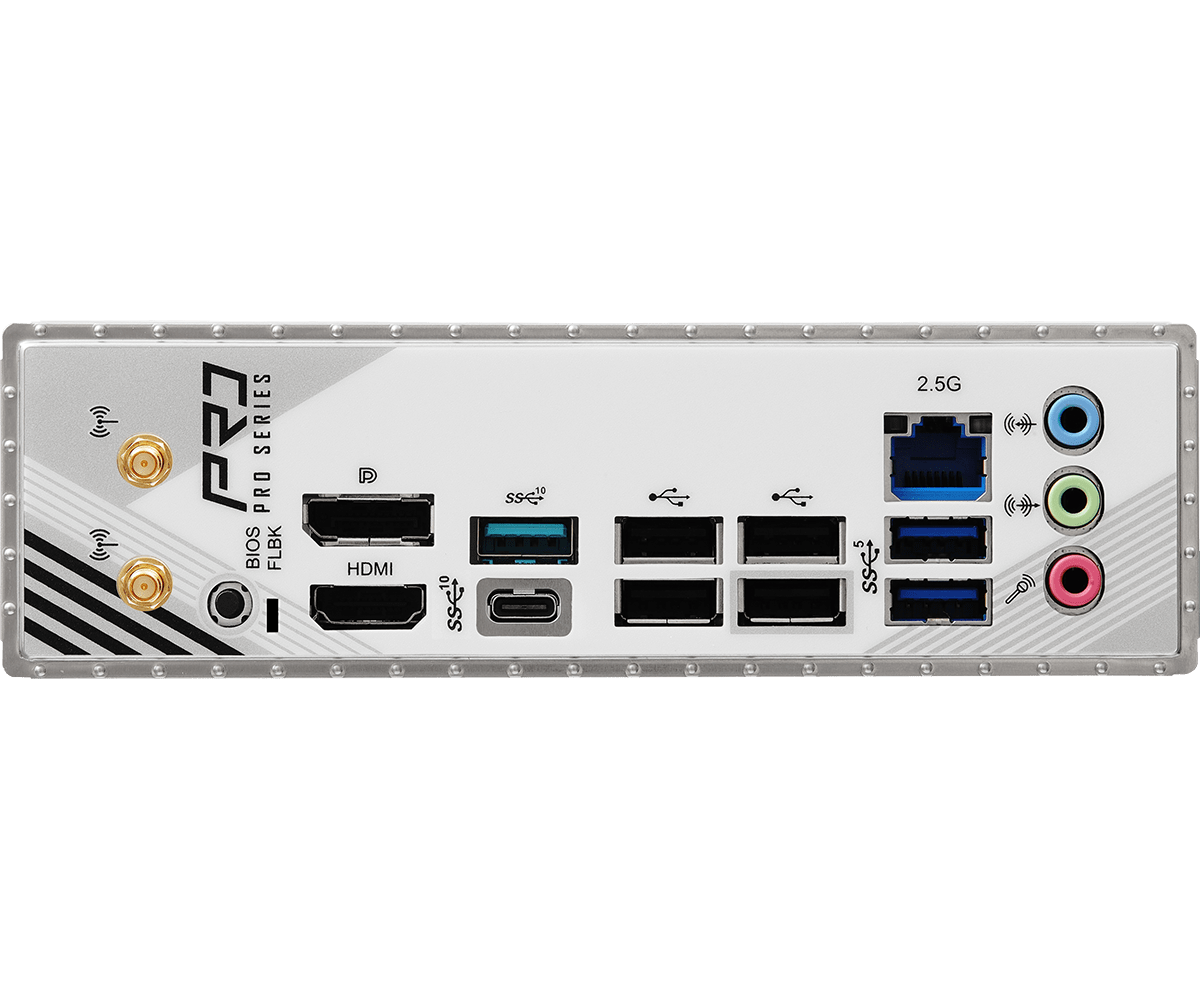

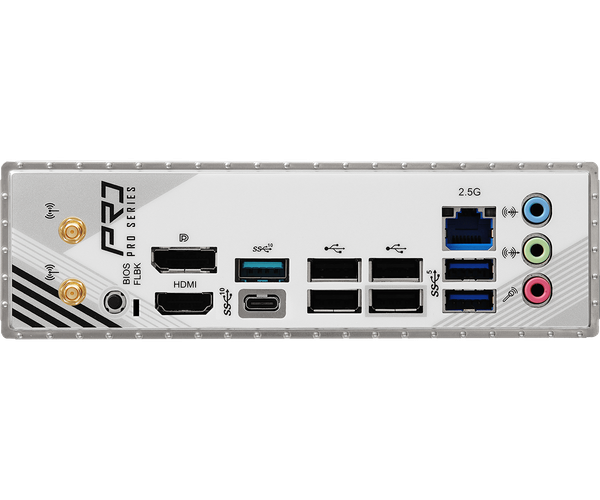

Cổng I/O mặt sau

- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C Port
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone

Đầu nối I/O nội bộ

- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header
- 3 x Addressable LED Headers
- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
- 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header

Các tính năng đặc biệt

Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5

Rock-Solid Durability
- 8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC
- Pre-Installed I/O Shield

Ultrafast Connectivity
- 2.5G LAN, 802.11axe Wi-Fi 6E Module

EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer EZ Troubleshooter

Tính năng phần mềm

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC

UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

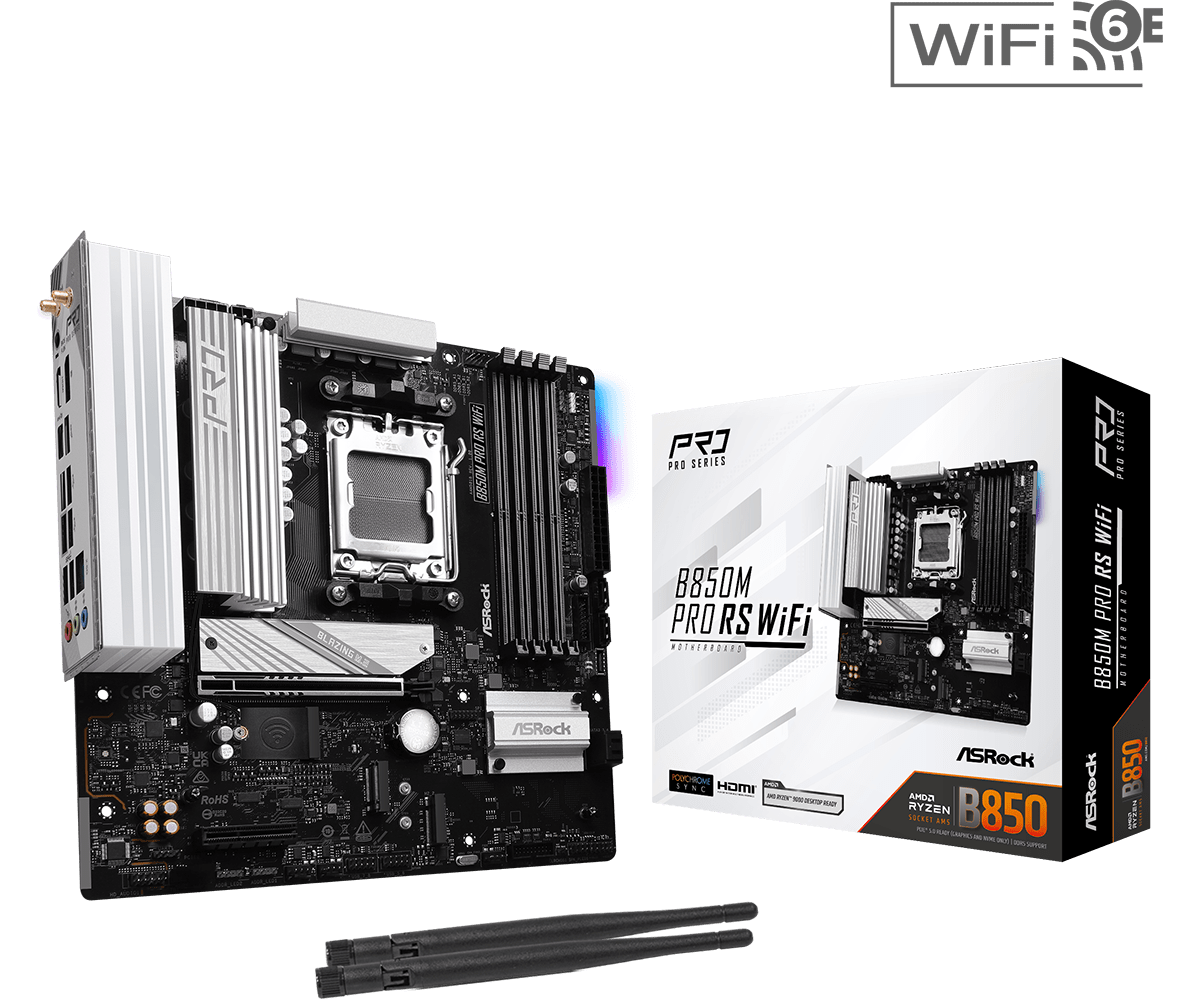

Phụ kiện đi kèm

- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas

Hệ điều hành

Windows 11, Windows 10 64-bit

Kích thước

micro-ATX From Factor (24.4 x 24.4cm)

Bảo hành

36 Tháng
