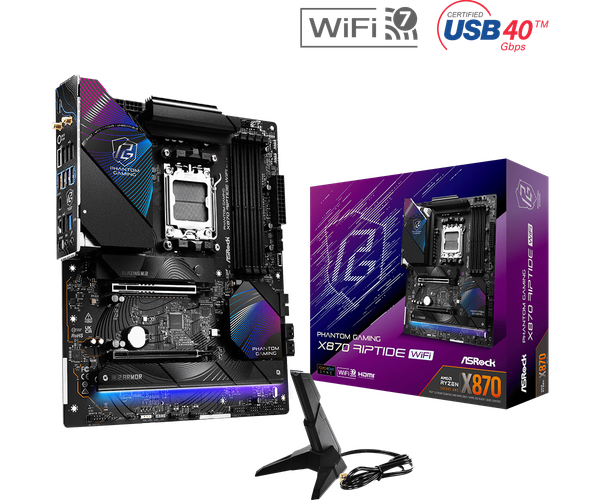

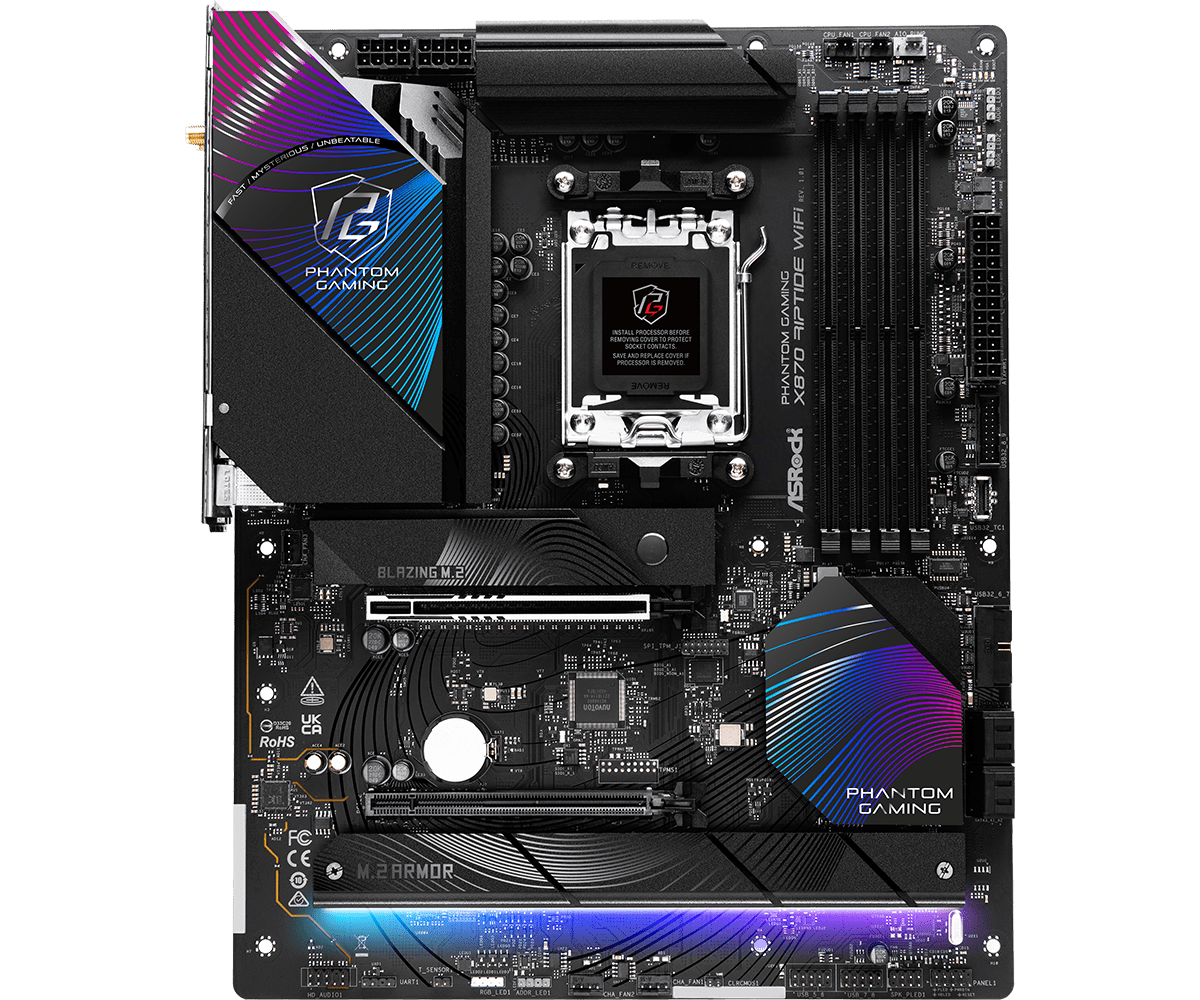

Hãng sản xuất | Asrock |

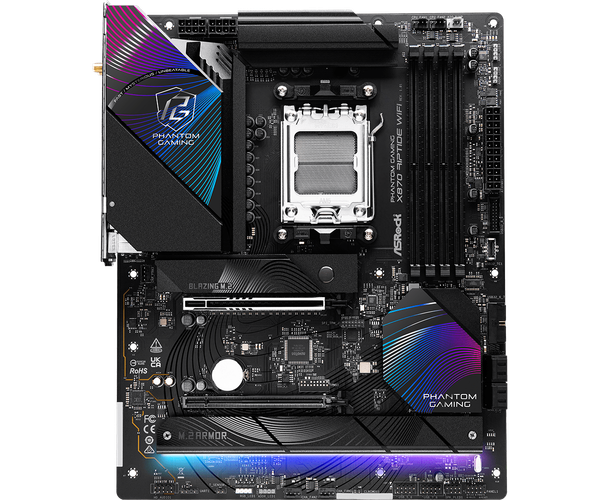

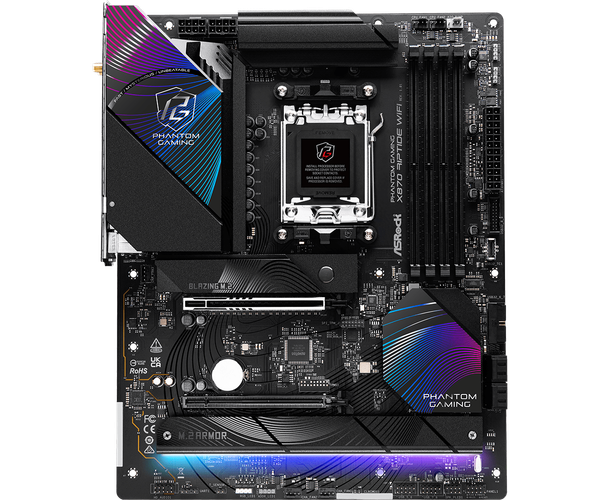

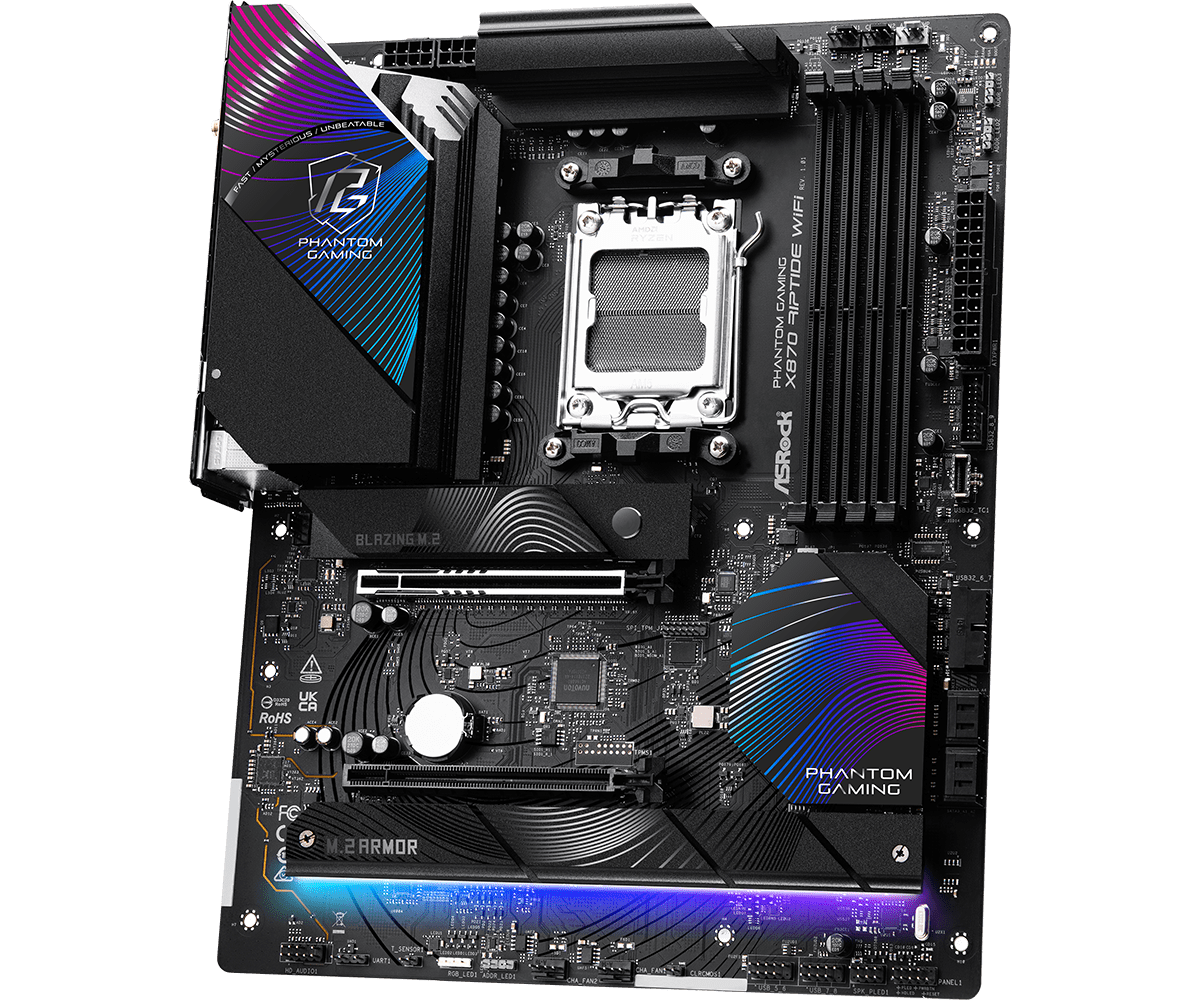

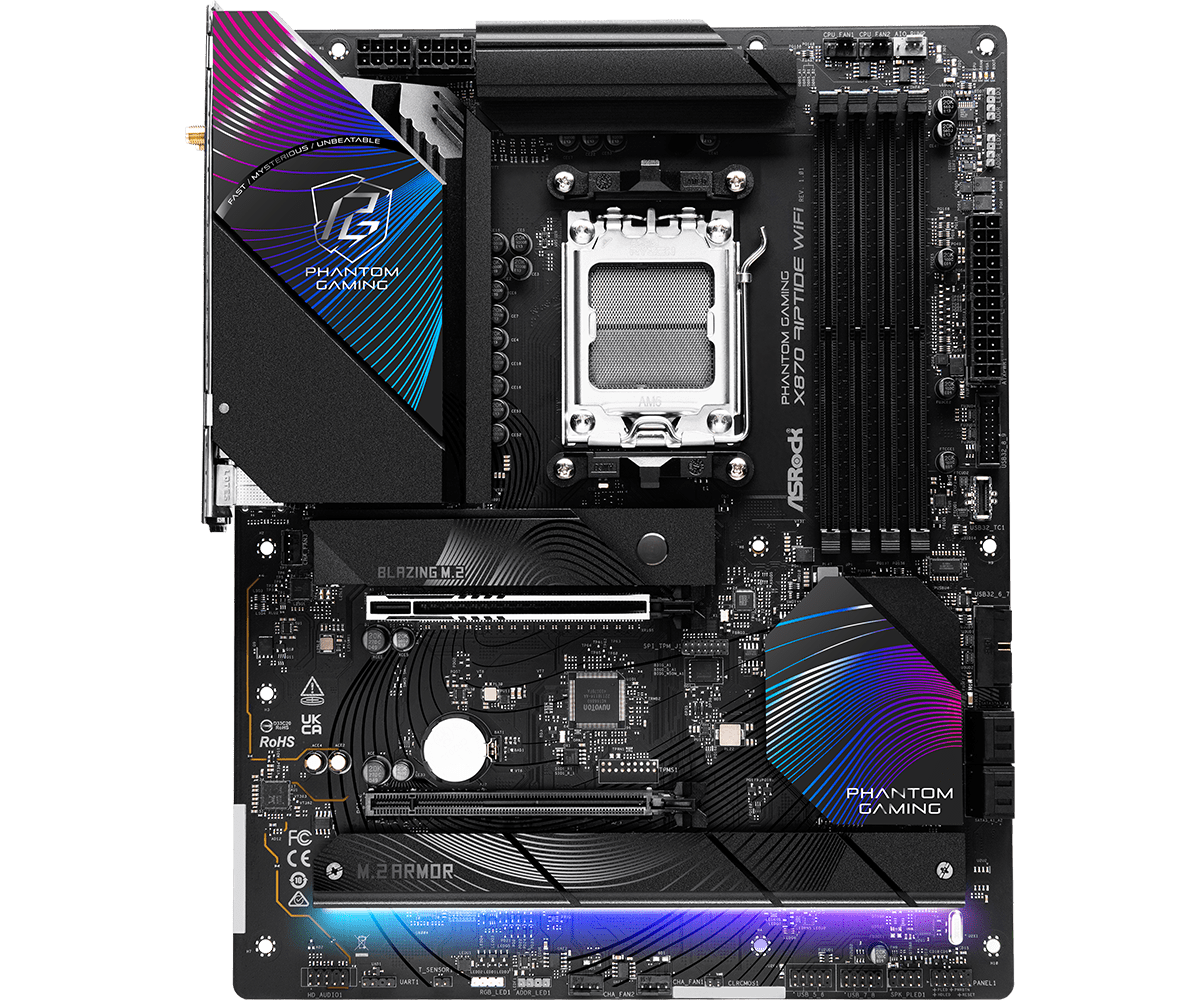

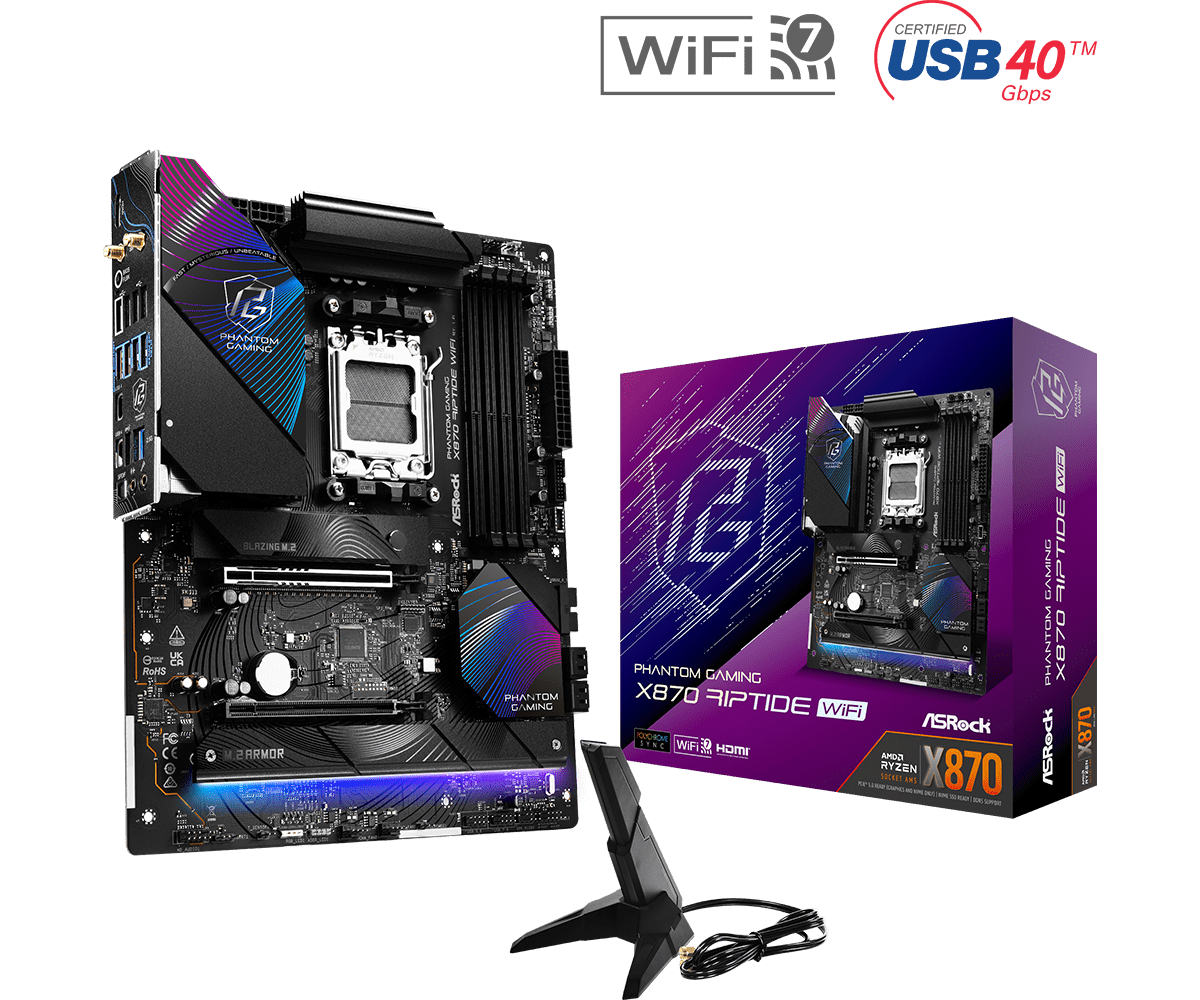

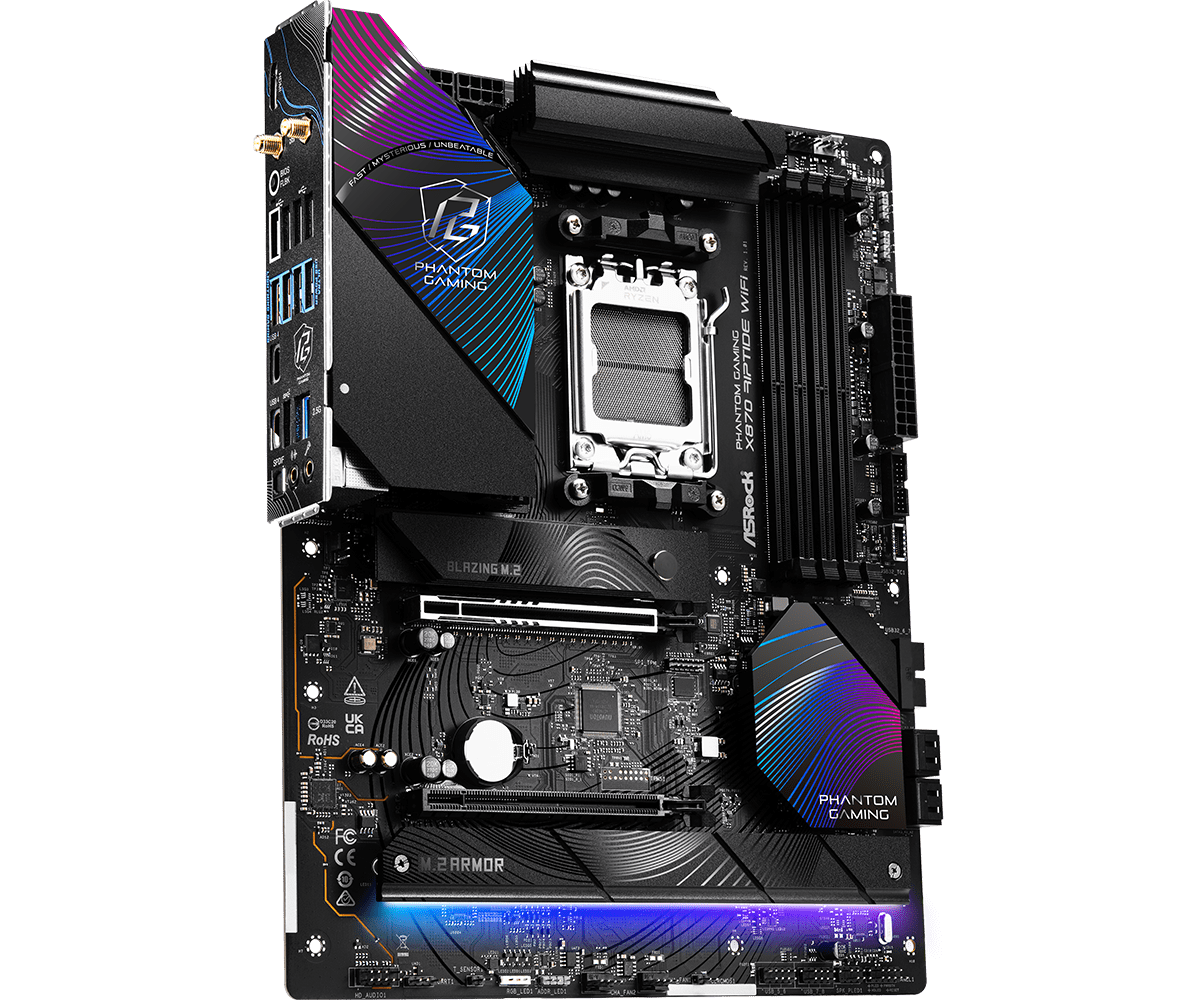

Model | PG X870 RIPTIDE WIFI |
Chipset | AMD X870 |
Hỗ trợ CPU | AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
Bộ nhớ | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)* - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
Đồ họa | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz |
Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - Inpidual PCB Layers for R/L Audio Channel - Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) - Nahimic Audio |
LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Killer E3100G - Supports Killer LAN Software |
WIFI & Bluetooth | - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 160MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) persity technology - Supports Bluetooth 5.4 - Supports MU-MIMO |
Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* ASMedia ASM1061: - 4 x SATA3 6.0 Gb/s Connectors |
USB | CPU: - 2 x USB4 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3) - 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4) - 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
Connector | - 1 x Thermistor Cable Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |

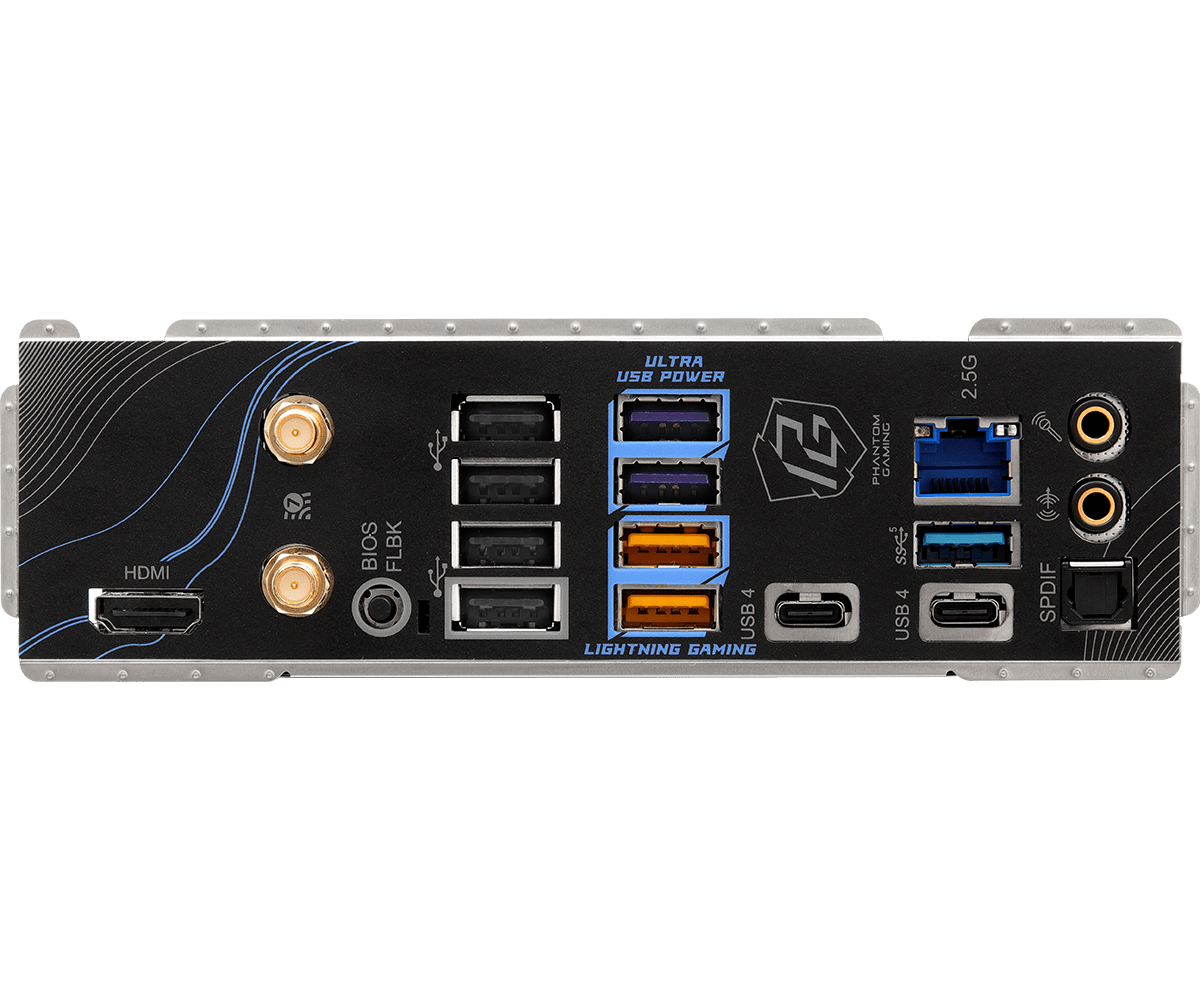

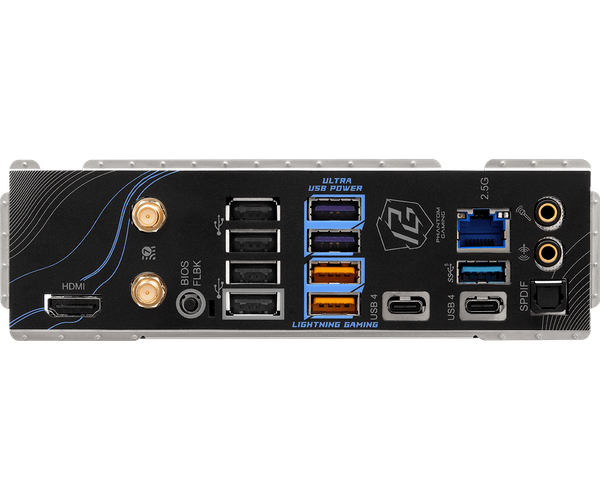

Rear Panel I/O | - 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB4 Type-C Ports (40 Gb/s) - 3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports.) - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power.) - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) |
Phụ kiện | - 2 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 1 x ARGB Splitter Cable - 1 x Thermistor Cable |
Kích thước | ATX (30.5 cm x 24.4 cm) |
OS | Microsoft Windows® 10 64-bit / 11 64-bit |
Bảo hành | 36 Tháng |
