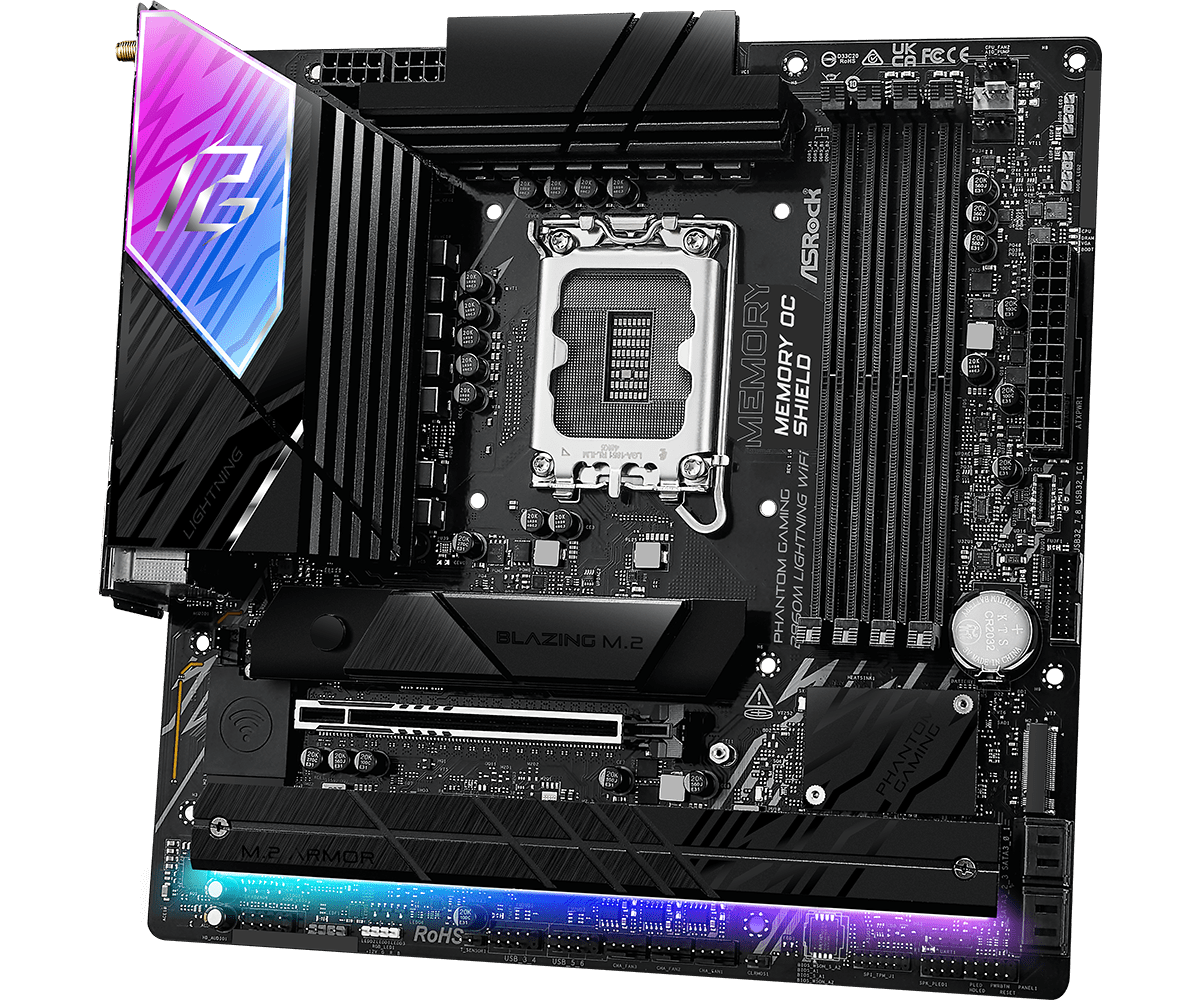

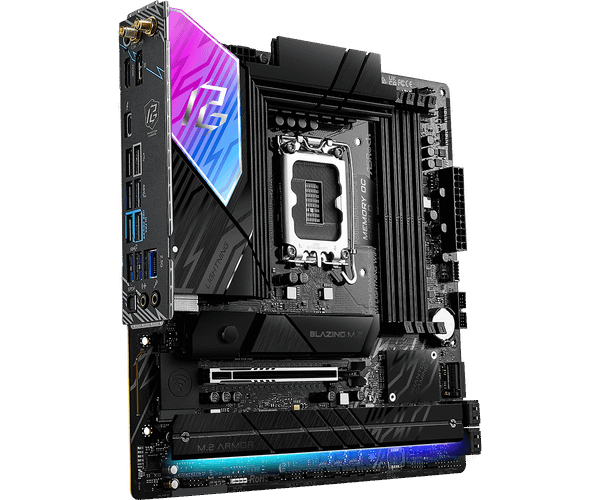

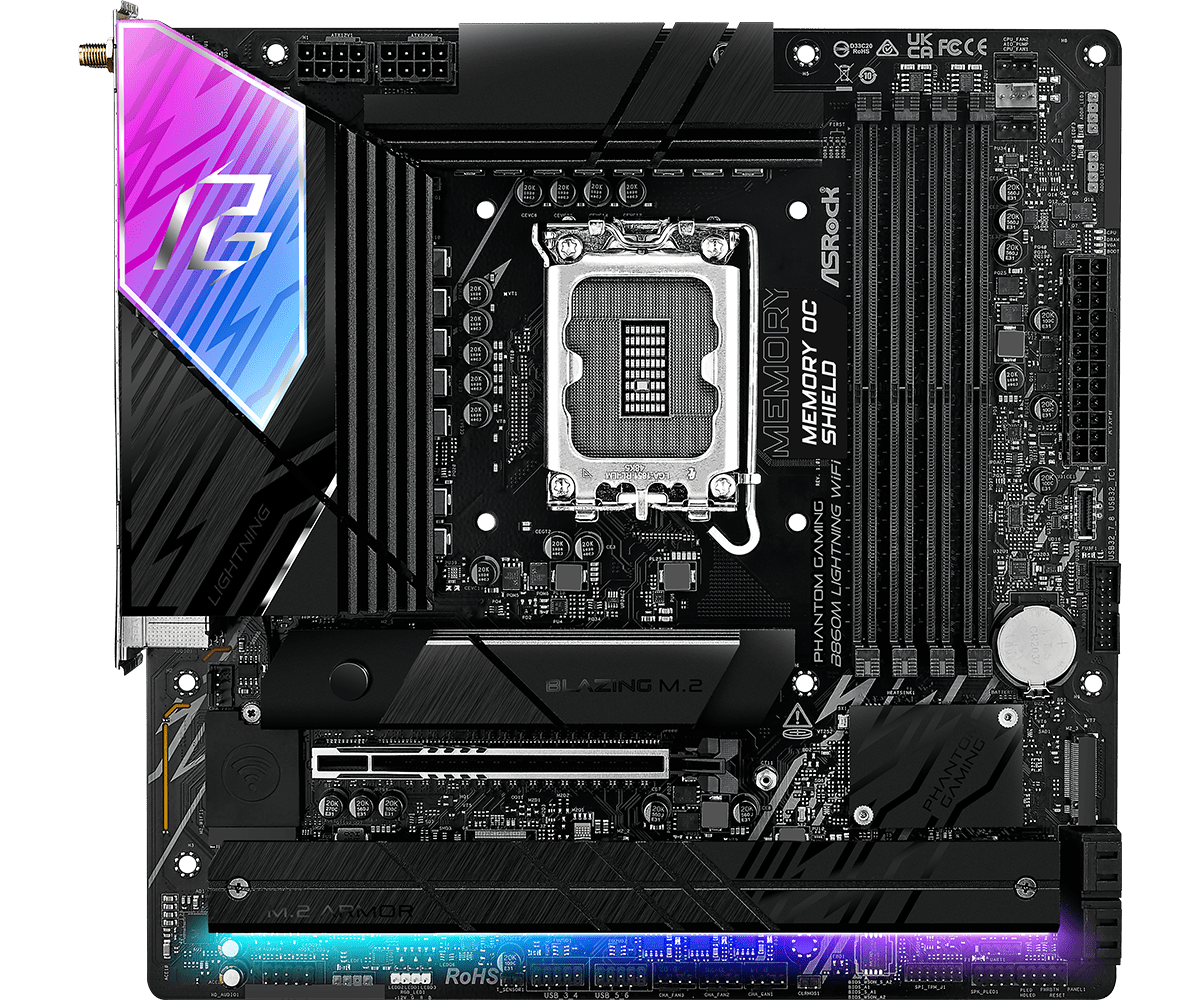

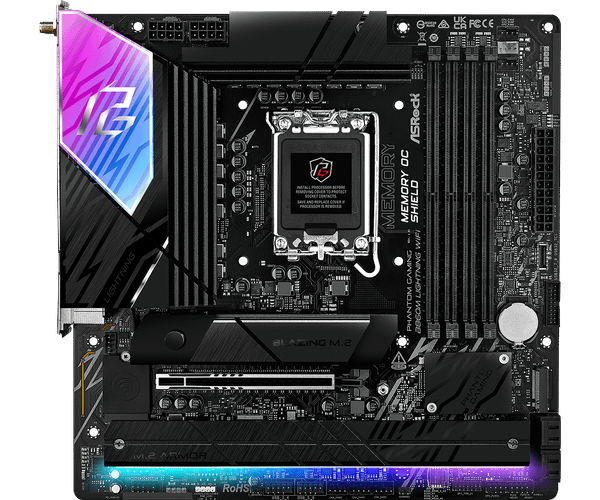

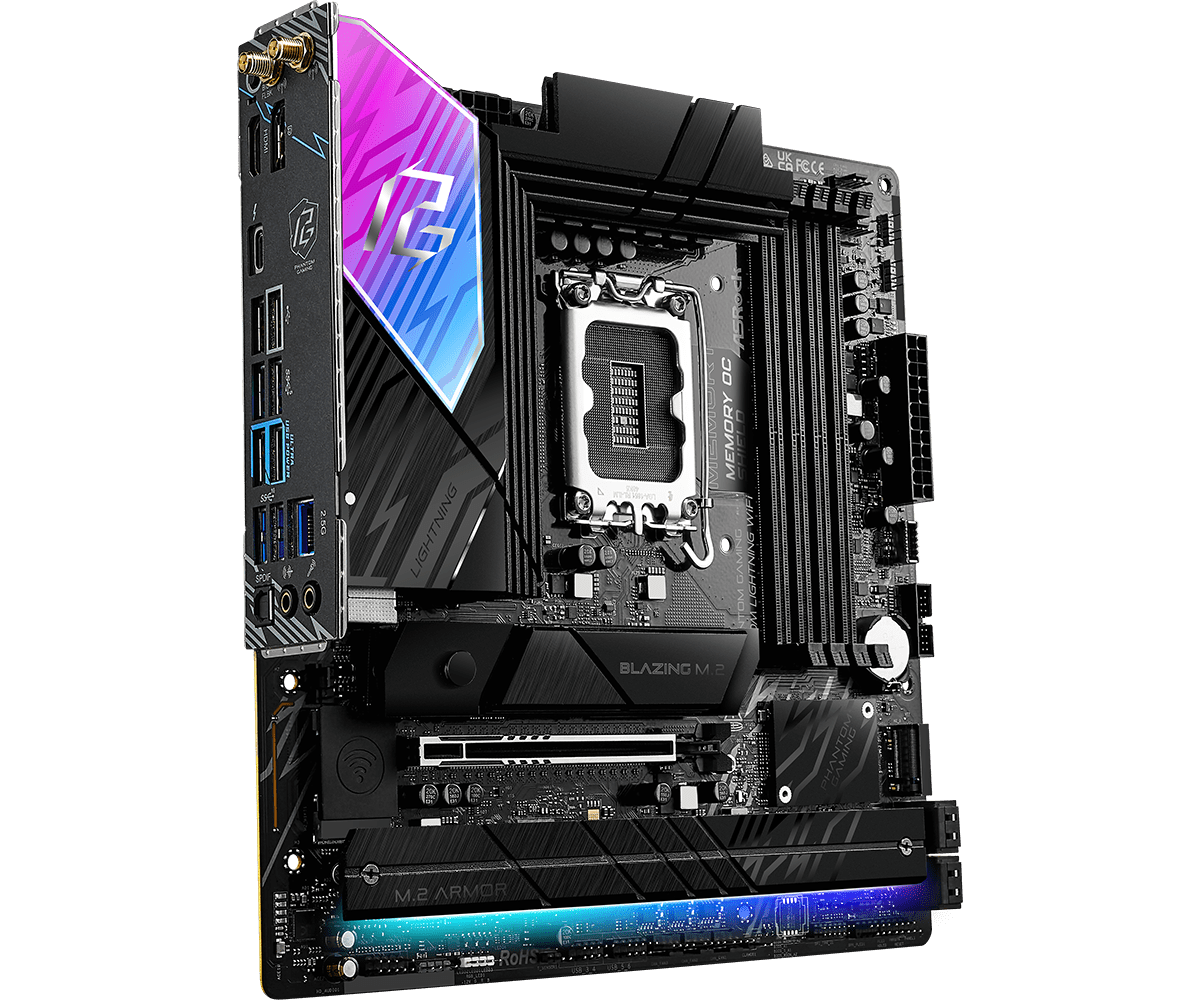

Mainboard - Asrock PHANTOM GAMING B860M Lightning WiFi

Hãng sản xuất

Asrock

Model

PHANTOM GAMING B860M Lightning WiFi

Hỗ trợ CPU

Intel® Core™ Ultra Processors (Series 2), LGA1851

Chipset

Intel B860

Bộ nhớ RAM

Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)
Supports Clocked Unbuffered DIMM (CUDIMM)
Max. capacity of system memory: 256GB
Supports Intel® Extreme Memory Profile (XMP) 3.0x

Đồ họa

1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
1 x Intel Thunderbolt 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Khe cắm mở rộng

1 x PCIe 5.0 x16 slot
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

Khe lưu trữ

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
4 x SATA 6Gb/s ports

LAN

2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG

Wifi & Bluetooth

802.11axe Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe
Supports Dual-Band 2x2 with extended 6GHz band support
2 antennas to support 2 (Transmit) x 2 (Receive) persity technology
Supports Bluetooth 5.3
Supports MU-MIMO
Supports Killer LAN Software
Supports Killer DoubleShot™ Pro

USB

CPU:
- 1 x Thunderbolt™ 4 Type-C (Rear)

Chipset:
- 1 x USB 3.2 Gen2 Type-C (Front)
- 2 x USB 3.2 Gen2 Type-A (Rear)
- 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)

Âm thanh

7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
Impedance Sensing on Rear Out port
Inpidual PCB Layers for R/L Audio Channel
Nahimic Audio

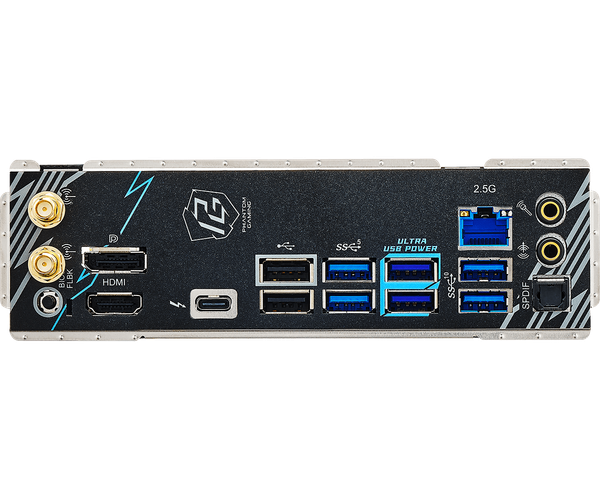

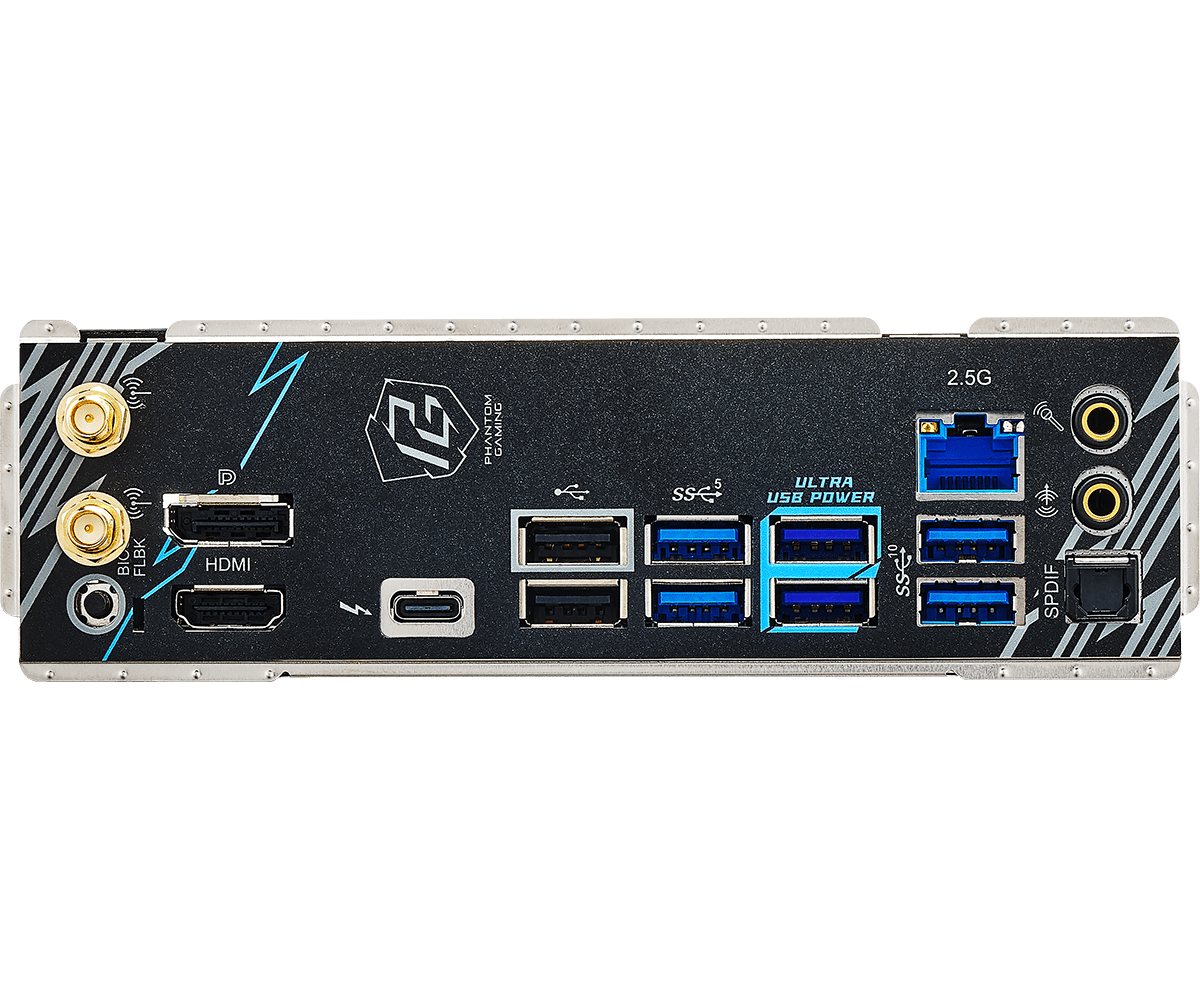

I/O mặt sau

2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)
2 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
4 x USB 3.2 Gen1 Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)

I/O nội bộ

1 x Thermistor Cable Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header

Tính năng phần mềm

Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- Killer Control Center
- ASRock Polychrome SYNC

UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

Bios

256Mb AMI UEFI Legal BIOS with GUI support

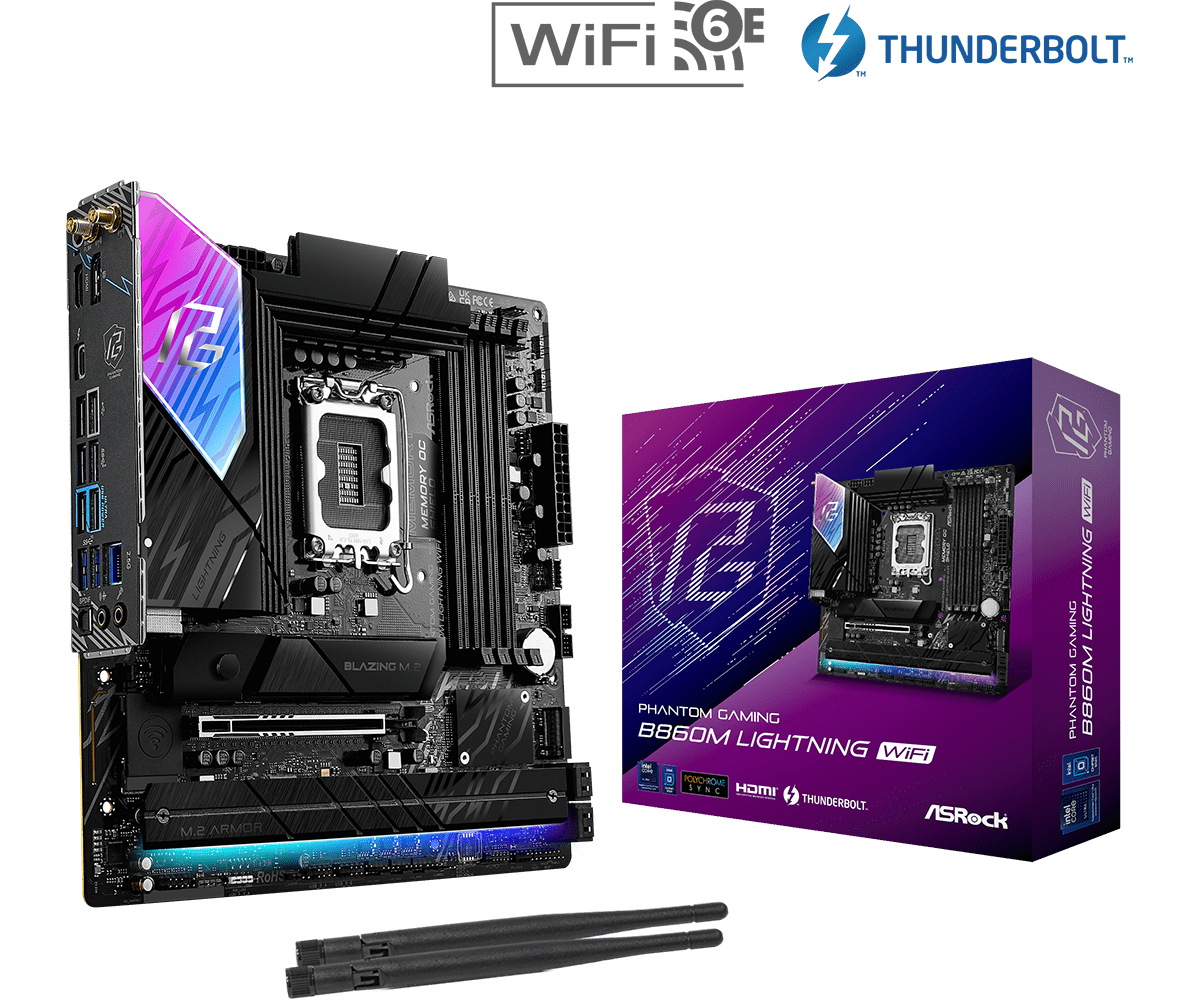

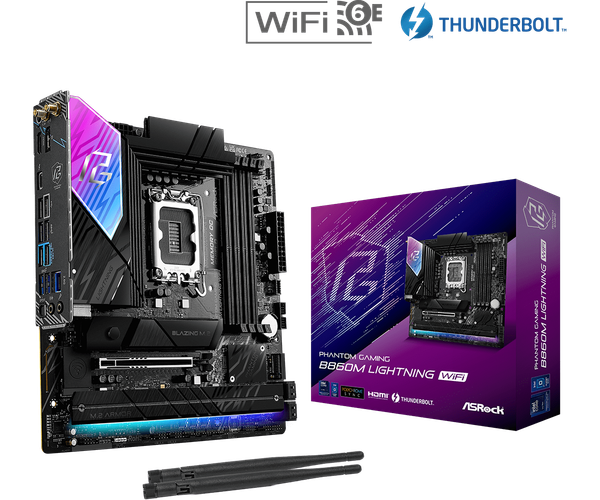

Phụ kiện đi kèm

2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
1 x Thermistor Cable
1 x Screw for M.2 Socket

OS

Windows 11 64-bit

Kích thước

micro-ATX (24.4cm x 24.4cm)

Bảo hành

36 Tháng
