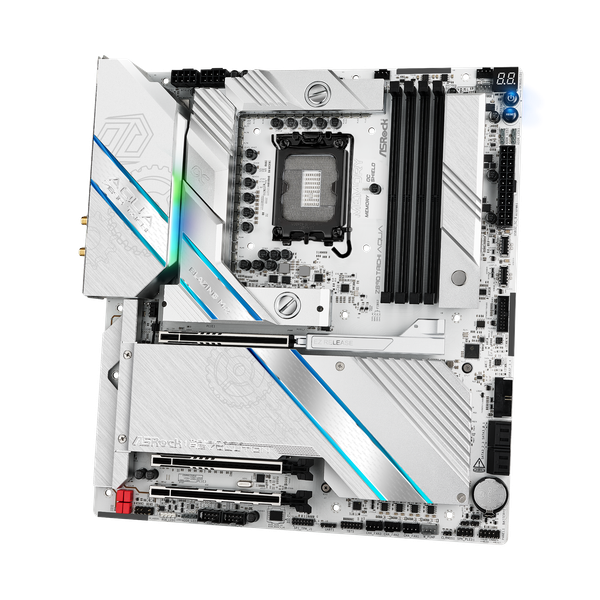

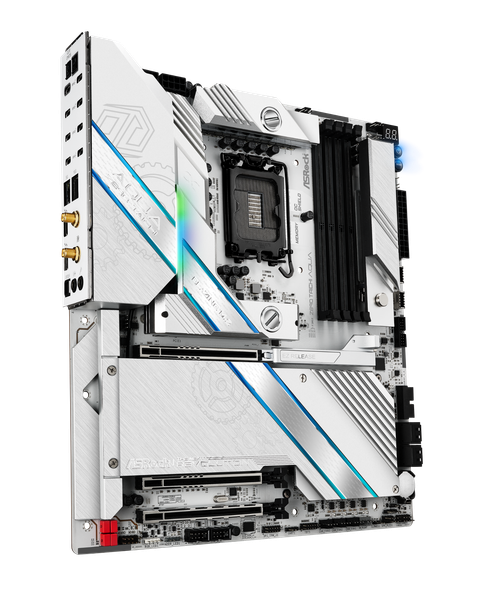

Hãng sản xuất | Asrock |

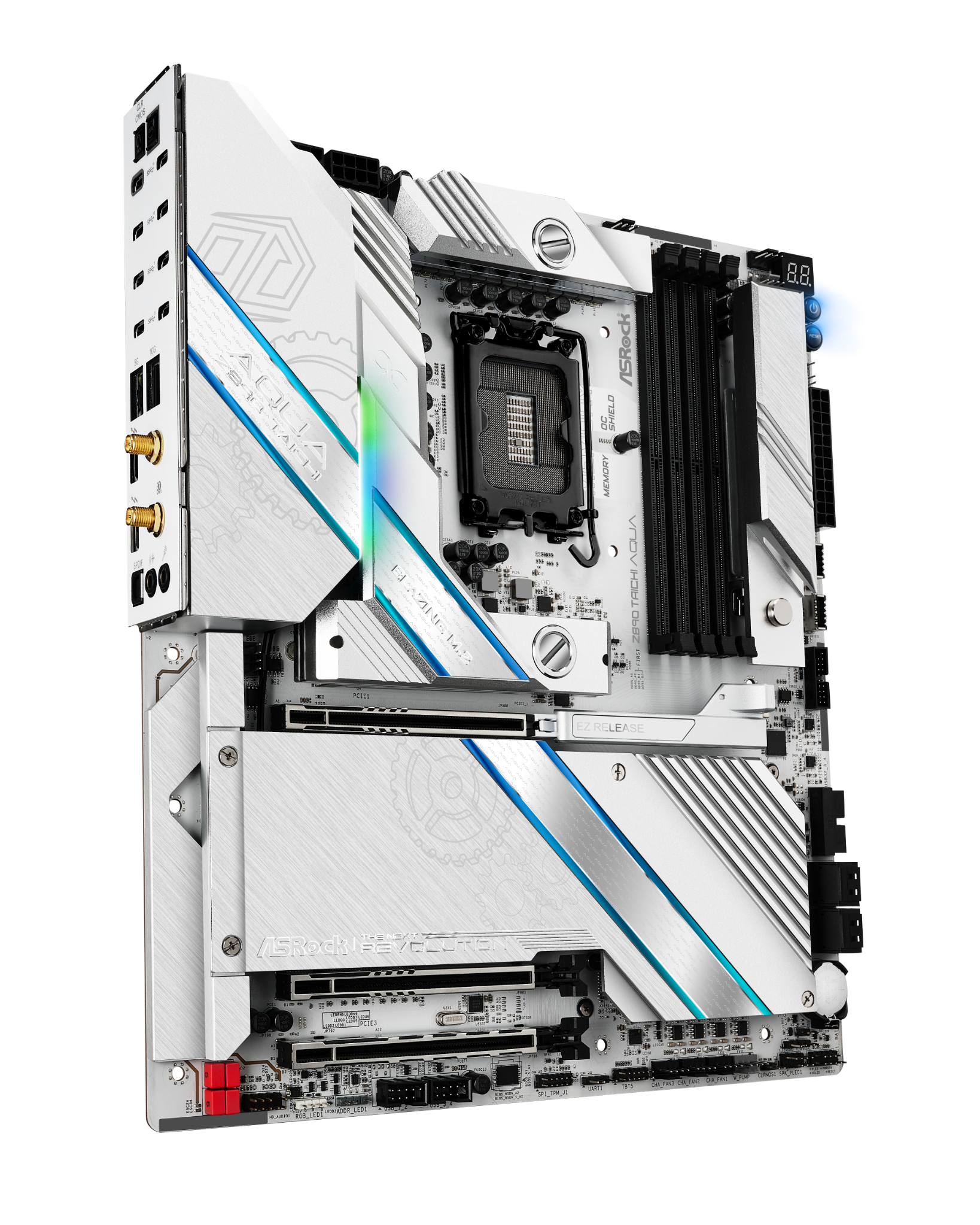

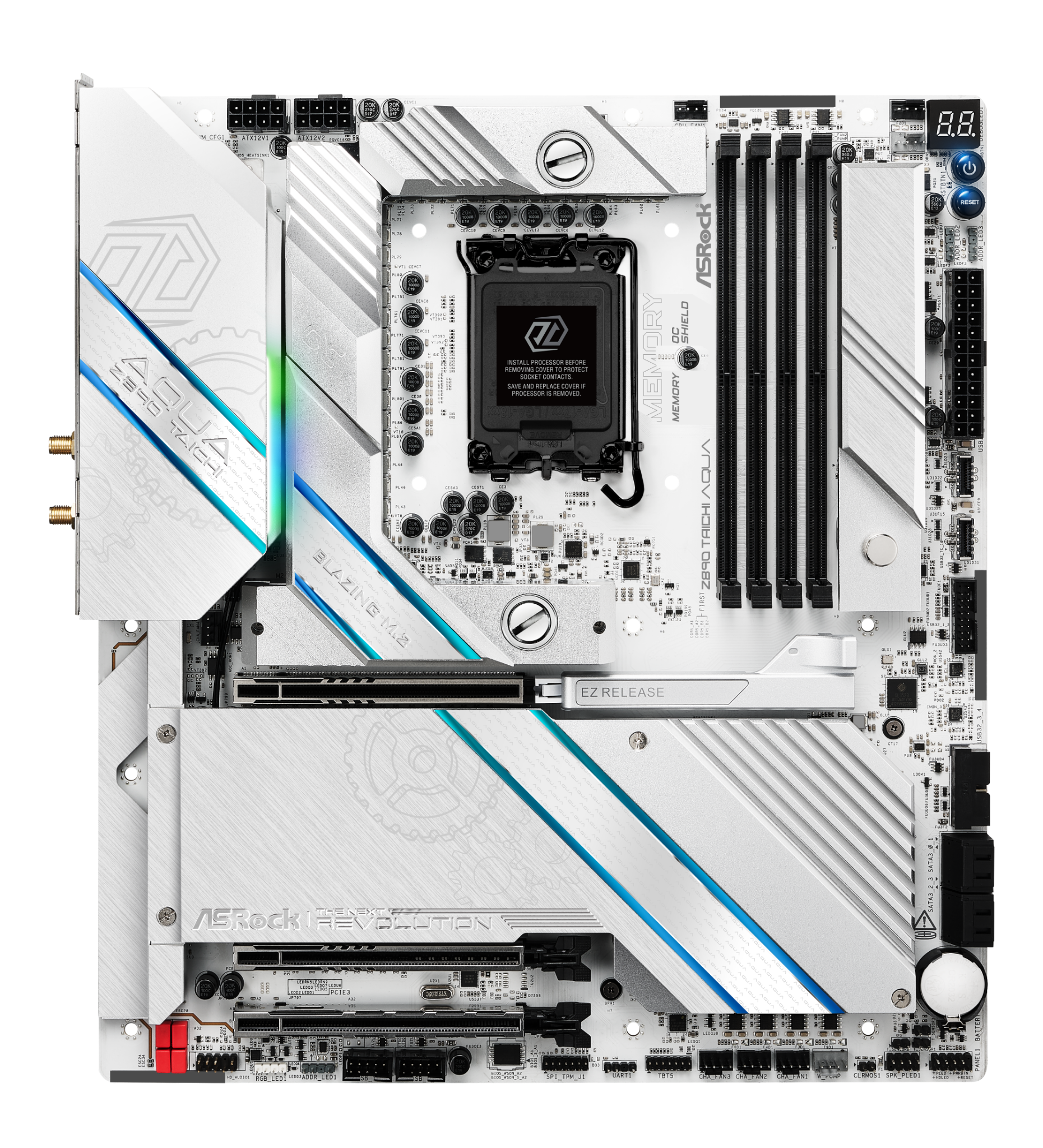

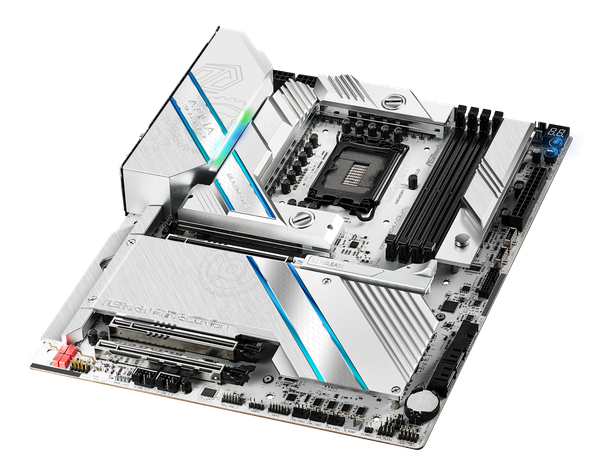

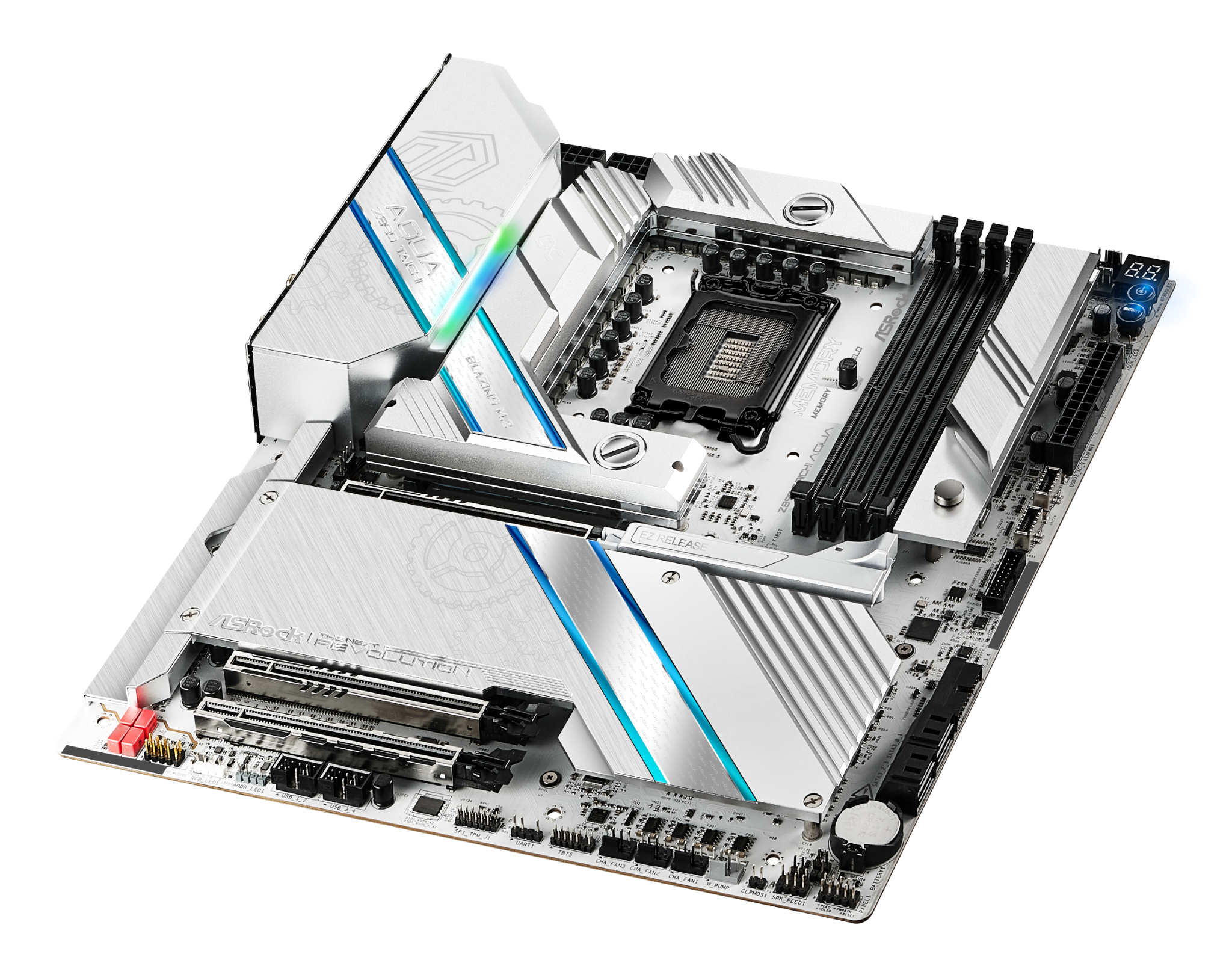

Model | Z890 Taichi AQUA |
Chipset | Intel® Z890 |
CPU | - Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT) - Integrated NPU for dedicated AI acceleration - Supports ASRock Hyper BCLK Engine |
Bộ nhớ RAM | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 9200MHz+(OC)* - Supports Clocked Unbuffered DIMM (CUDIMM) - Max. capacity of system memory: 256GB - Supports Intel® Extreme Memory Profile (XMP) 3.0x *1DPC 1R Up to 9200+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5800+ MHz (OC), 4400 MHz Natively. |
BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
Card đồ họa | - Intel® Xe LPG Graphics Architecture - 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
Card âm thanh | - 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - WIMA Audio Capacitors (For Front Outputs) - ESS SABRE9219 DAC for Front Panel Audio (130dB SNR) - Inpidual PCB Layers for R/L Audio Channel - Impedance Sensing on Rear Out port - Nahimic Audio |
LAN | 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113) - Support Wake-On-LAN - Support PXE 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126) |
Wifi & Bluetooth | - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 320MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) persity technology - Supports Bluetooth 5.4 - Supports MU-MIMO - Supports Killer LAN Software |
Khe cắm | CPU: - 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slots (PCIE1 and PCIE2) |
Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks If M2_2 is occupied, PCIE1 will downgrade to x8 mode and PCIE2 will downgrade to x4 mode. |
USB | CPU: - 2 x Thunderbolt™ 4 Type-C (Rear) Chipset: - 2 x USB 3.2 Gen2x2 Type-C (Front) - 4 x USB 3.2 Gen2 Type-C (Rear) - 4 x USB 3.2 Gen1 Type-A (Front) - 4 x USB 3.2 Gen1 Type-C (Rear) - 4 x USB 2.0 (Front) |
Connector | - 3 x Thermistor Cable Headers - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 2 x Front Panel Type C USB 3.2 Gen2x2 Headers (20 Gb/s) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED |

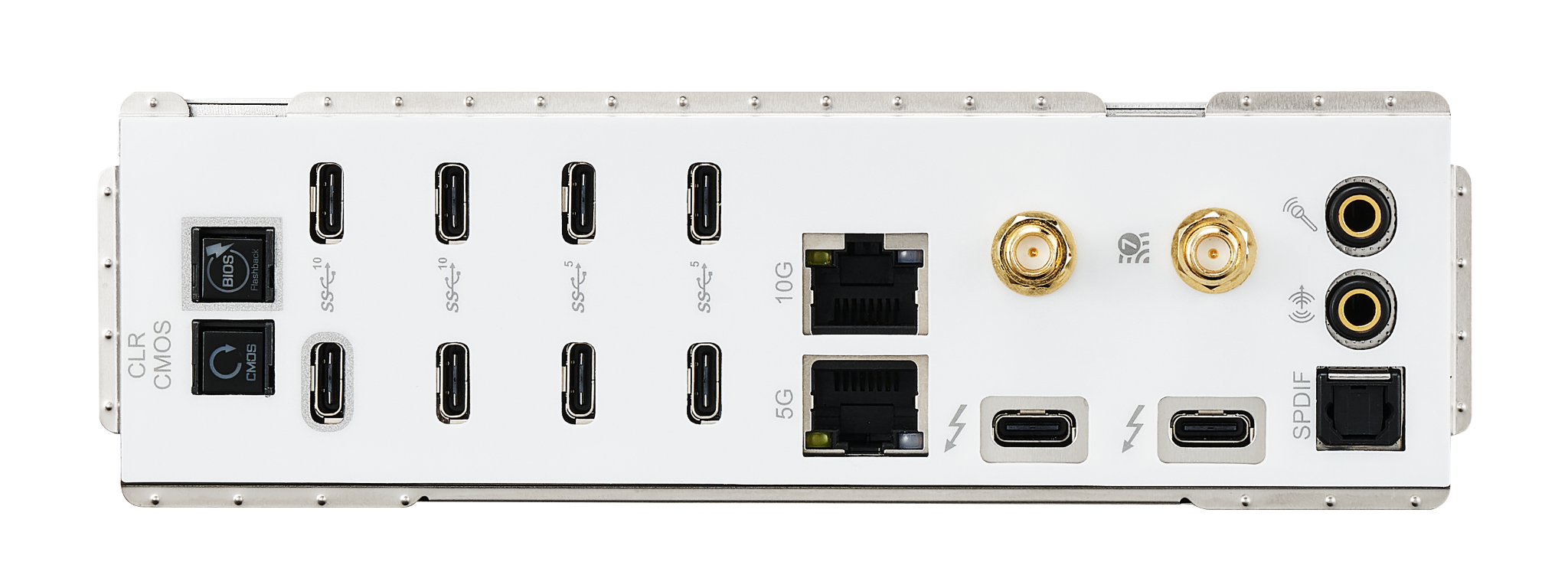

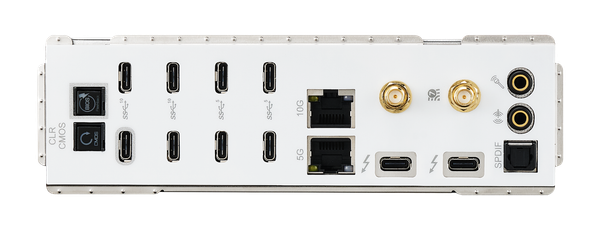

Rear Panel I/O | - 2 x Antenna Ports - 1 x Optical SPDIF Out Port - 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)* - 4 x USB 3.2 Gen2 Type-C Ports (10 Gb/s) - 4 x USB 3.2 Gen1 Type-C Ports (USB32_TC_56 support Ultra USB Power.) - 2 x RJ-45 LAN Ports - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) |
Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - Killer Control Center - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |

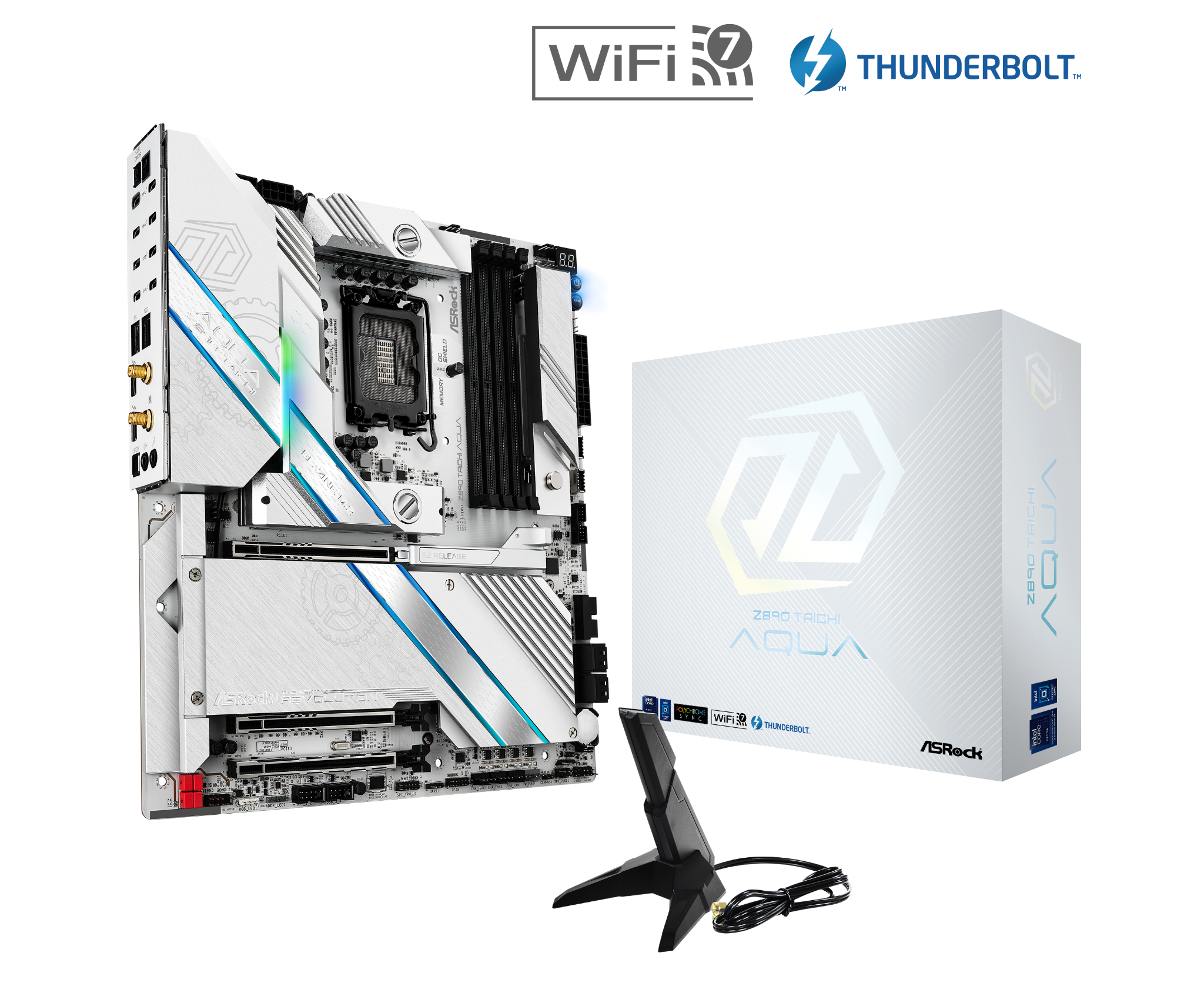

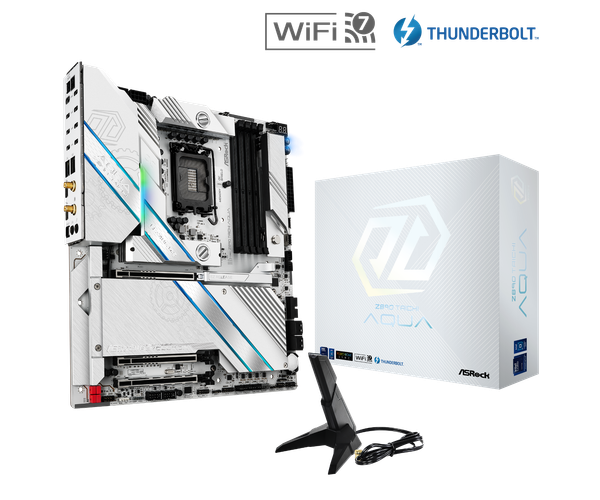

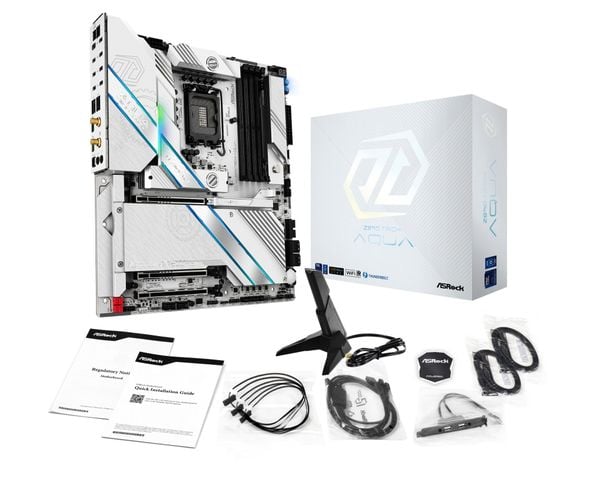

Phụ kiện | - 4 x SATA Data Cables - 1 x USB 2.0 Bracket - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 1 x ARGB Splitter Cable - 3 x Thermistor Cables |
Tính năng đặc biệt | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - Thunderbolt™ 4 Type-C Ports (40 Gb/s) Rock-Solid Durability - Server-Grade Low-Loss PCB - 28+1+2+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor - Memory OC Shield - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity - Marvell 10G LAN, Realtek 5G LAN - 802.11be Wi-Fi 7 Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer |
Kích thước | EATX (30.5 cm x 27.4 cm) |
OS | Windows® 11 64-bit |
Bảo hành | 36 tháng |
