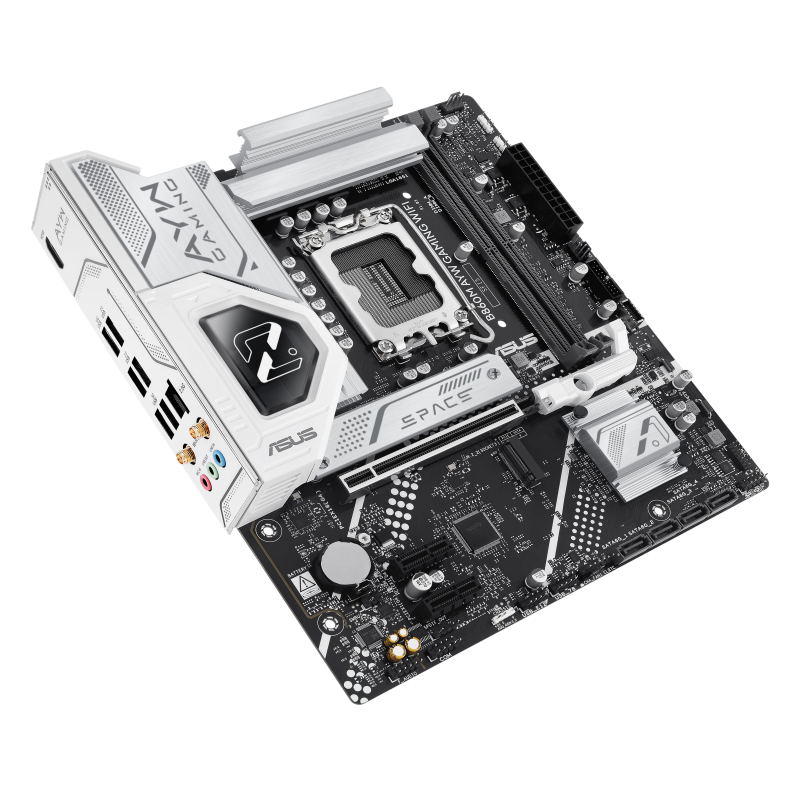

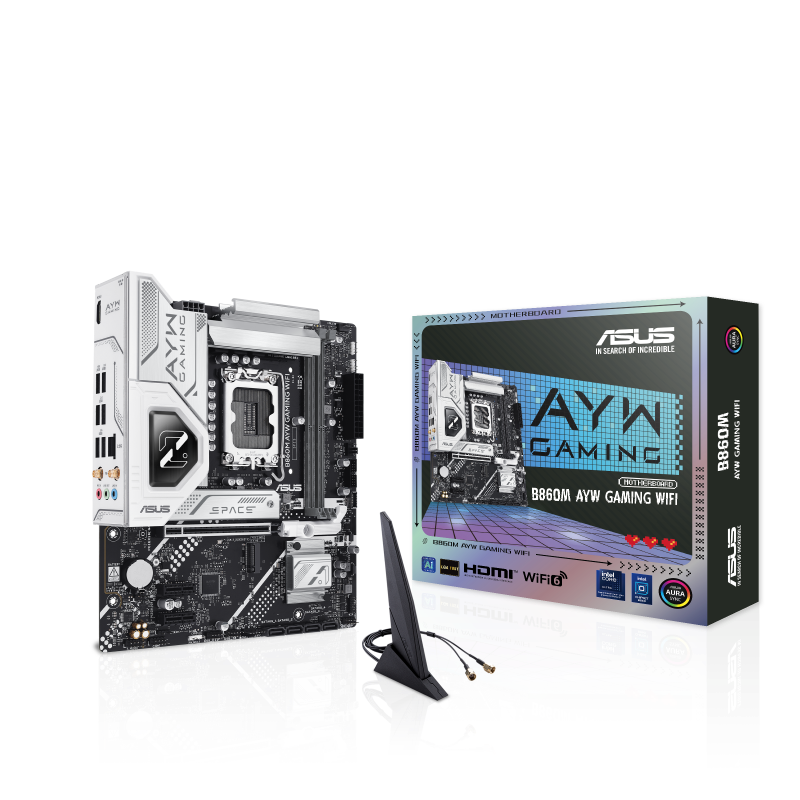

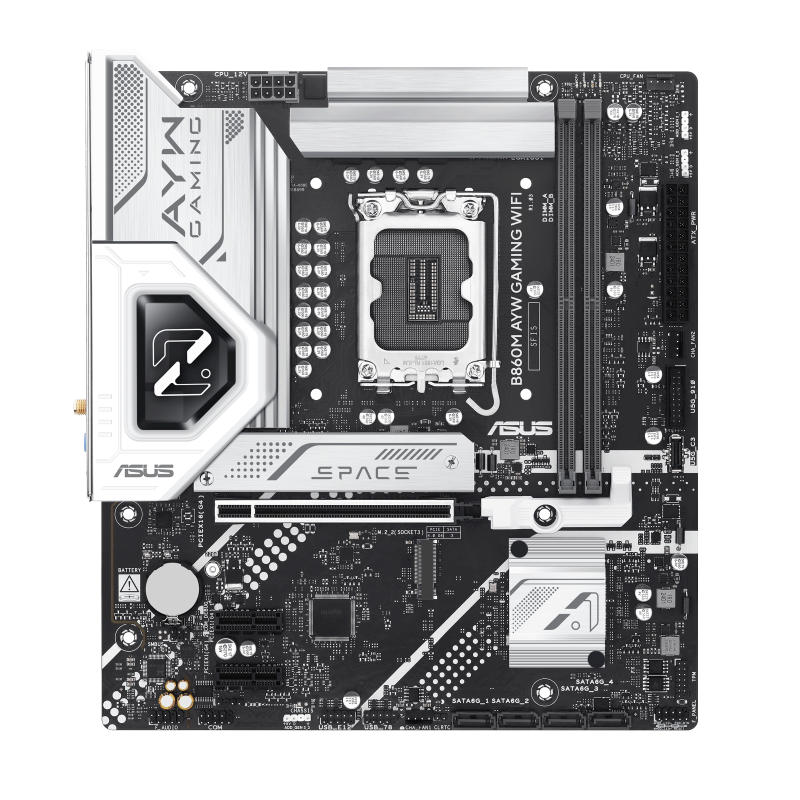

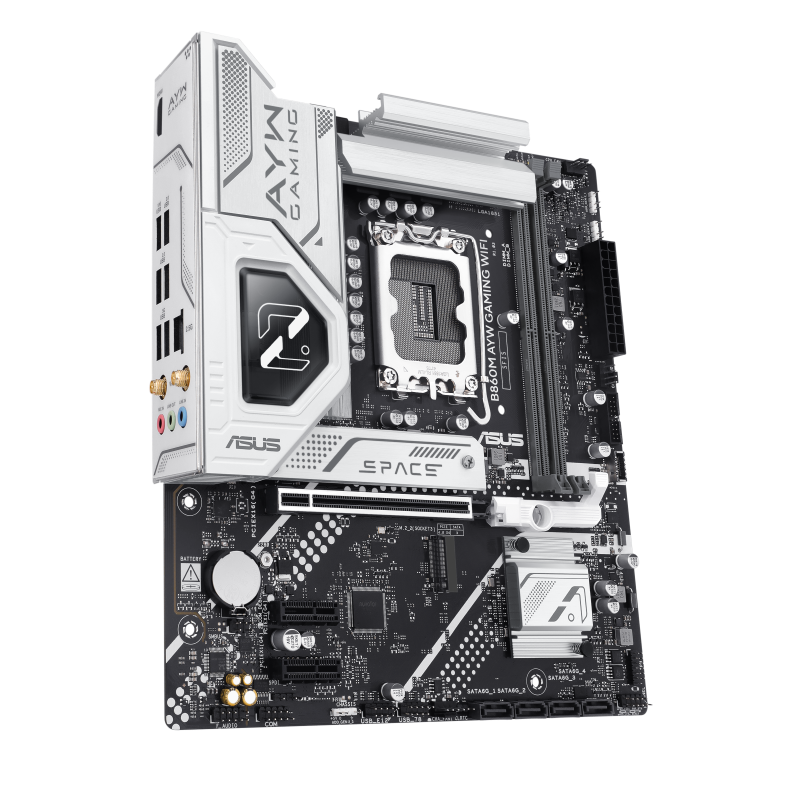

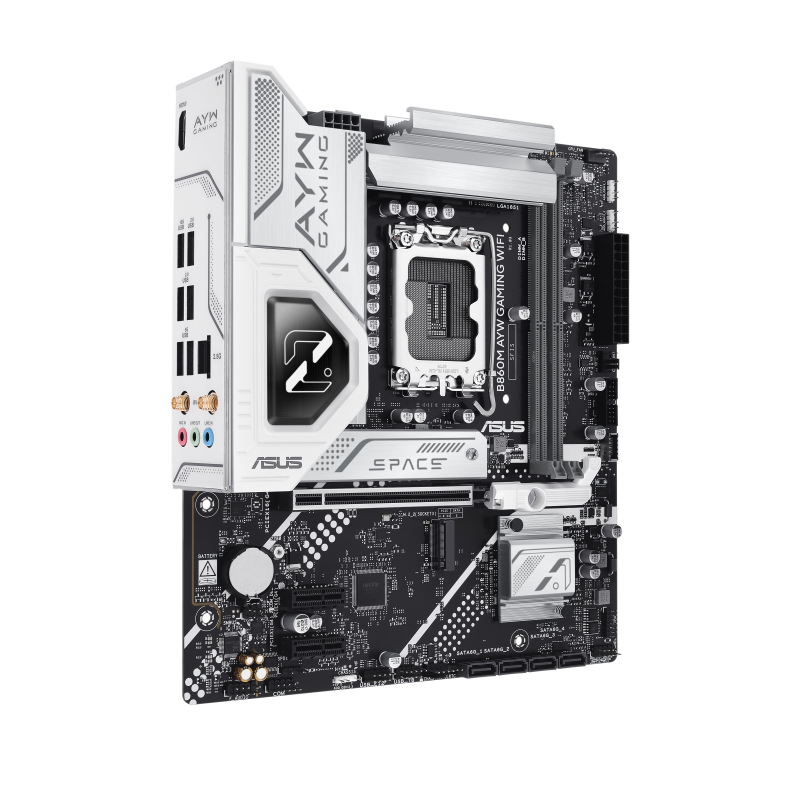

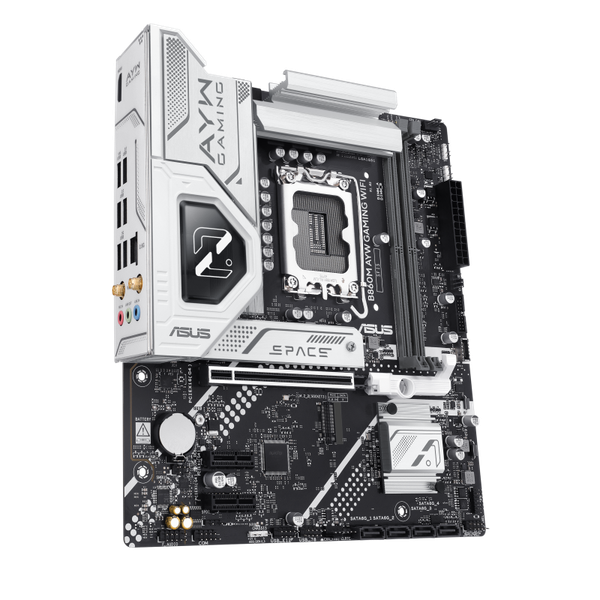

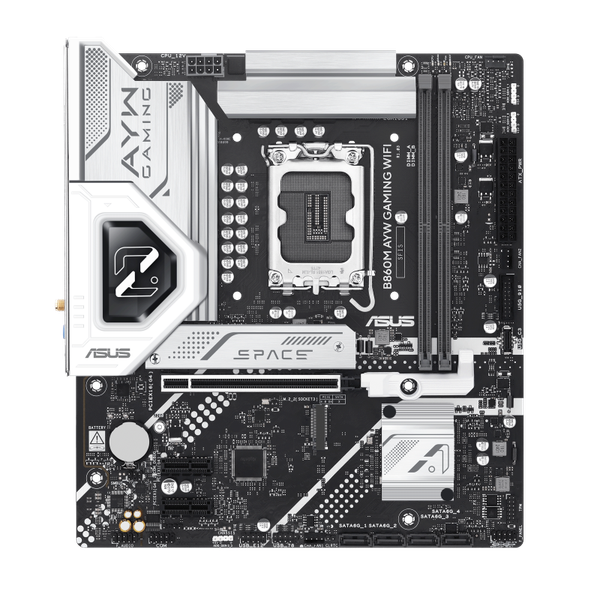

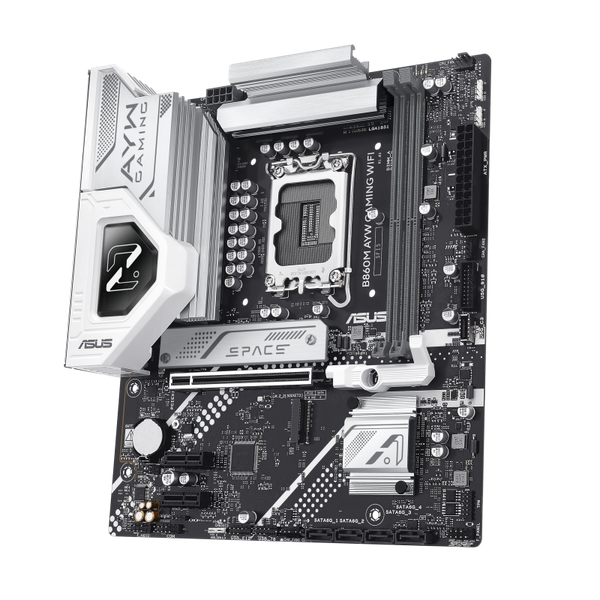

Mainboard - Asus B860M AYW GAMING WIFI

Hãng sản xuất

Asus

Model

B860M AYW GAMING WIFI

Hỗ trợ CPU

Intel® Core™ Ultra Processors (Series 2), LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

Intel B860

Bộ nhớ RAM

2 x DIMM slots, max. 128GB, DDR5
Supports up to 8800+MT/s (OC),  Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)

Đồ họa

1 x HDMI™ port

Khe cắm mở rộng

Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot

Intel® B860 Chipset
2 x PCIe 4.0 x1 slots

Khe lưu trữ

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

LAN

1 x Realtek 2.5Gb Ethernet
TUF LANGuard

Wifi & Bluetooth

Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band
Bluetooth® v5.3

USB

Rear USB (Total 6 ports)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)

Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Âm thanh

Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

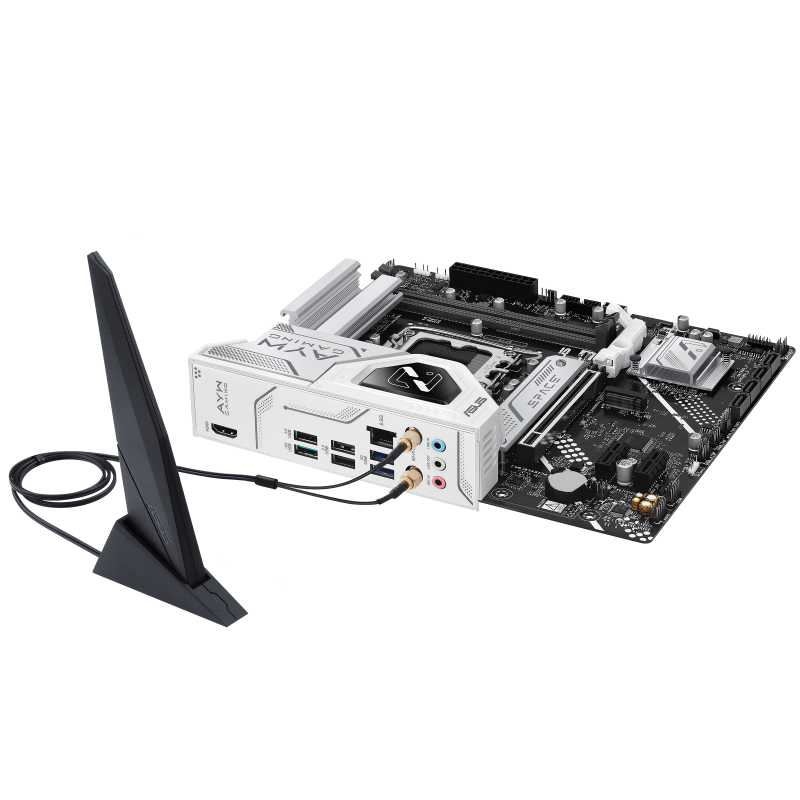

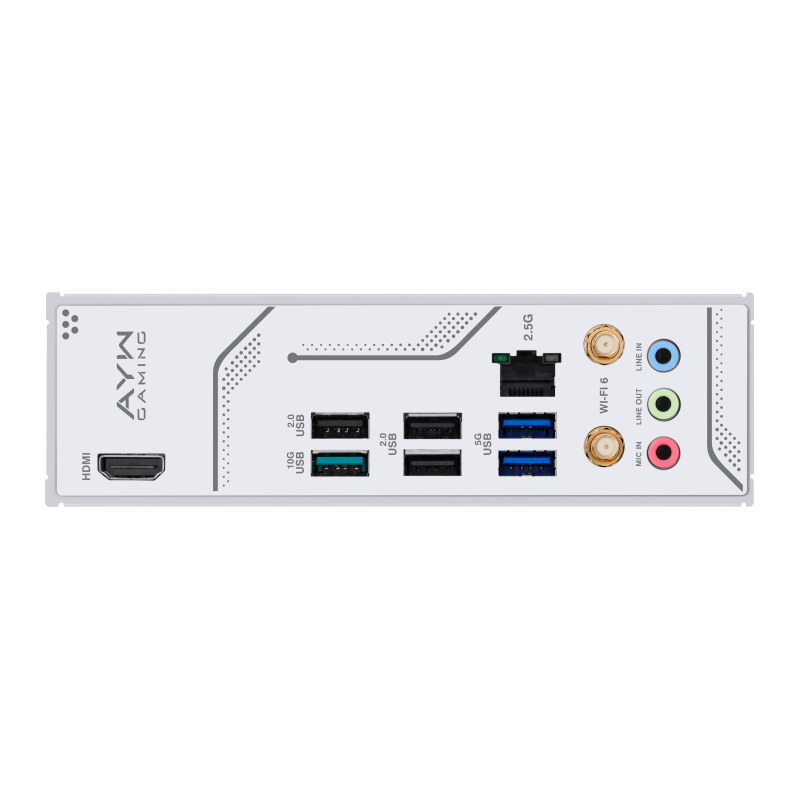

I/O mặt sau

1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
1 x HDMITM port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks

I/O nội bộ

Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector

Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 5Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header

Tính năng đặc biệt

ASUS TUF PROTECTION
- DIGI+VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O

ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Dashboard
- Q-DIMM
- Q-LED
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design

ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield

Aura Sync
- Addressable Gen2 headers

Tính năng phần mềm

ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
Asus CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

Bios

256 (128+128) Mb Flash ROM, UEFI
AMI BIOS

Phụ kiện đi kèm

2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antenna
1 x M.2 rubber package
1 x Screw package for M.2 SSD
1 x Quick start guide

OS

Windows 11, 10 64-bit

Kích thước

micro-ATX (24.4cm x 22.2cm)

Bảo hành

36 Tháng
