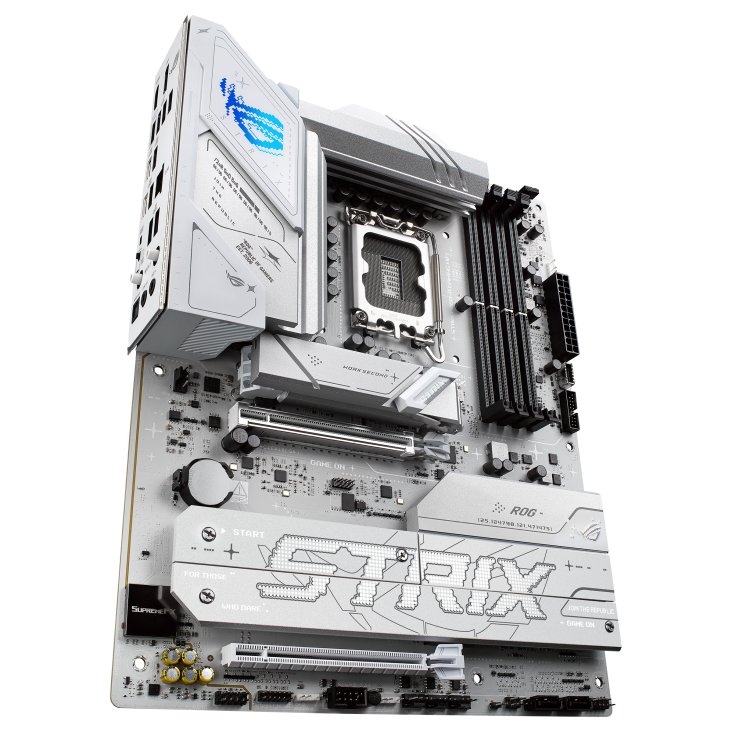

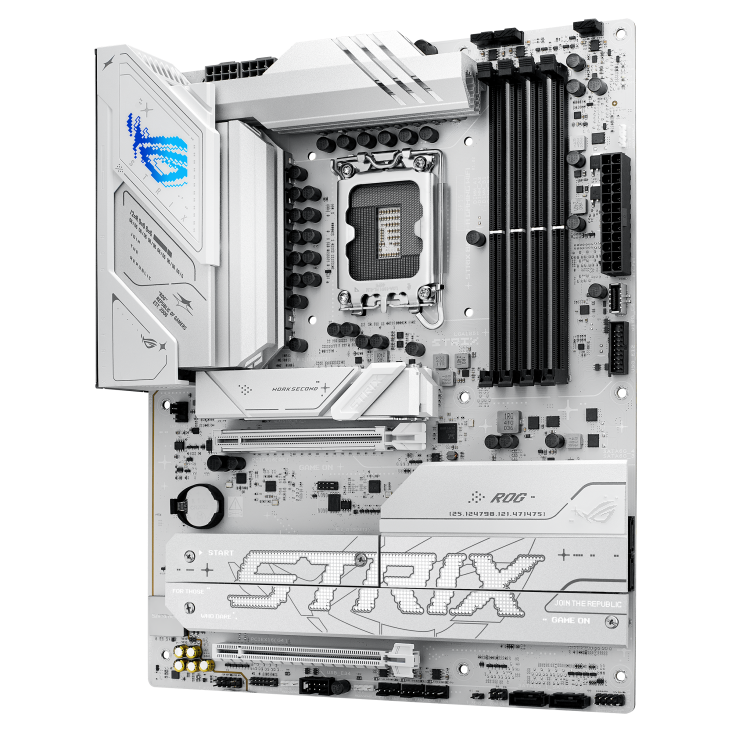

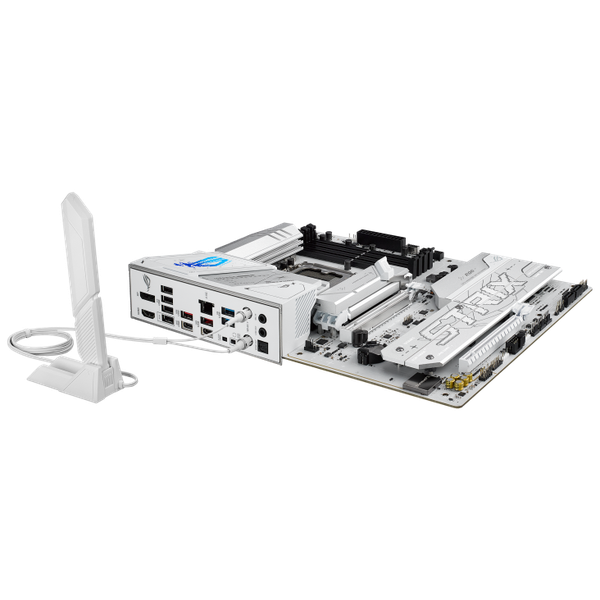

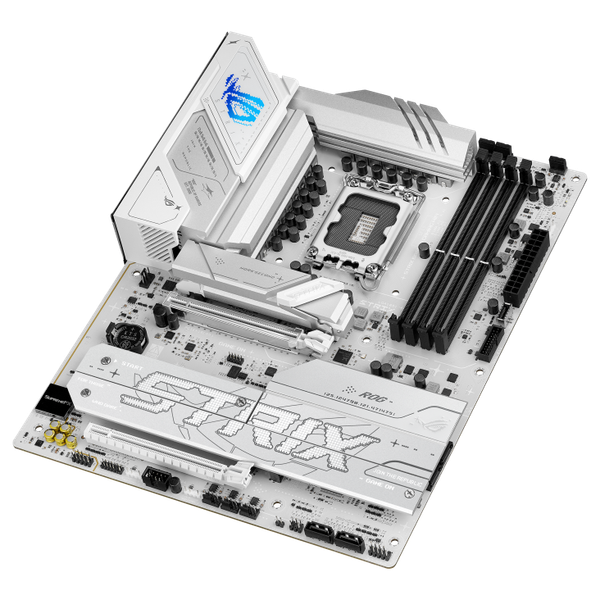

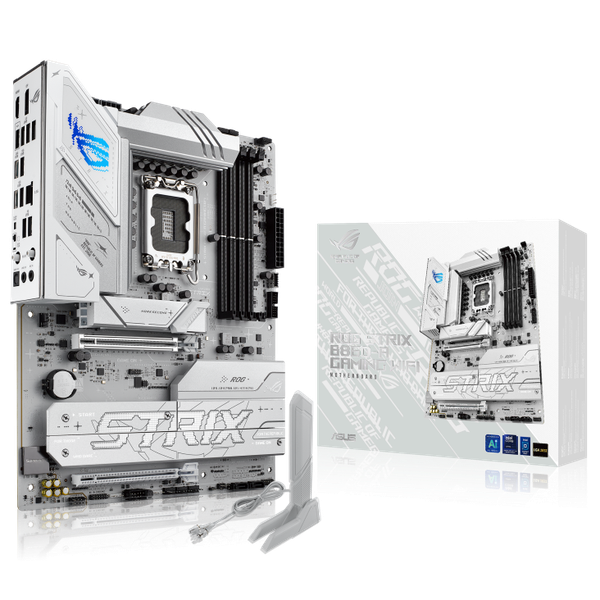

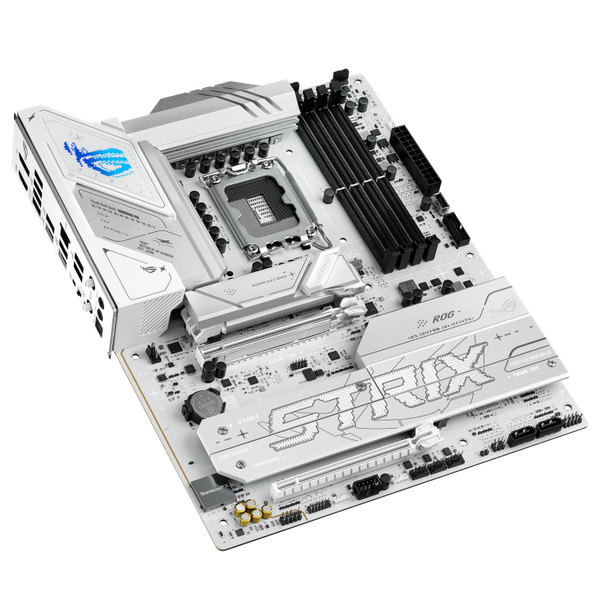

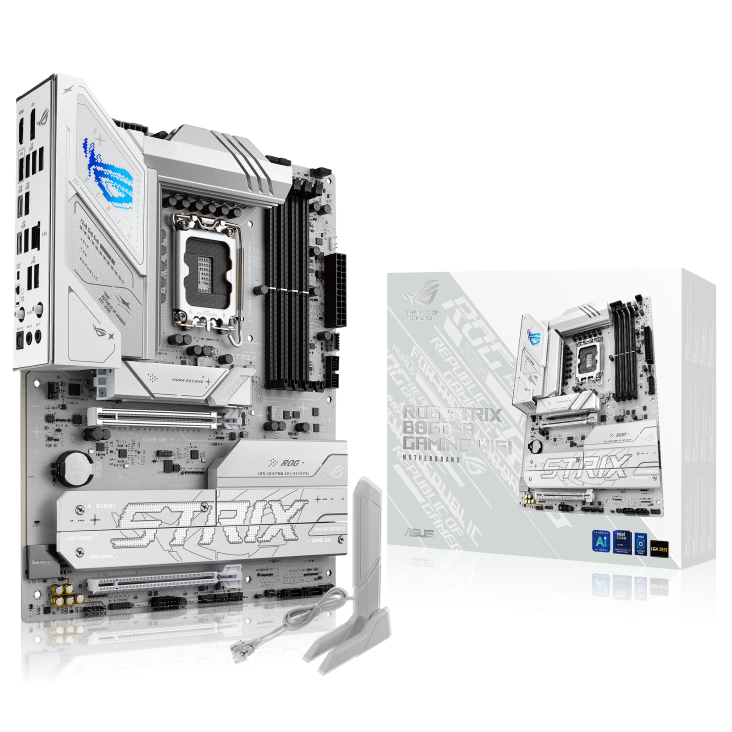

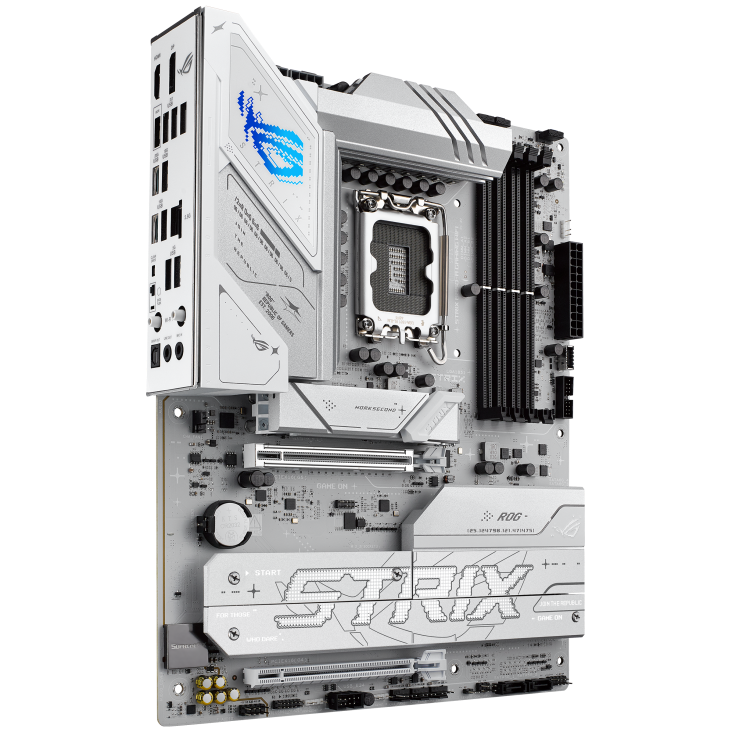

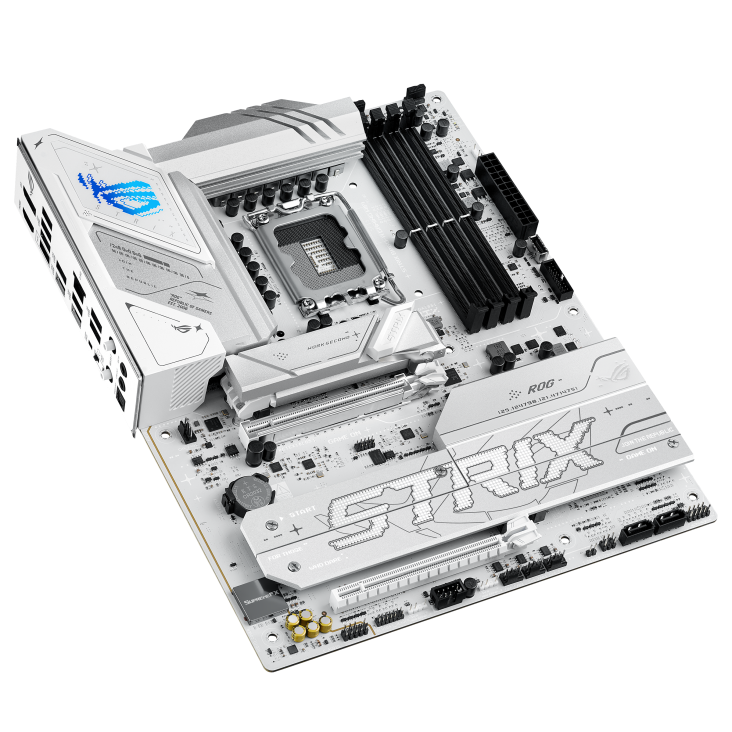

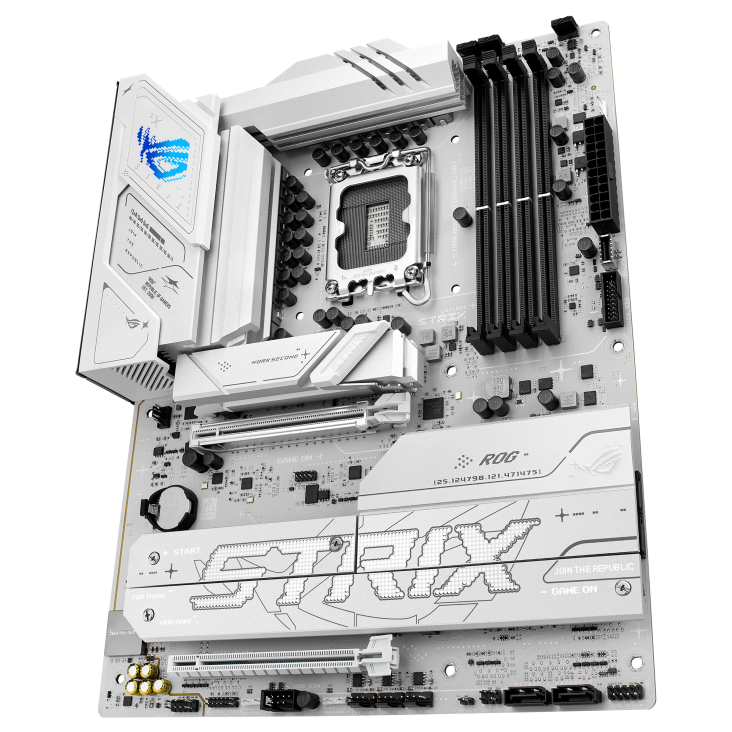

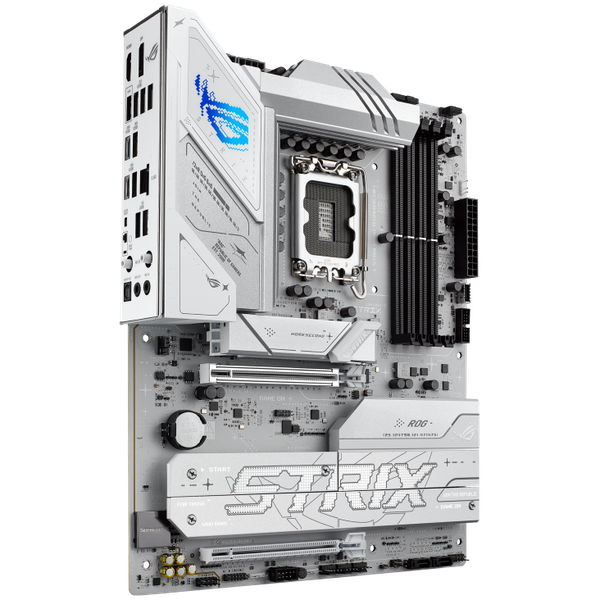

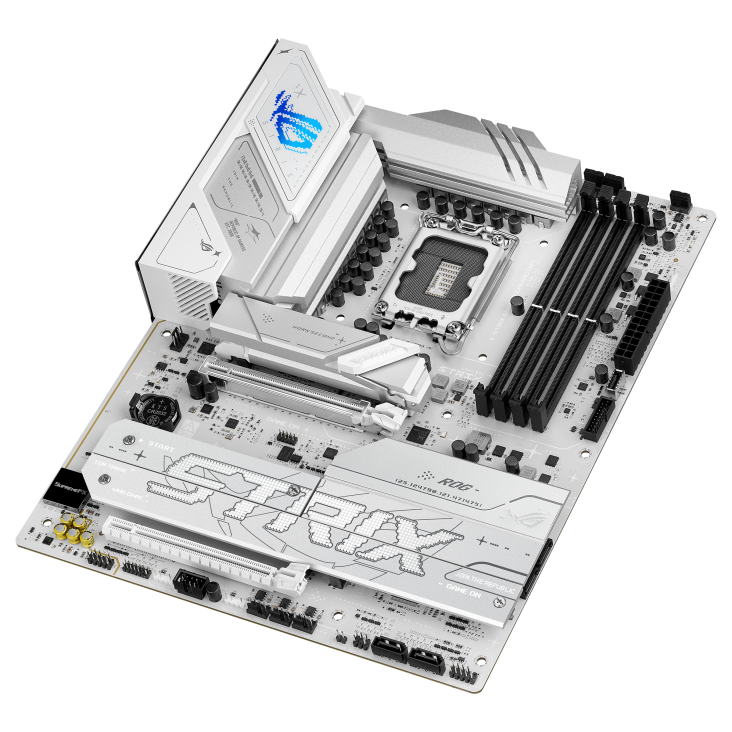

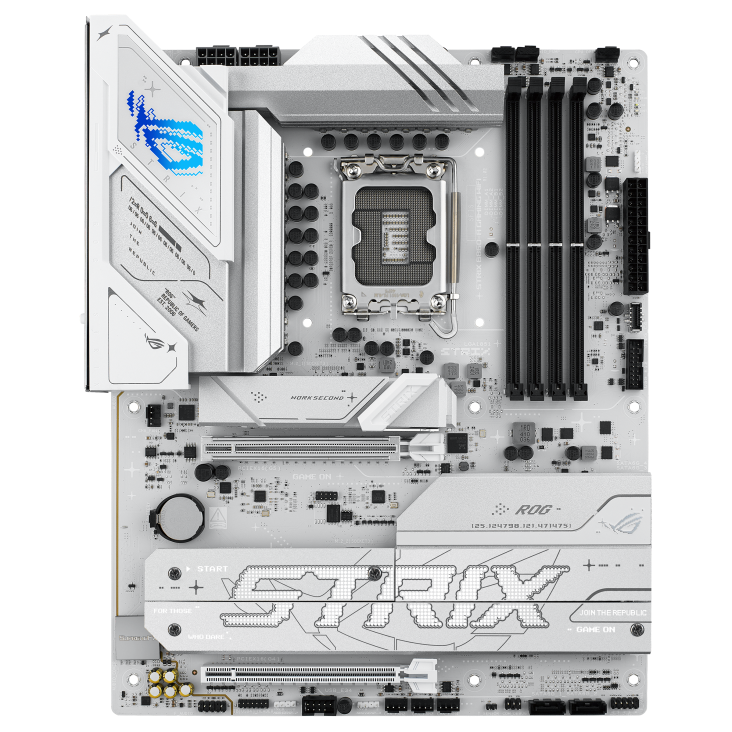

Mainboard - Asus ROG STRIX B860-A GAMING WIFI

Hãng sản xuất

Asus

Model

ROG STRIX B860-A GAMING WIFI

Hỗ trợ CPU

Intel® Core™ Ultra Processors (Series 2), LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

Intel B860

Bộ nhớ RAM

4 x DIMM slots, max. 256GB, DDR5
Supports up to 8600+MT/s (OC),  Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)

Đồ họa

1 x DisplayPort
1 x HDMI™ port
1 x USB4 (20Gbps) ports support USB Type-C display outputs

Khe cắm mở rộng

Intel Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot

Intel B860 Chipset
1 x PCIe 4.0 x16 slot

Khe lưu trữ

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

LAN

1 x Realtek 2.5Gb Ethernet
Asus LANGuard

Wifi & Bluetooth

Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4

USB

Rear USB (Total 10 ports)
1 x USB4 (20Gbps) port (1 x USB Type-C)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 5 ports)
1 x USB 10Gbps (1 x USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 headers support 2 additional USB 2.0 ports

Âm thanh

Realtek ALC1220P 7.1 Surround Sound
High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback

Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover

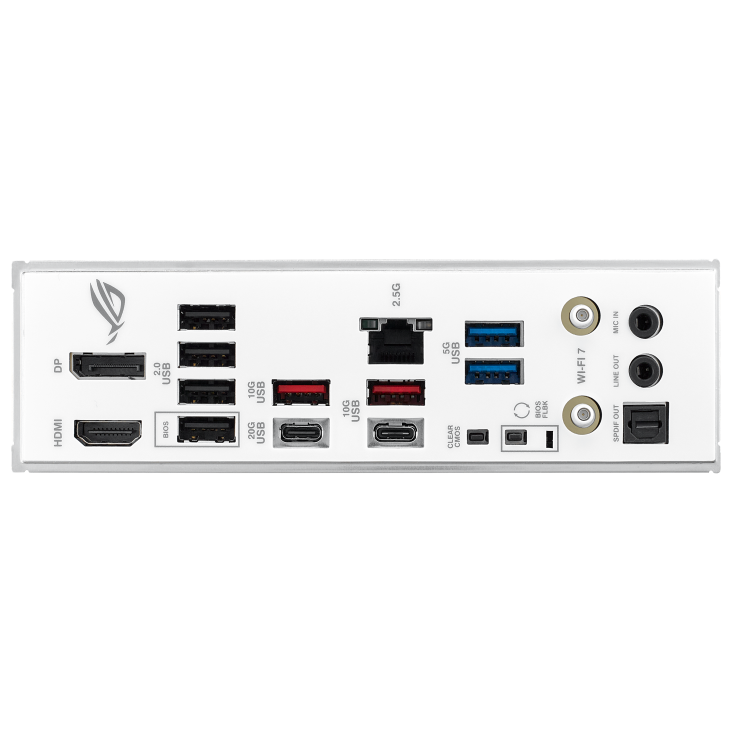

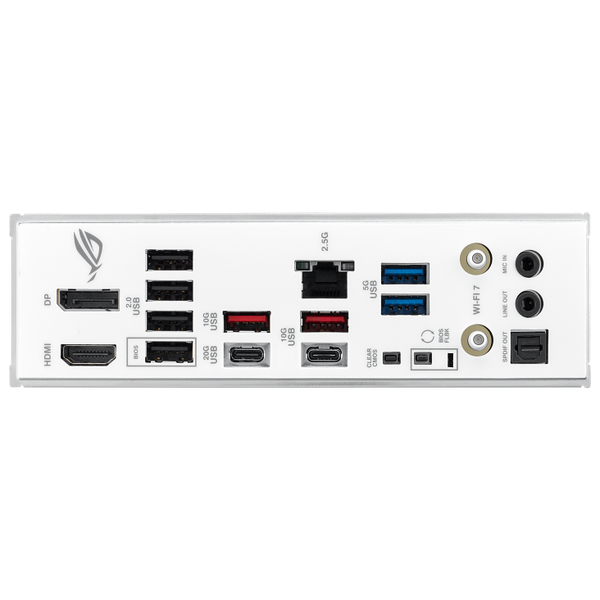

I/O mặt sau

1 x USB4 (20Gbps) port (1 x USB Type-C)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button

I/O nội bộ

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers

Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector

Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 10Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 2 additional USB 2.0 ports

Miscellaneous
3 x Addressable Gen2 headers
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header

Tính năng đặc biệt

Extreme Engine Digi+
- 5K Black metallic capacitors

ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink blackplate
- M.2 heatsink
- VRM heatsink design

ASUS EZ DIY
-BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

Aura Sync
- Addressable Gen2 headers

Tính năng phần mềm

ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- GameFirst
- Power Saving
AIDA64 Extreme (60 days free trial)
HWiNFO
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)

UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost

Bios

256 Mb Flash ROM, UEFI AMI BIOS

Phụ kiện đi kèm

2 x SATA 6Gb/s cables

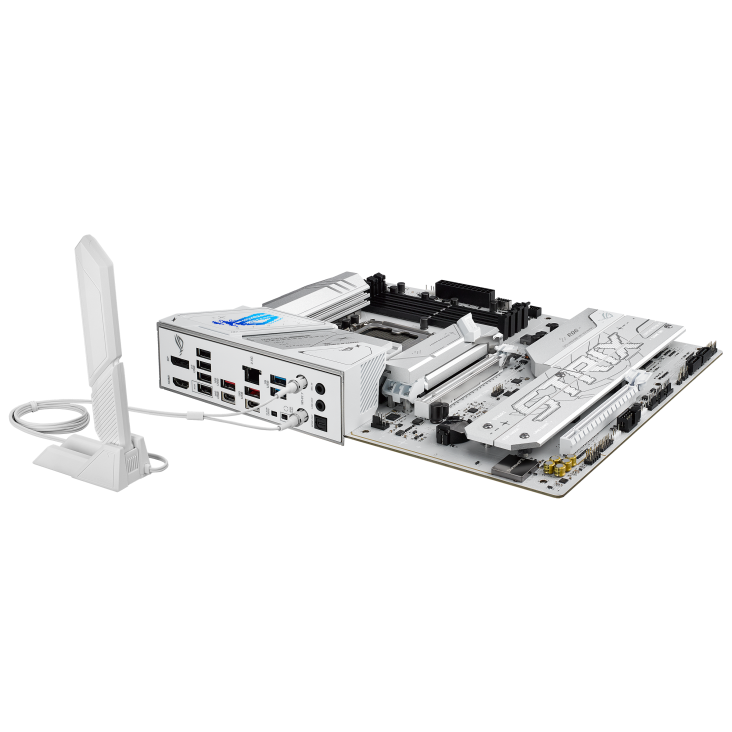

1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch
1 x M.2 Q-Slide
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubbers
1 x Quick start guide

OS

Windows 11 64-bit

Kích thước

ATX (30.5cm x 24.4cm)

Bảo hành

36 Tháng
