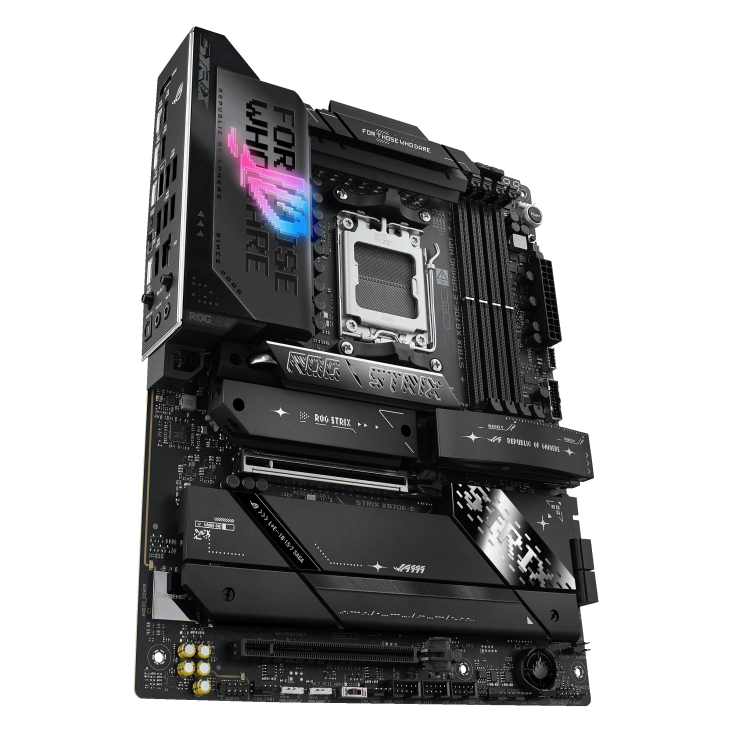

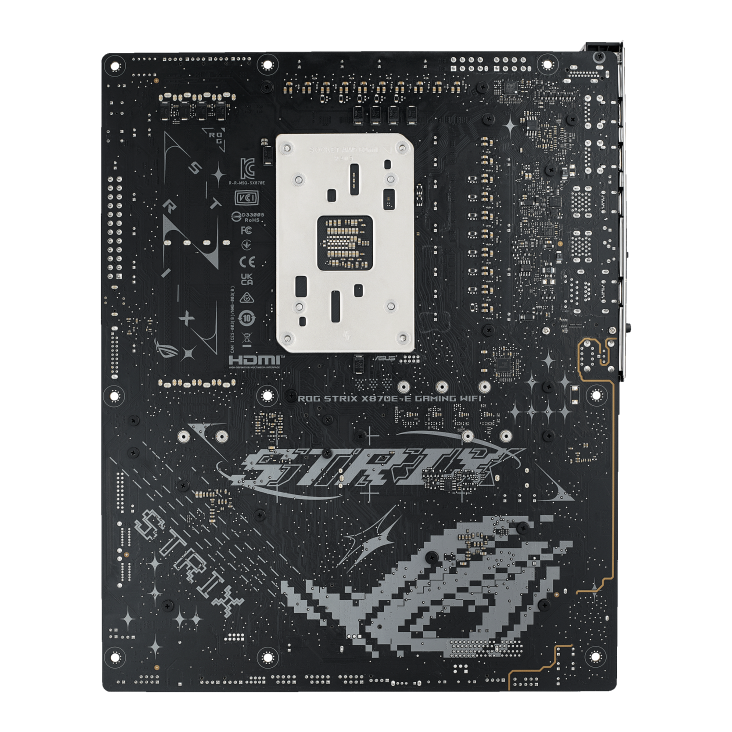

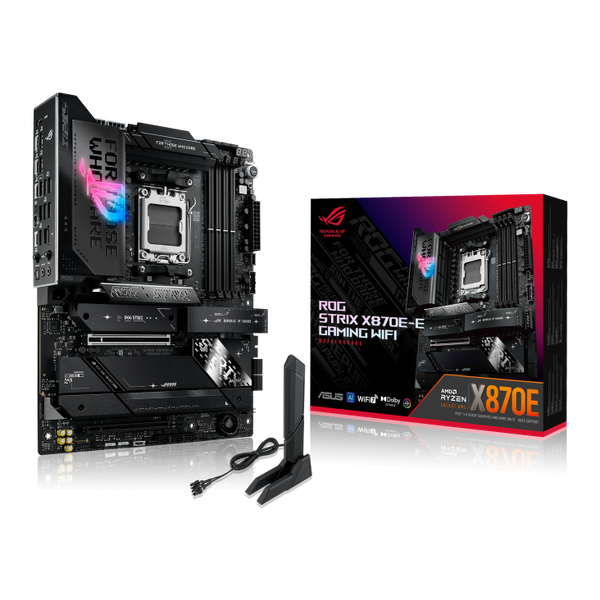

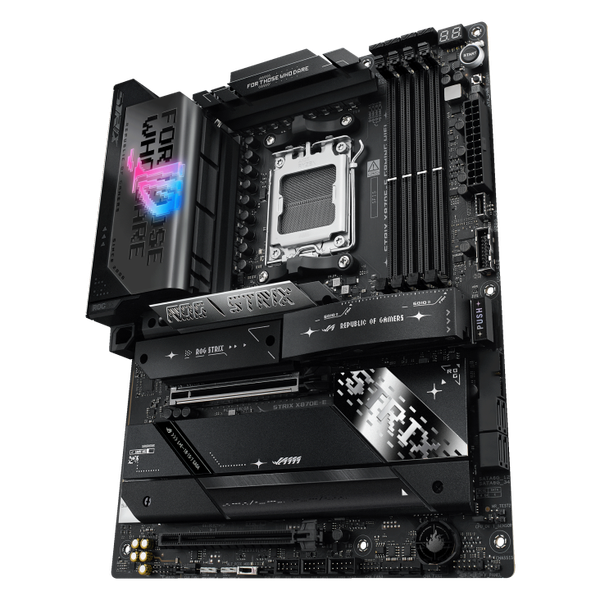

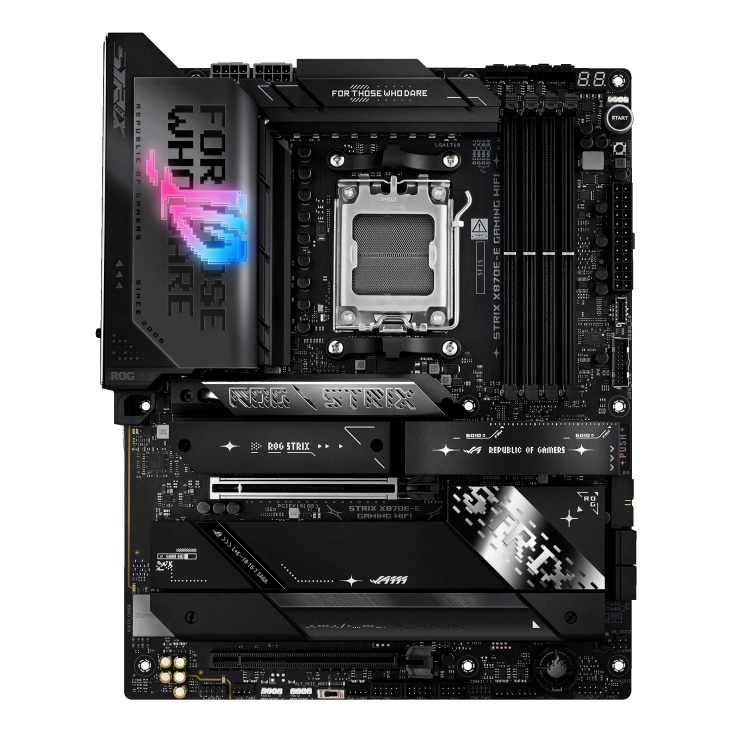

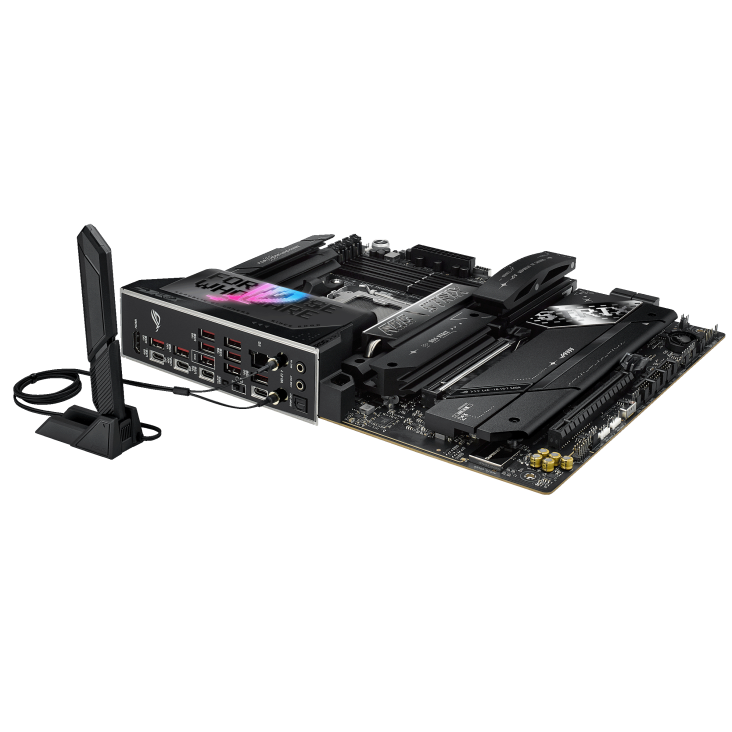

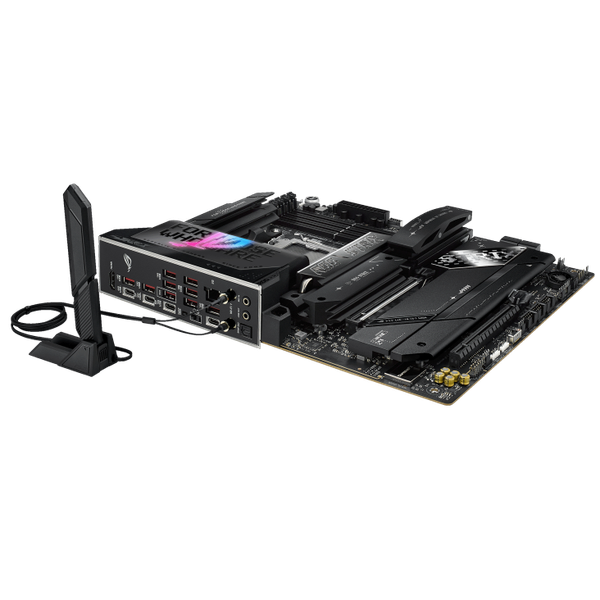

Mainboard - ASUS ROG STRIX X870E-E GAMING WIFI (AMD X870E, Socket AM5, ATX, DDR5)

Hãng sản xuất

Asus

Model

ROG STRIX X870E-E GAMING WIFI

Chipset

AMD X870E

Bộ nhớ

4 x DIMM slots, max. 192GB, DDR5
Supports up to
8000+MT/s(OC) with Ryzen™ 9000 Series Processors,
8400+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)

Đồ họa

1 x HDMI™ port**
2 x USB4^® (40Gbps) ports support USB Type-C^® display outputs

Khe cắm mở rộng

AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slots (supports x16 mode)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

Lưu Trữ

Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD X870E Chipset
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

LAN

1 x Realtek 5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
Bluetooth^® v5.4
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

USB

Rear USB (Total 13 ports)
2 x USB4^® (40Gbps) ports(2 x USB Type-C^®)
1 x USB 20Gbps port (1 x USB Type-C^® with up to 30W PD Fast-charge)**
10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C^®)
Front USB (Total 11 ports)
1 x USB 20Gbps connector (supports USB Type-C^®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports

Âm Thanh

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

Cổng I/O nội bộ

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C^®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

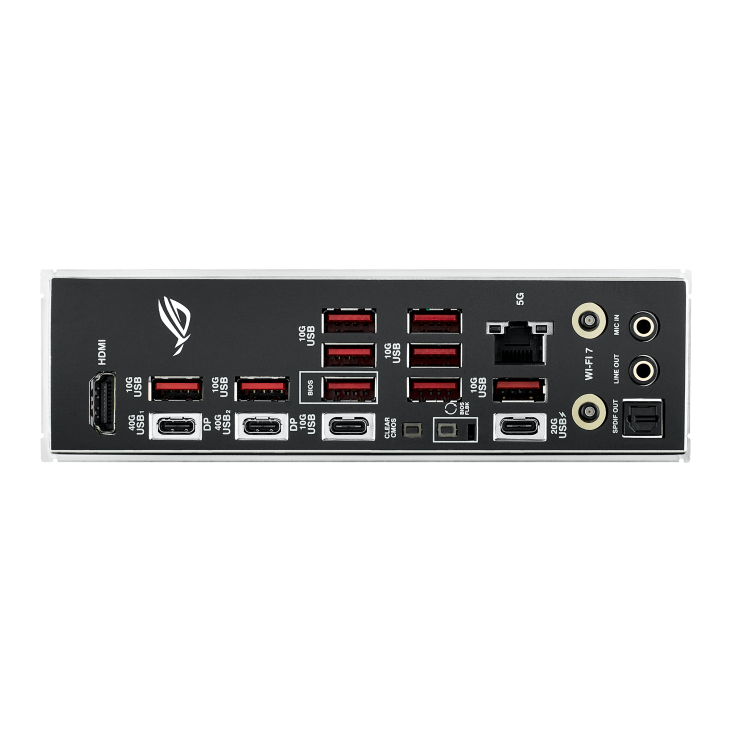

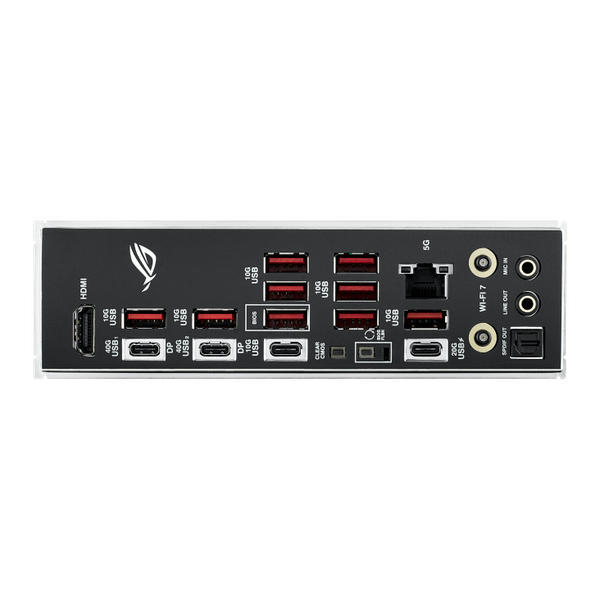

Cổng I/O phía sau

2 x USB4^® (40Gbps) ports (2 x USB Type-C^®)
1 x USB 20Gbps port (1 x USB Type-C^® with up to 30W PD Fast-charge)
10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C^®)
1 x HDMI^™ port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button

Các tính năng đặc biệt

Extreme Engine Digi+
- Tụ kim loại đen 5K
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-DIMM
- Đèn LED Q-LED (CPU [đỏ], DRAM [vàng], VGA [trắng], Boot Device [xanh vàng])
- Q-Slot
Giải pháp tản nhiệt của ASUS
- Tản nhiệt M.2
- Tấm ốp tản nhiệt M.2
- Thiết kế tản nhiệt VRM
ASUS EZ DIY
- Nút BIOS FlashBack™
- BIOS FlashBack™ LED
- Nút Xóa CMOS
- ProCool II
- Tấm chắn I/O lắp đặt sẵn
- SafeSlot
- SafeDIMM
Aura Sync
- Đầu cắm Addressable Gen 2

Tính năng phần mềm

Phần mềm độc quyền ROG
- ROG CPU-Z
- Dolby Atmos
Phần mềm độc quyền ASUS
Armoury Crate
- AIDA64 Extreme (60 ngày dùng thử miễn phí)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (với AI Cooling II)
- GameFirst
- HWiNFO
- Tiết kiệm năng lượng
ASUS Driver Hub
ASUS GlideX
TurboV Core
USB Wattage Watcher
Adobe Creative Cloud (Dùng thử miễn phí)
Norton 360 dành cho game thủ (60 ngày dùng thử miễn phí)
WinRAR (Dùng thử miễn phí 40 ngày)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI
BIOS EZ Mode
- ASUS
MyHotkey
Dynamic OC Switcher
FlexKey

BIOS

256 Mb  Flash ROM, UEFI AMI BIOS

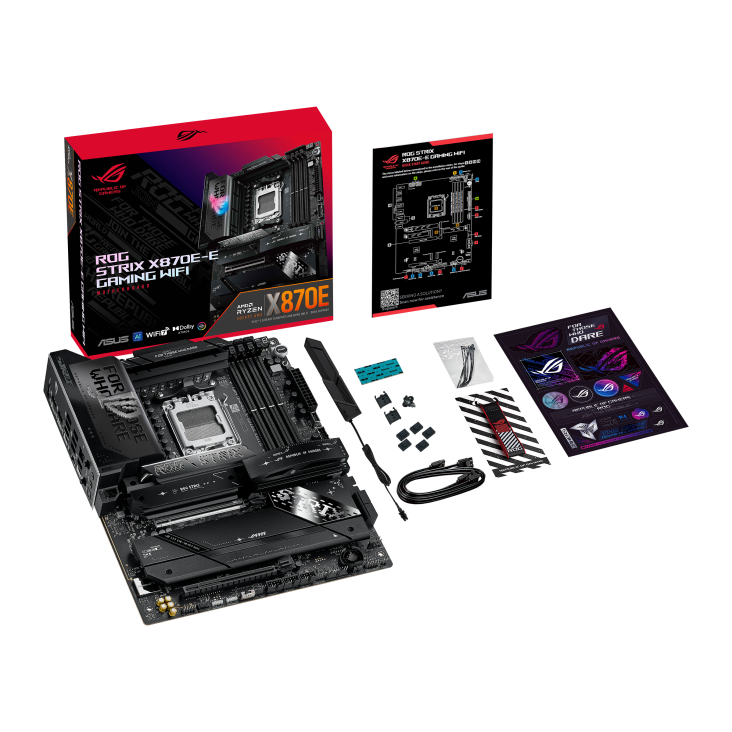

Phụ kiện đi kèm

Cáp
2 x cáp SATA 6Gb/s
Bộ tản nhiệt bổ sung
1 x Thermal pad for M.2 22110
Linh kiện khác
1 x ăng-ten di động Wi-Fi ASUS
1 x Cable ties pack
1 x gói Q-Latch M.2
2 x M.2 Q-Slides
1 x móc chìa khóa ROG
1 x ROG Strix stickers
5 x M.2 Rubbers
Tài liệu
1 x Hướng dẫn bắt đầu nhanh

OS

Windows 11 64-bit

Kích thước

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Bảo hành

36 Tháng
