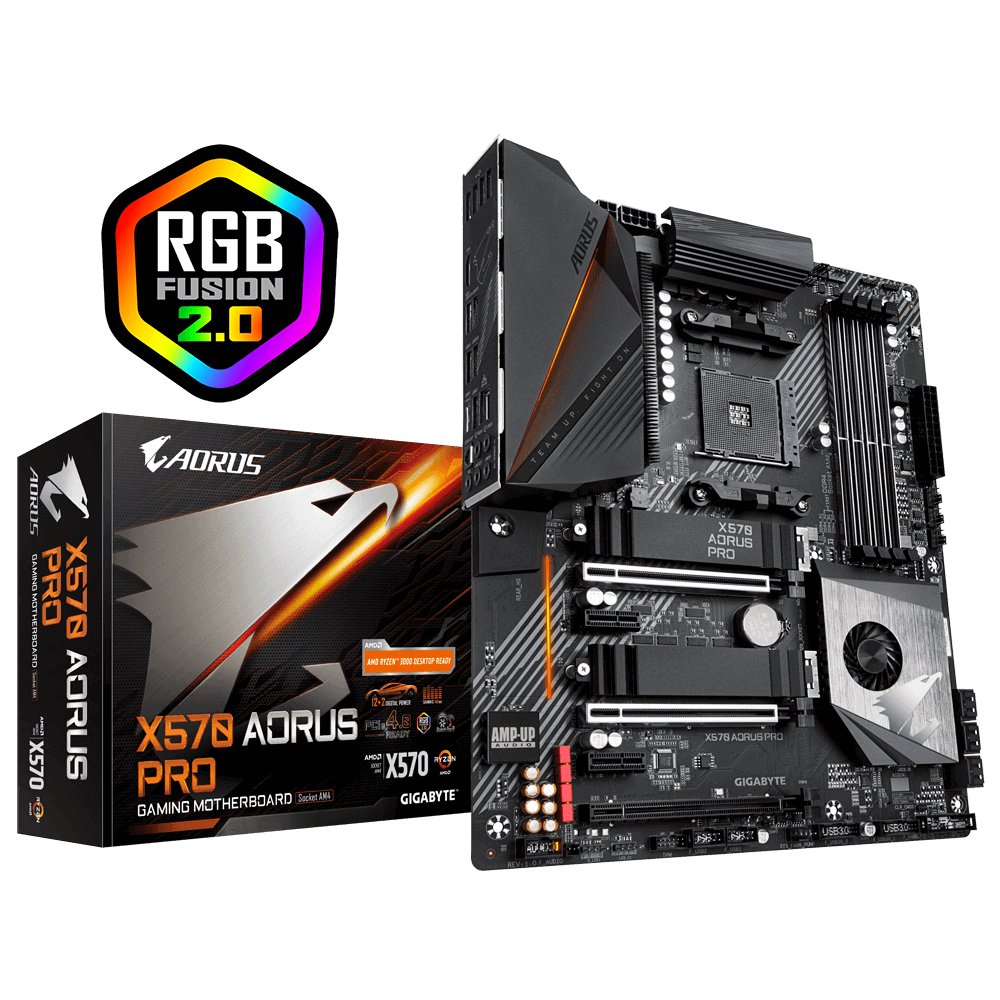

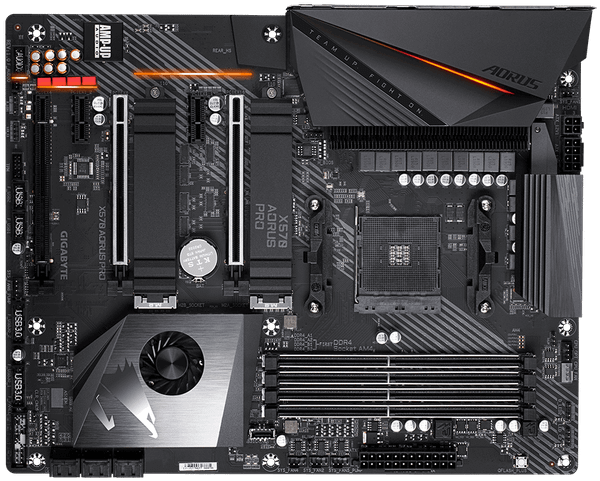

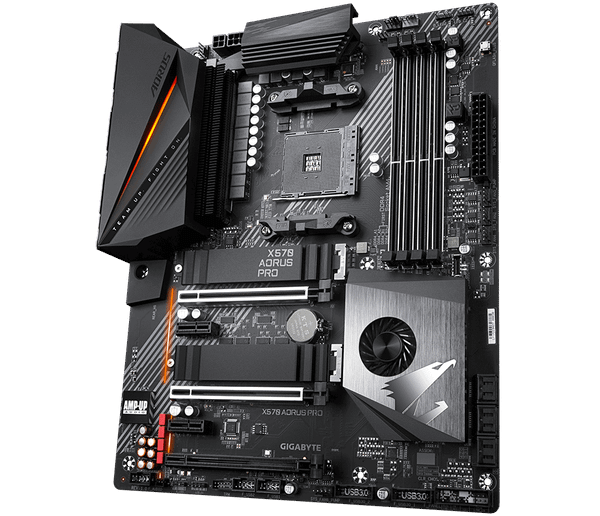

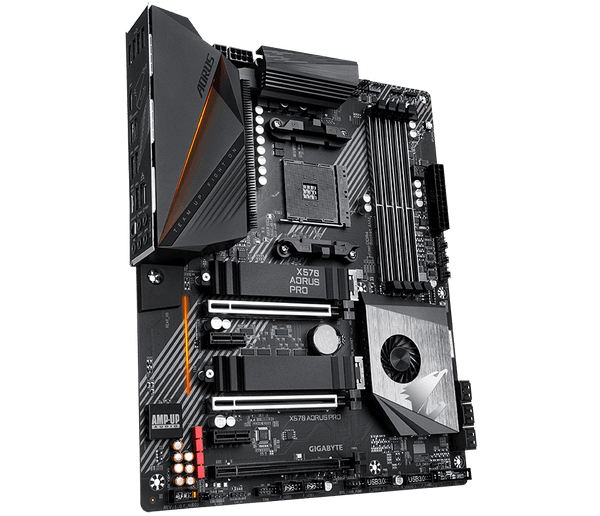

Mainboard GIGABYTE X570 AORUS PRO (AMD Socket AM4)

Thương hiệu: Gigabyte
|
Loại: Mainboard
7,630,000₫
Tiêu đề:
CAM KẾT BÁN HÀNG
  • Hàng chính hãng. Nguồn gốc rõ ràng Hàng chính hãng. Nguồn gốc rõ ràng
  • Hỗ trợ giao hàng toàn quốc Hỗ trợ giao hàng toàn quốc
  • Bảo hành chính hãng toàn quốc Bảo hành chính hãng toàn quốc
Tiêu đề Tab

Nhà sản xuất : GIGABYTE
Tình trạng: Fullbox – 100%

Bảo hành: 36 tháng

Mô tả sản phẩm
CPU

AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors

(Please refer "CPU Support List" for more information.)

Chipset

AMD X570

Bộ nhớ
  1. 3rd Generation AMD Ryzen™ processors:
    Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  2. 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
    Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Card đồ họa tích hợpIntegrated Graphics Processor:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
Maximum shared memory of 16 GB

* For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.
Âm thanh
  1. Realtek® ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. Intel® GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module
  1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.0
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Khe cắm mở rộngIntegrated in the CPU (PCIEX16/PCIEX8):
  1. 3rd Generation AMD Ryzen™ processors:
    1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
    1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)
  2. 2nd Generation AMD Ryzen™ processors:
    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode.
  3. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)
Integrated in the Chipset (PCIEX4/PCIEX1):
  1. 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
    * For 3rd Generation AMD Ryzen™ processors only.
  2. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
    * For 3rd Generation AMD Ryzen™ processors only.
Công nghệ đa card đồ họa
  1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
  2. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
* For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.
Giao diện lưu trữIntegrated in the CPU (M2A_SOCKET):
  1. 3rd Generation AMD Ryzen™ processors:
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
  2. 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET):
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET)
    * For 3rd Generation AMD Ryzen™ processors only.
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET)
    * For 3rd Generation AMD Ryzen™ processors only.
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, and RAID 10
    * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USBIntegrated in the CPU:
  1. 3 x USB 3.2 Gen 1 ports on the back panel
  2. 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel
    * For 3rd Generation AMD Ryzen™ processors only.
Chipset:
  1. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
  2. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  4. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+USB 2.0 Hubs:
  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
ết nối I/O bên trong
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 3 x system fan headers
  7. 2 x system fan/water cooling pump headers
  8. 2 x addressable LED strip headers
  9. 2 x RGB LED strip headers
  10. 1 x CPU cooler LED strip/RGB LED strip header
  11. 3 x M.2 Socket 3 connectors
  12. 6 x SATA 6Gb/s connectors
  13. 1 x front panel header
  14. 1 x front panel audio header
  15. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  16. 2 x USB 3.2 Gen 1 headers
  17. 2 x USB 2.0/1.1 headers
  18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  19. 1 x Clear CMOS jumper
  20. 2 x temperature sensor headers
  21. 1 x Q-Flash Plus button

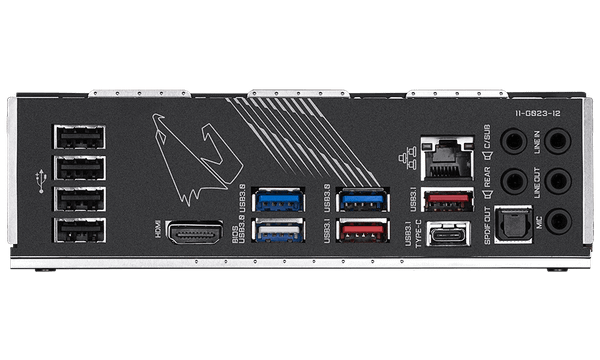

Kết nối bảng phía sau
  1. 2 x SMA antenna connectors (2T2R)
  2. 1 x HDMI port
  3. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  4. 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red)
    * For 3rd Generation AMD Ryzen™ processors only.
  5. 1 x USB 3.2 Gen 2 Type-A port (red)
  6. 3 x USB 3.2 Gen 1 ports
  7. 4 x USB 2.0/1.1 ports
  8. 1 x RJ-45 port
  9. 1 x optical S/PDIF Out connector
  10. 5 x audio jacks
Điều khiển I/O
  1. iTE® I/O Controller Chip
