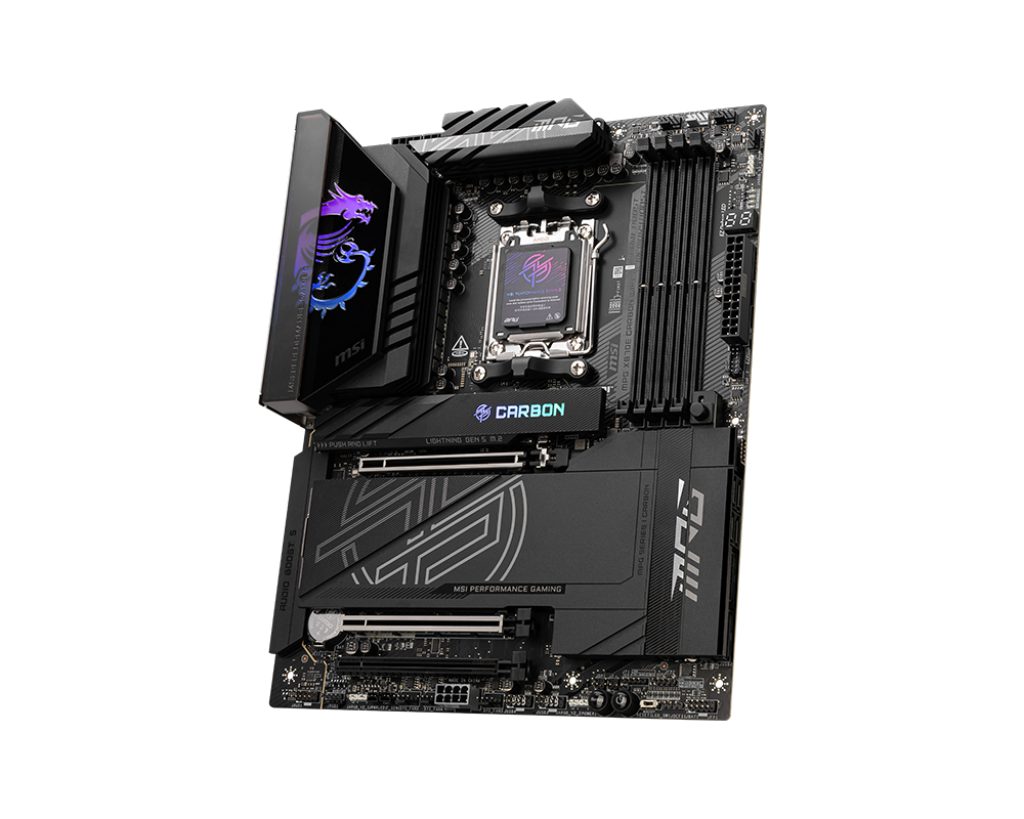

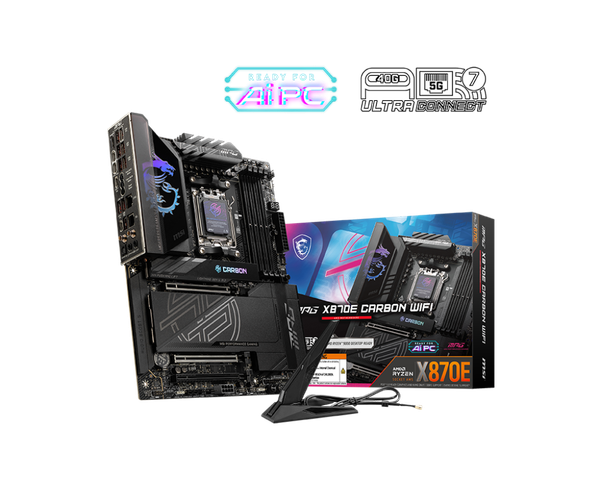

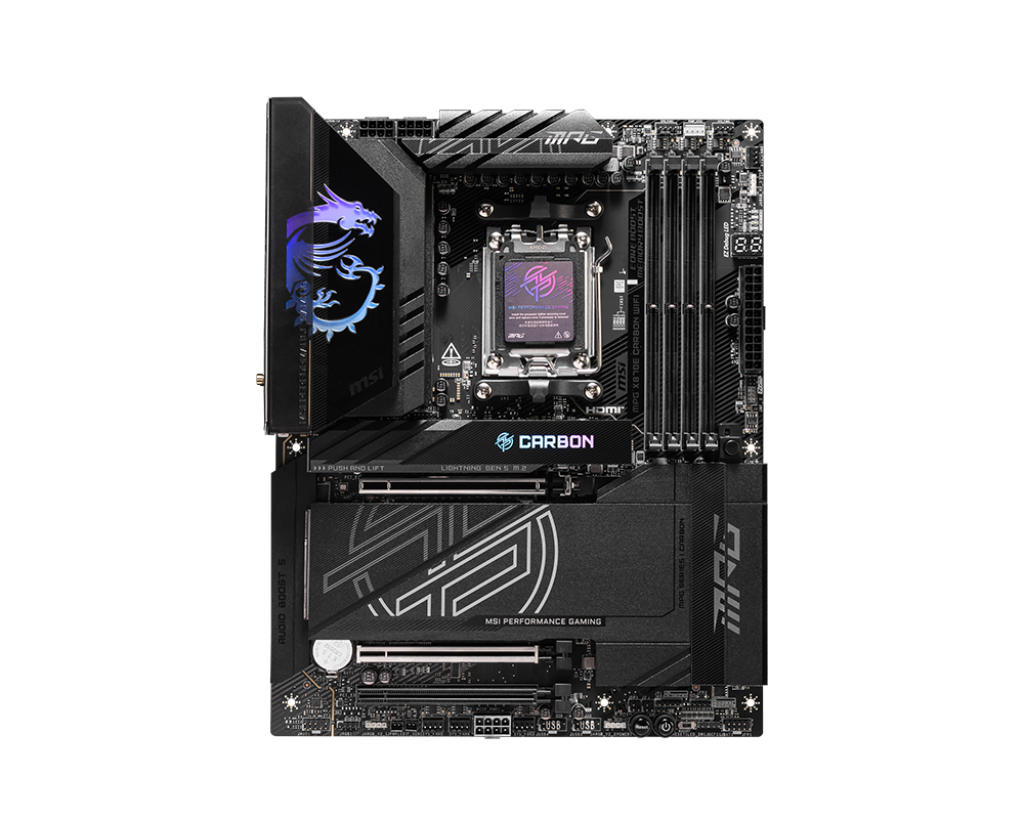

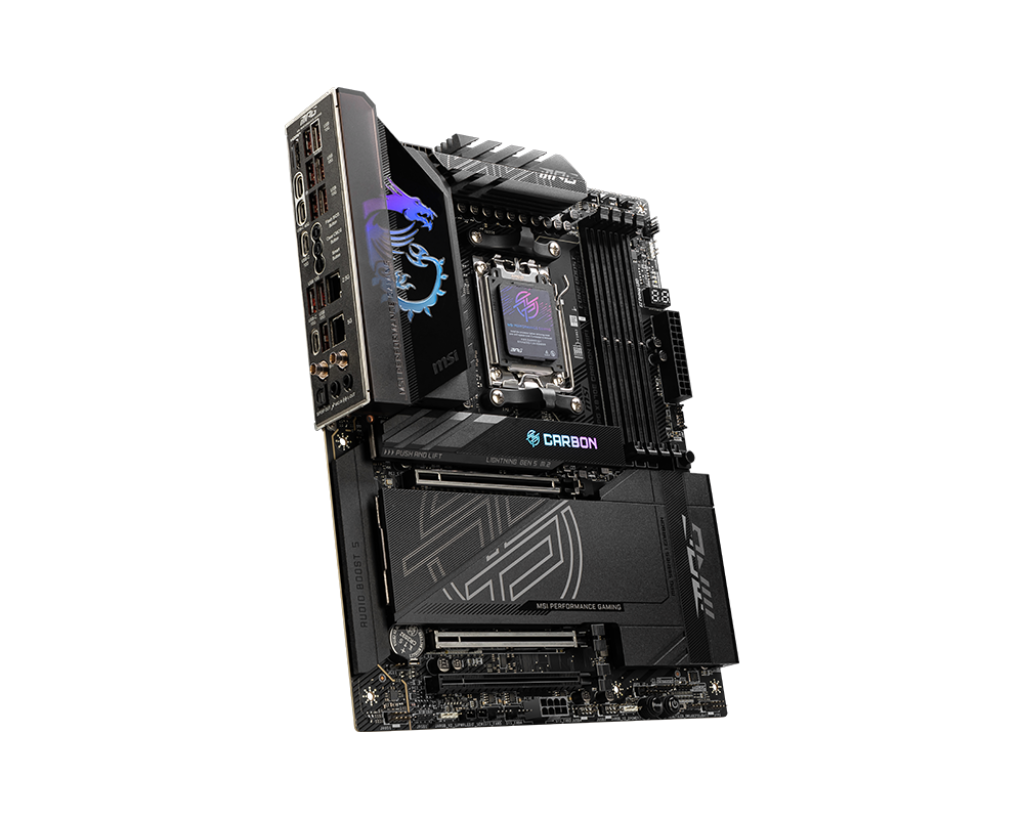

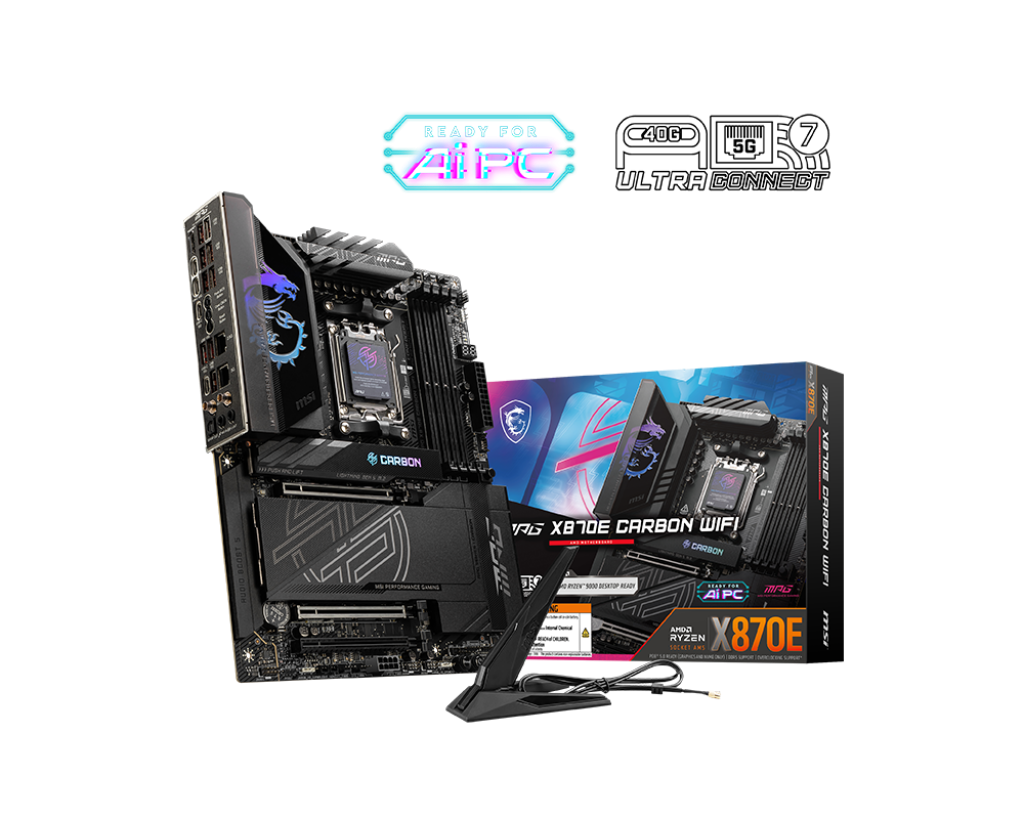

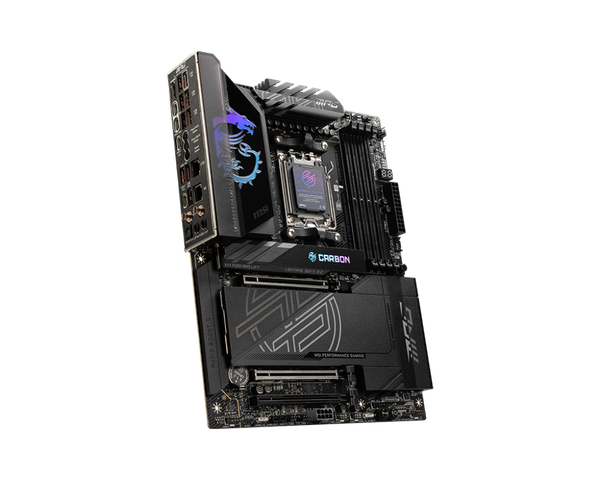

Mainboard MSI MPG X870E CARBON WIFI (AMD X870E / Socket AM5 / ATX / DDR5)

Thương hiệu: MSI
|
Loại: Mainboard
15,990,000₫ 20,990,000₫
Tiêu đề:
CAM KẾT BÁN HÀNG
  • Hàng chính hãng. Nguồn gốc rõ ràng Hàng chính hãng. Nguồn gốc rõ ràng
  • Hỗ trợ giao hàng toàn quốc Hỗ trợ giao hàng toàn quốc
  • Bảo hành chính hãng toàn quốc Bảo hành chính hãng toàn quốc
Chính Sách Bán Hàng

Hỗ trợ đổi mới trong vòng 7 ngày.

Bảo hành chính hãng 36 tháng toàn quốc.

Hỗ trợ trả góp lãi suất 0% qua MPOS.

Hỗ trợ giao hàng toàn quốc.

Mô tả sản phẩm

Mainboard MSI MPG X870E CARBON WIFI (AMD X870E / Socket AM5 / ATX / DDR5)

Thông Số Kỹ Thuật

Hãng sản xuất

MSI

Model

MPG X870E CARBON WIFI

Chipset

AMD X870E

Hỗ trợ CPU

AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Bộ nhớ

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only

Đồ họa

1x HDMI™
Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz

Slot

3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 & PCI_E2 slots
• Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor)
PCI_E3 slot
• Supports up to PCIe 4.0 x4

Audio

Realtek® ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Supports S/PDIF output

Storage

4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

RAID

•Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices
•Supports RAID 0, RAID 1 and Raid 10* for M.2 NVMe storage devices

USB

4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
9x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear)

LAN

1x Realtek® 8126 5G LAN
1x Realtek® 8125 2.5G LAN

Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

Wifi & BLUETOOTH

Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

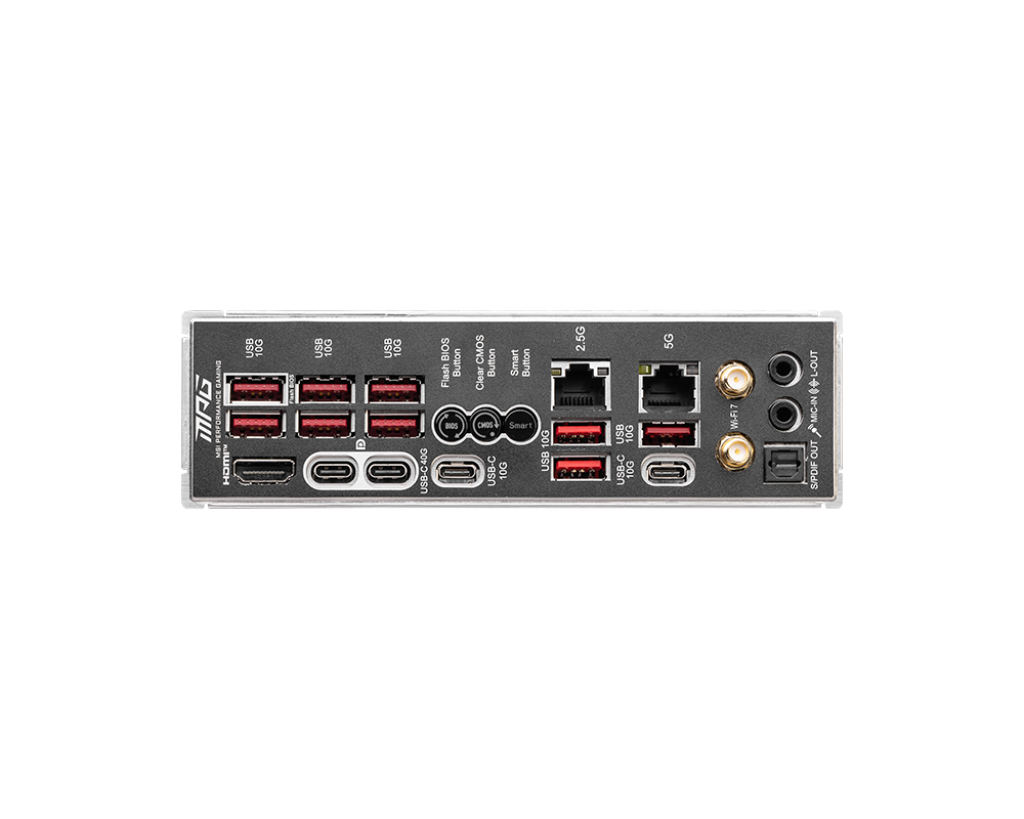

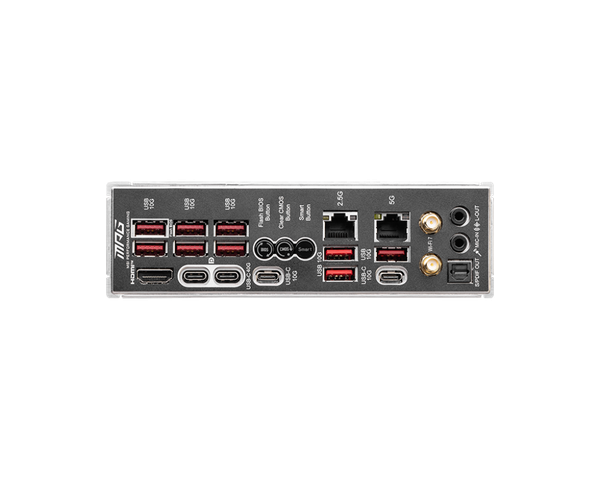

BACK PANEL PORTS

USB 10Gbps Type-A

Flash BIOS Button

Clear CMOS Button

Smart Button

2.5G LAN

5G LAN

Audio Connectors

HDMI™

USB 40Gbps Type-C

USB 10Gbps Type-C

USB 10Gbps Type-A

USB 10Gbps Type-C

Wi-Fi / Bluetooth

Optical S/PDIF Out

OS

Support for Windows® 11 64-bit

Kích thước

ATX (243.84mm x 304.8mm)

Bảo hành

36 tháng
