Hãng sản xuất | MSI |
Model | MPG Z890 CARBON WIFI |
Chipset | INTEL Z890 |
Hỗ trợ CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
Bộ nhớ RAM | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: - 1DPC 1R Max speed up to 9200+ MT/s - 1DPC 2R Max speed up to 7200+ MT/s - 2DPC 1R Max speed up to 4800+ MT/s - 2DPC 2R Max speed up to 4800+ MT/s
Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
Card đồ họa tích hợp | 1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort ThundeboltTM 4 ports, supporting DisplayPort 1.4 with HBR3 over USB Type-C, with a maximum resolution of 8K@60Hz |
Khe mở rộng | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
Audio | Realtek® ALC1220P Codec 7.1-Channel USB High Defination Audio Supports S/PDIF output |
Khe lưu trữ | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices 4x SATA 6G |
Onboard Thunderbolt | 2x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display |
USB | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 10x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
LAN | 1x Intel® Killer™ E5000B 5G LAN 1x Intel® I226V 2.5G LAN |
Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
WiFi & Bluetooth | Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM |
LED FEATURE | 4x EZ Debug LED 1x EZ Digit Debug LED |

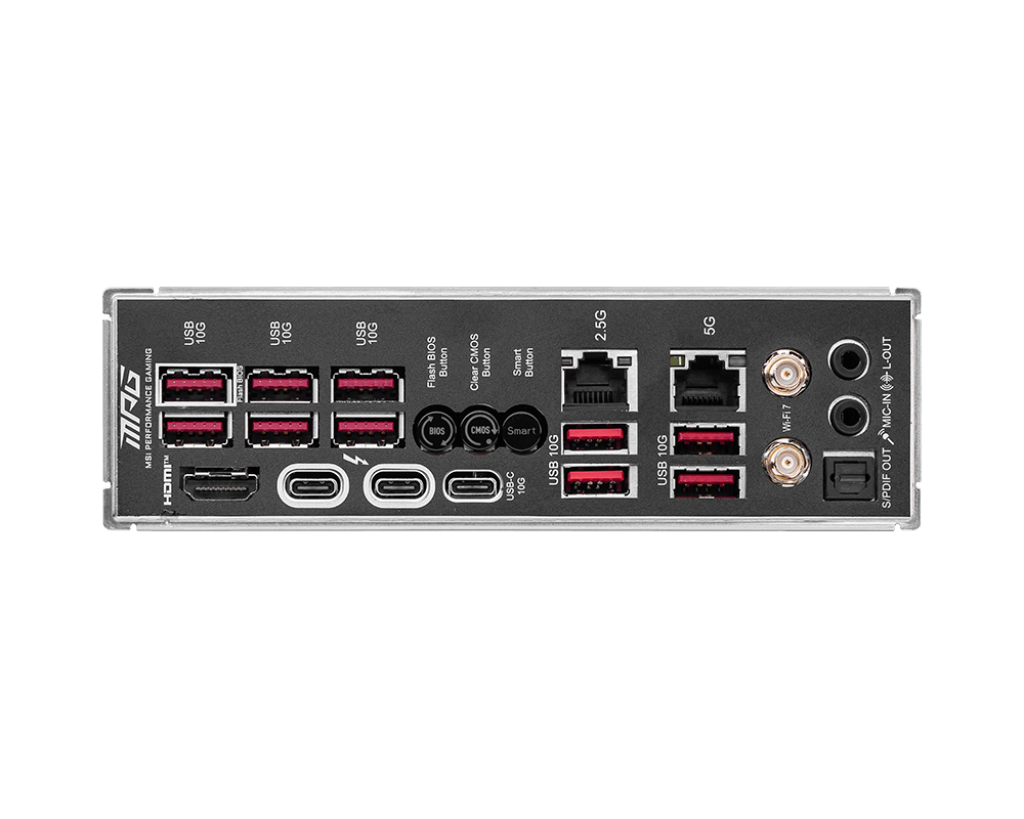

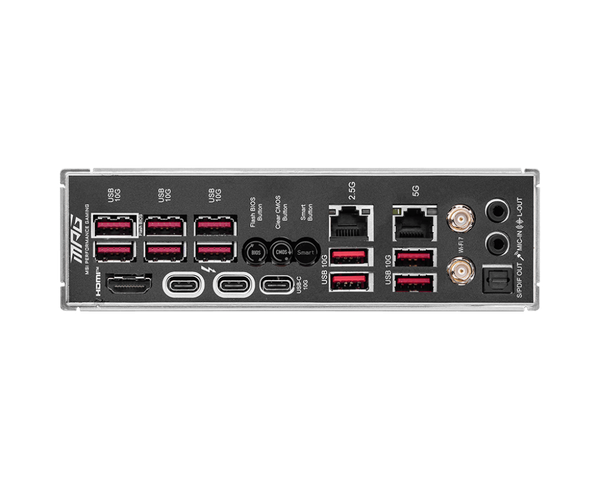

BACK PANEL PORTS | USB 10Gbps Type-A Flash BIOS Button Clear CMOS Button Smart Button 2.5G LAN 5G LAN Audio Connectors HDMI™ Thunderbolt 4 USB 10Gbps Type-C USB 10Gbps Type-A Wi-Fi / Bluetooth Optical S/PDIF Out |
OS | Support for Windows® 11 64-bit |
Phụ kiện đi kèm | 1 x Wi-Fi Antenna 1 x M.2 Clip II 1 x M.2 Clip II Remover 1 x 1 to 3 Conn-Cable (V2) 1 x USB Drive 2 x Sata Cables 1 x ARGB Extension Cable 1 x 1 to 2 RGB Extension Cable 1 x Front panal cable |
Kích thước | ATX (243.84 x 304.8mm) |
Bảo hành | 36 Tháng |
