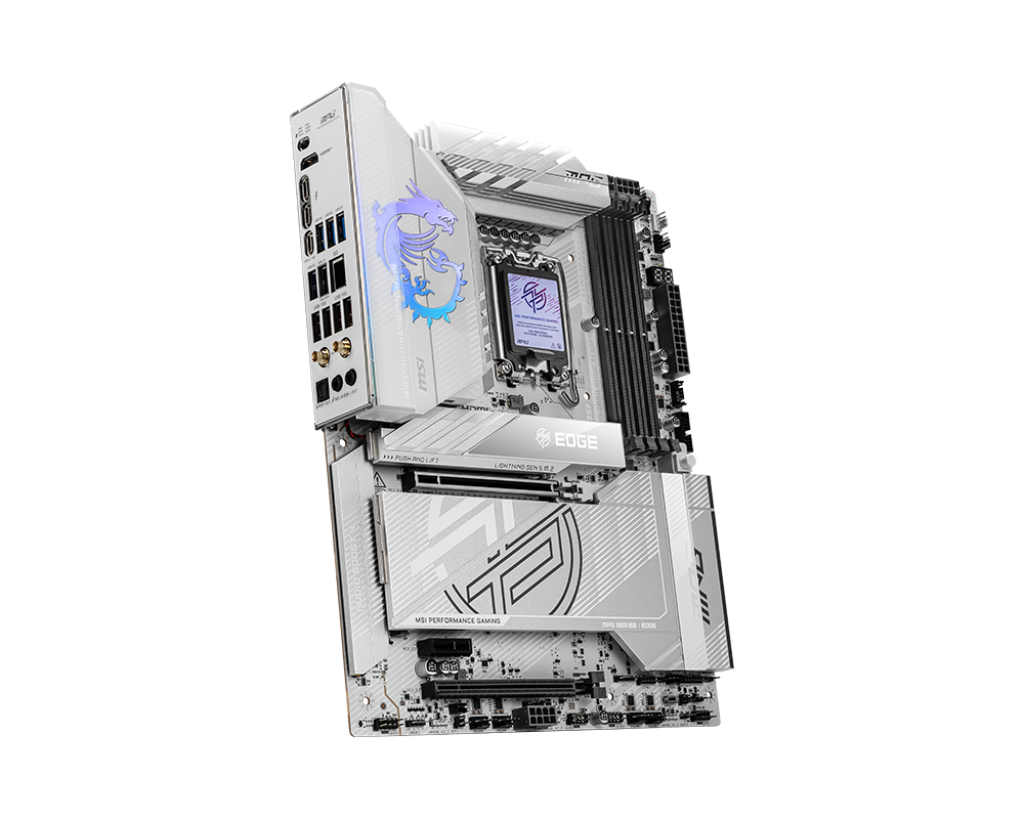

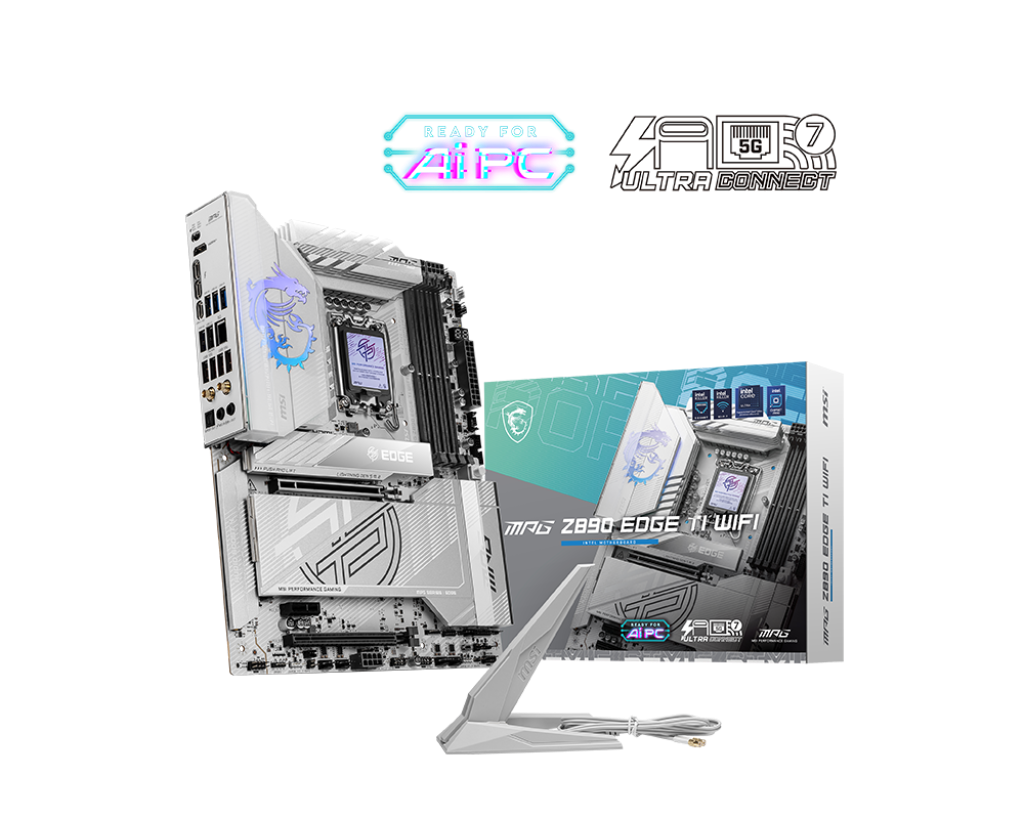

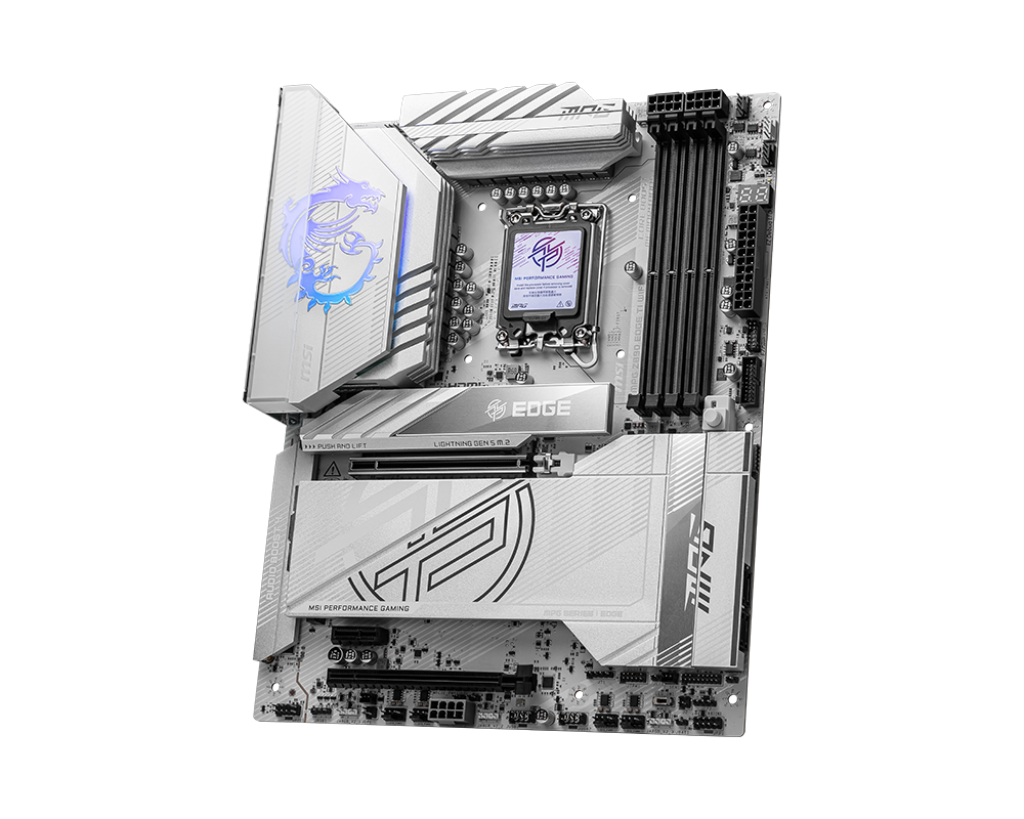

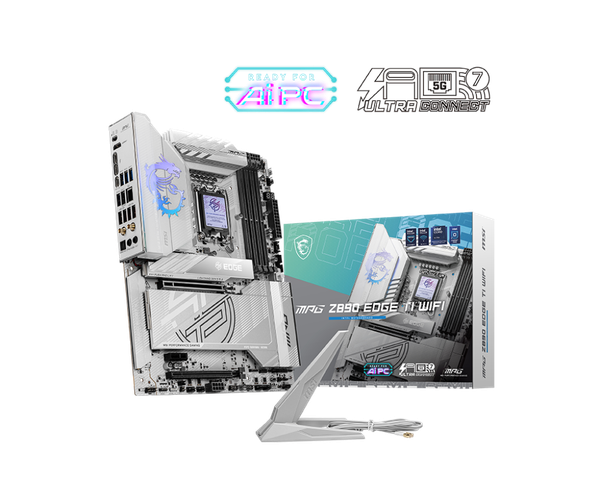

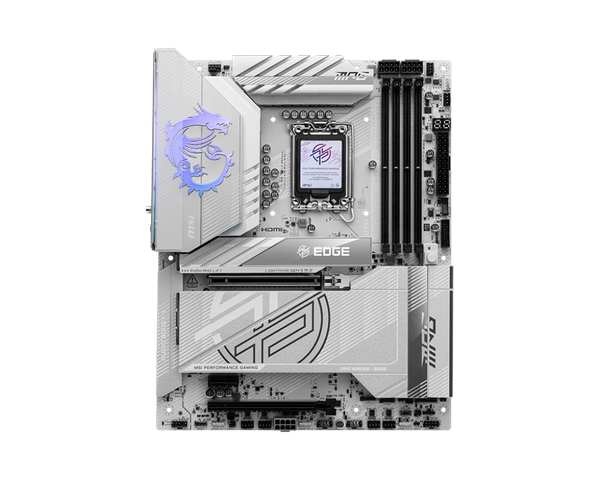

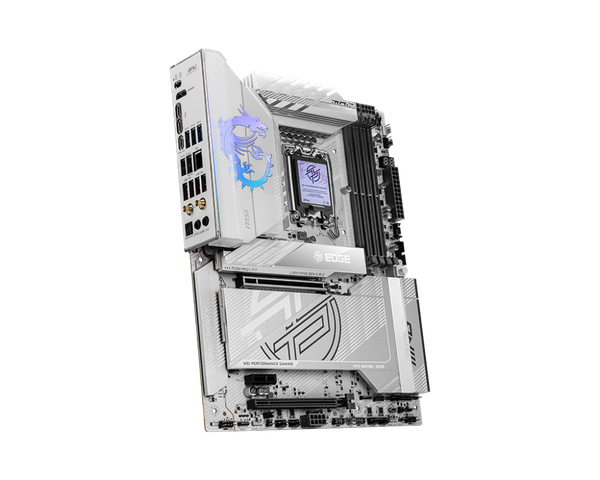

Mainboard - MSI MPG Z890 EDGE TI WIFI (Intel Z890, Socket 1851, ATX, DDR5)

Thương hiệu: MSI
|
Loại: Mainboard
12,690,000₫
Tiêu đề:
CAM KẾT BÁN HÀNG
  • Hàng chính hãng. Nguồn gốc rõ ràng Hàng chính hãng. Nguồn gốc rõ ràng
  • Hỗ trợ giao hàng toàn quốc Hỗ trợ giao hàng toàn quốc
  • Bảo hành chính hãng toàn quốc Bảo hành chính hãng toàn quốc
Chính Sách Bán Hàng

Hỗ trợ đổi mới trong vòng 7 ngày.

Bảo hành chính hãng 36 tháng toàn quốc.

Hỗ trợ trả góp lãi suất 0% qua MPOS.

Hỗ trợ giao hàng toàn quốc.

Mô tả sản phẩm

Mainboard - MSI MPG Z890 EDGE TI WIFI (Intel Z890, Socket 1851, ATX, DDR5)

Thông Số Kỹ Thuật

Hãng sản xuất

MSI

Model

MPG Z890 EDGE TI WIFI

Chipset

Intel Z890

Hỗ trợ CPU

Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851

Bộ nhớ RAM

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
- 1DPC 1R Max speed up to 9200+ MT/s
- 1DPC 2R Max speed up to 7200+ MT/s
- 2DPC 1R Max speed up to 4800+ MT/s
- 2DPC 2R Max speed up to 4800+ MT/s

Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

Đồ họa tích hợp

1x HDMI™
Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
ThundeboltTM 4 ports, supporting DisplayPort 1.4 with HBR3 over USB Type-C, with a maximum resolution of 8K@60Hz

Khe mở rộng

2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Audio

Realtek® ALC1220P Codec
7.1-Channel USB High Definition Audio
Supports S/PDIF output

Khe lưu trữ

5x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices
4x SATA 6G

Onboard Thunderbolt

2x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display

USB

1x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
4x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)

LAN

1x Intel® Killer™ E5000B 5G LAN

Wifi & Bluetooth

Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM

Internal IO

1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

LED FEATURE

4x EZ Debug LED
1x EZ Digit Debug LED

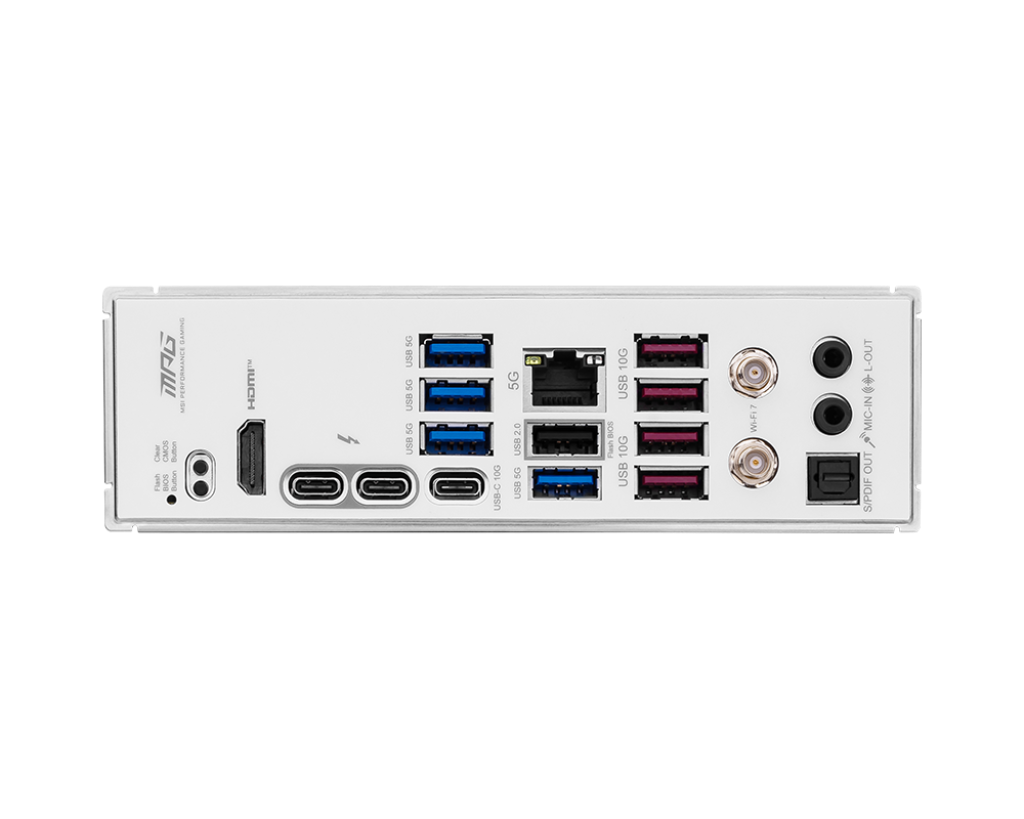

BACK PANEL PORTS

USB 5Gbps Type-A

5G LAN

USB 10Gbps Type-A

Wi-Fi / Bluetooth

Audio Connectors

Clear CMOS Button

Flash BIOS Button

HDMI™

Thunderbolt 4

USB 10Gbps Type-C

USB 2.0

Optical S/PDIF Out

OS

Support for Windows® 11 64-bit

Phụ kiện đi kèm

1 x Wi-Fi Antenna
3 x M.2 Clip II
1 x M.2 Clip II Remover
1 x M.2 Screw / Standoff Set
1 x USB Driver
2 x Sata Cables
1 x 1 to 3 Conn-Cable (V2)
1 x Front panal cable
1 x Hướng dẫn sử dụng

Kích thước

ATX (243.84 x 304.8mm)

Bảo hành

36 Tháng
