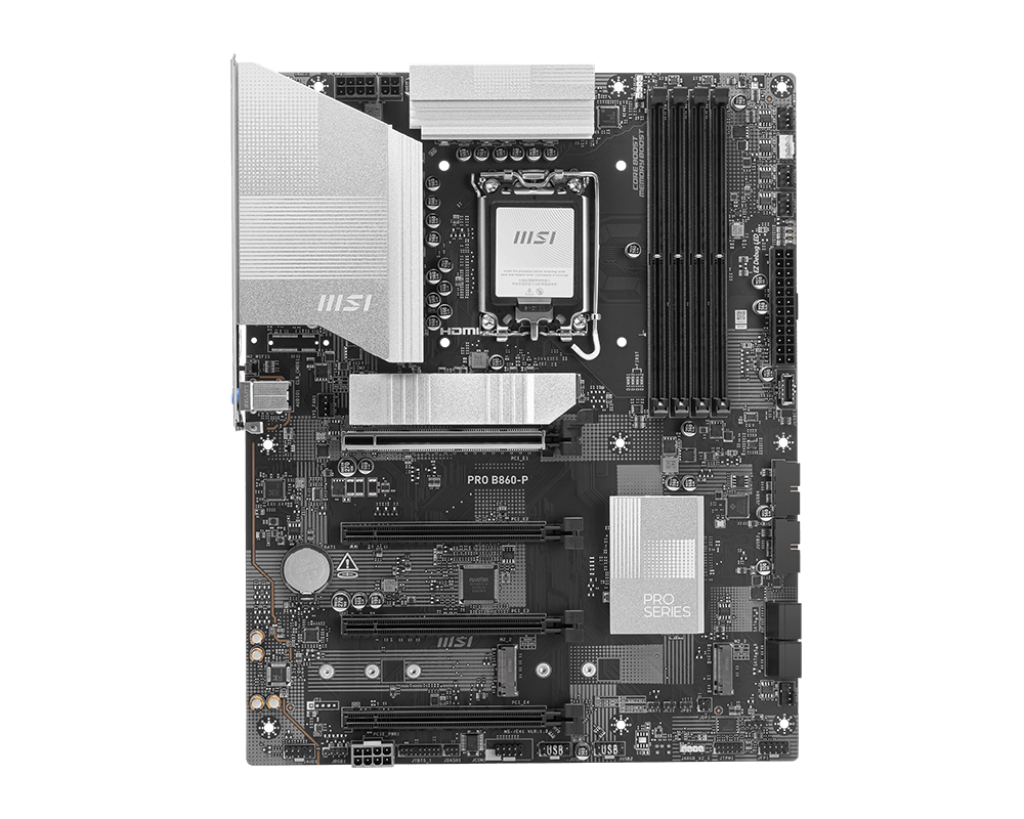

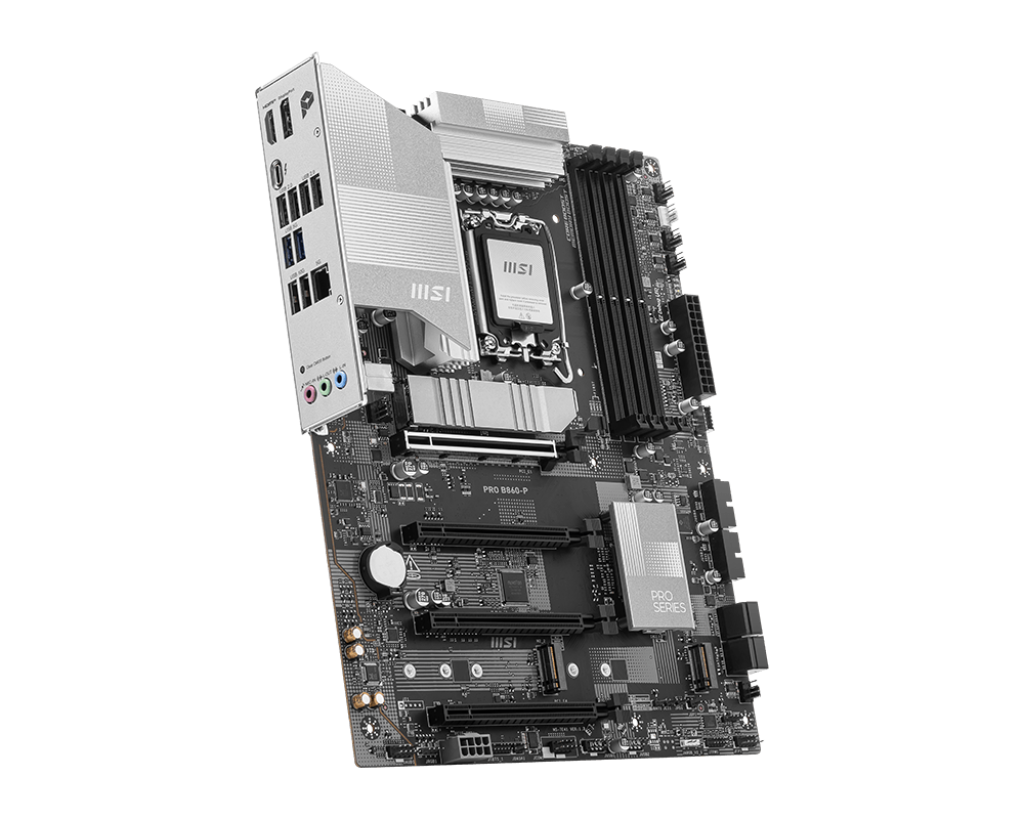

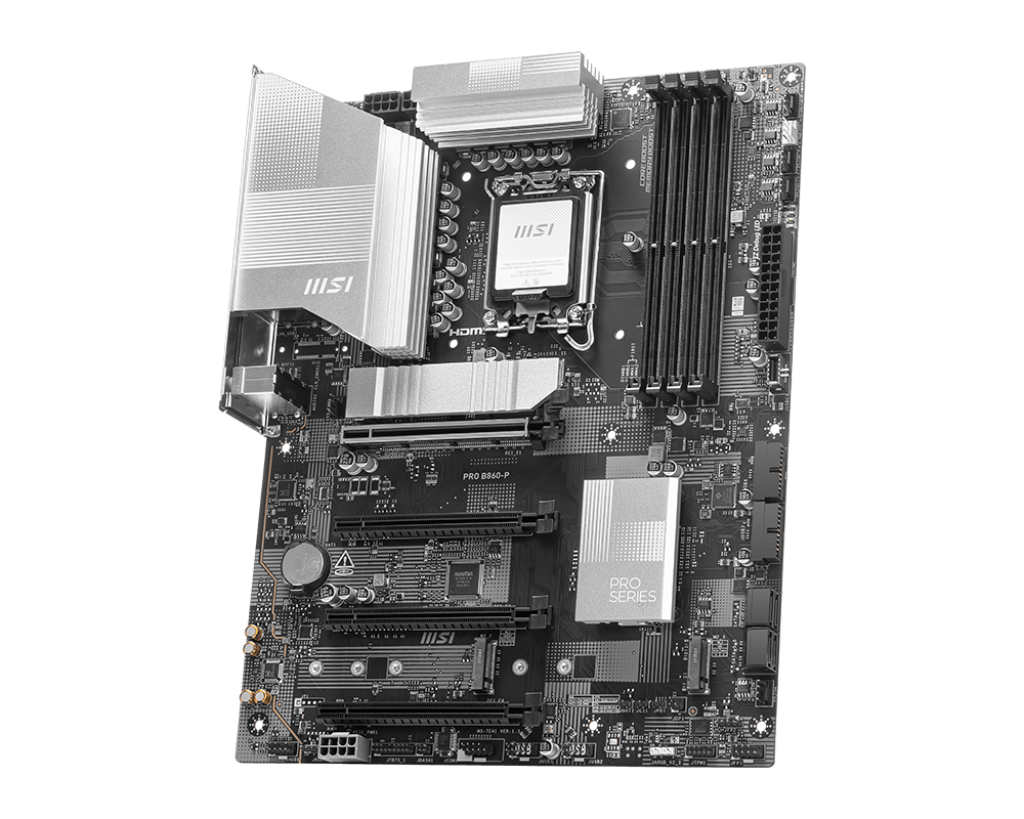

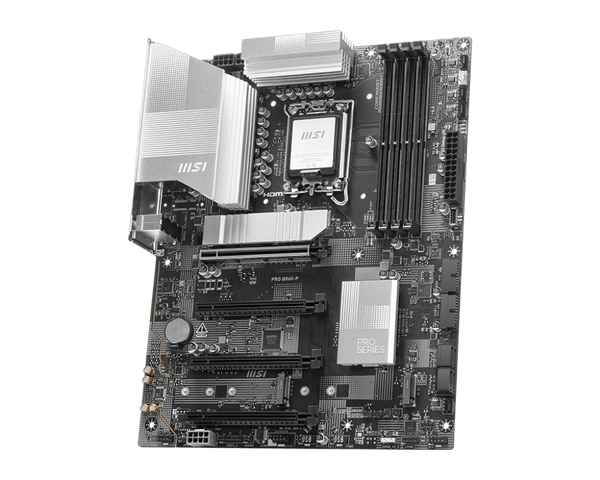

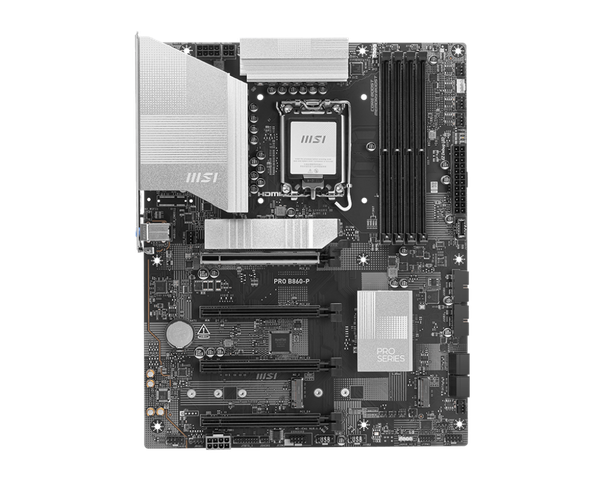

Mainboard - MSI PRO B860-P

Hãng sản xuất

MSI

Model

PRO B860-P

Hỗ trợ CPU

Intel® Core™ Ultra Processors (Series 2)
LGA1851

Chipset

Intel B860

Bộ nhớ RAM

4x DDR5 UDIMM
Maximum Memory Capacity 256GB Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Đồ họa

1x HDMI™ Support HDMI 2.1, maximum resolution of 4K 60Hz
1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

Khe cắm mở rộng

4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)

Khe lưu trữ

3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G

LAN

Realtek® 8126 5Gbps LAN

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)

Âm thanh

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

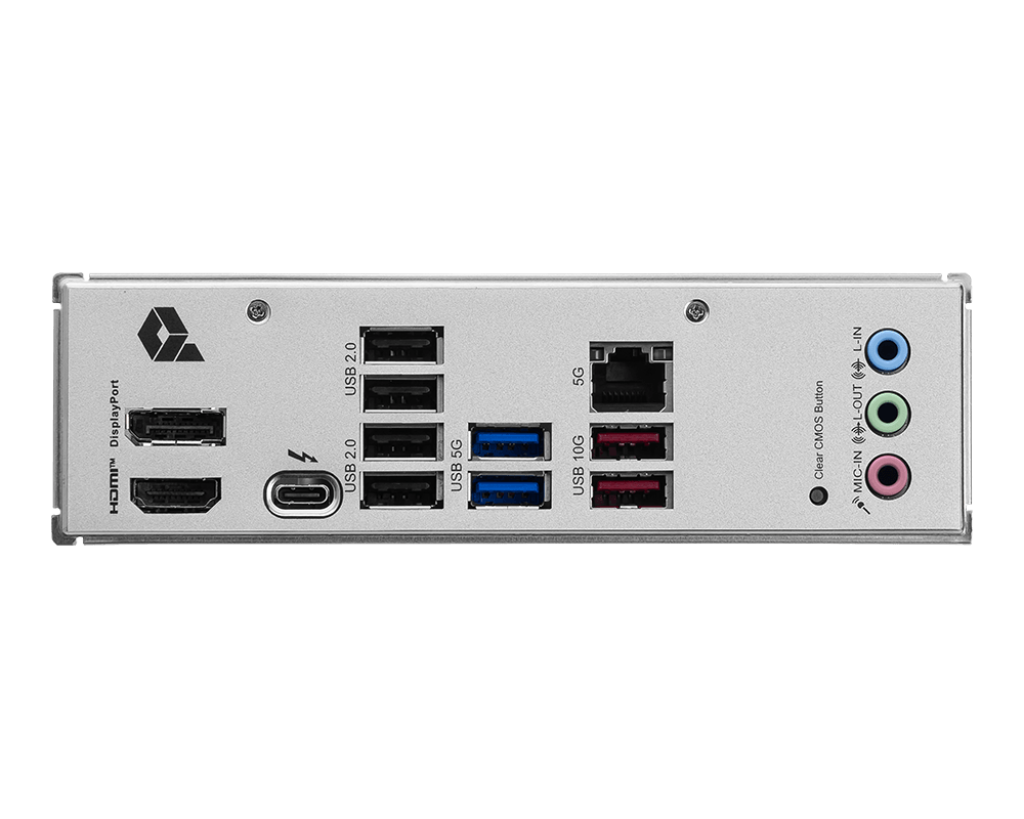

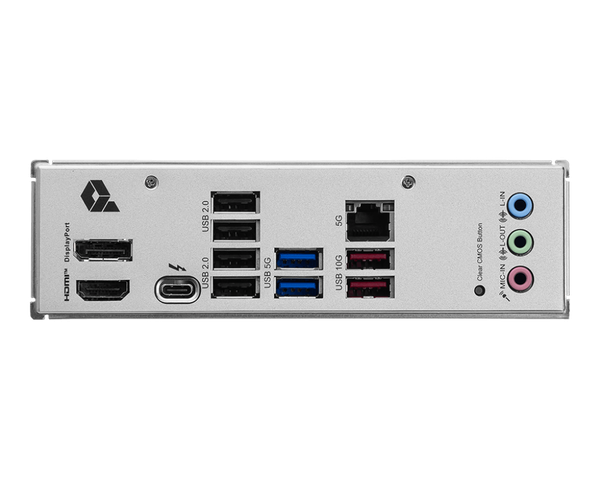

I/O mặt sau

1x DisplayPort
4x USB 2.0
2x USB 5Gbps Type-A
1x 5G LAN
1x Audio Connectors
1x HDMI™
1x Thunderbolt™ 4 40Gbps (Type-C)
2x USB 10Gbps Type-A
Clear CMOS Button

I/O nội bộ

1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

OS

Windows 11 64-bit

Kích thước

ATX (243.84 x 304.8mm)

Bảo hành

36 Tháng
