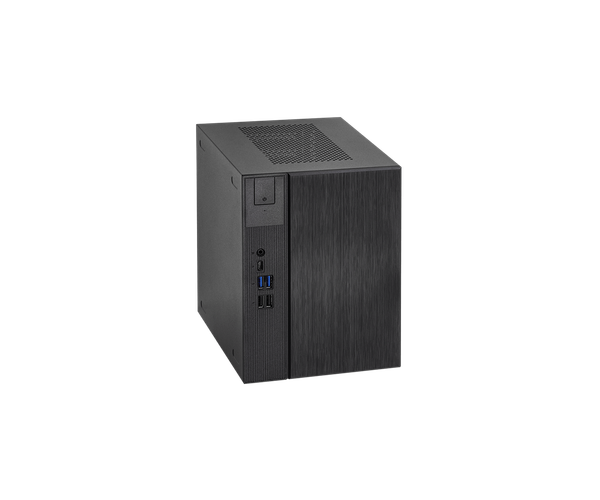

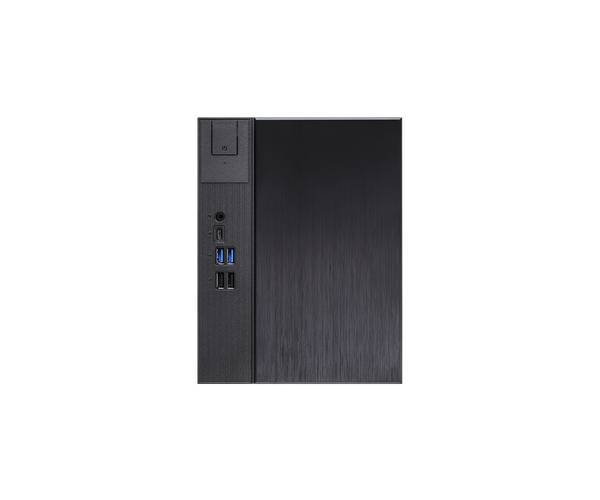

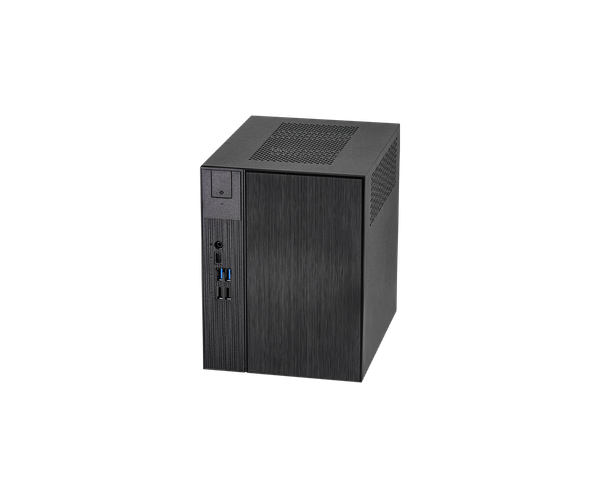

Mini PC - Asrock DeskMeet X600 BAREBONE

Hãng Sản Xuất

Asrock

Model

DeskMeet X600

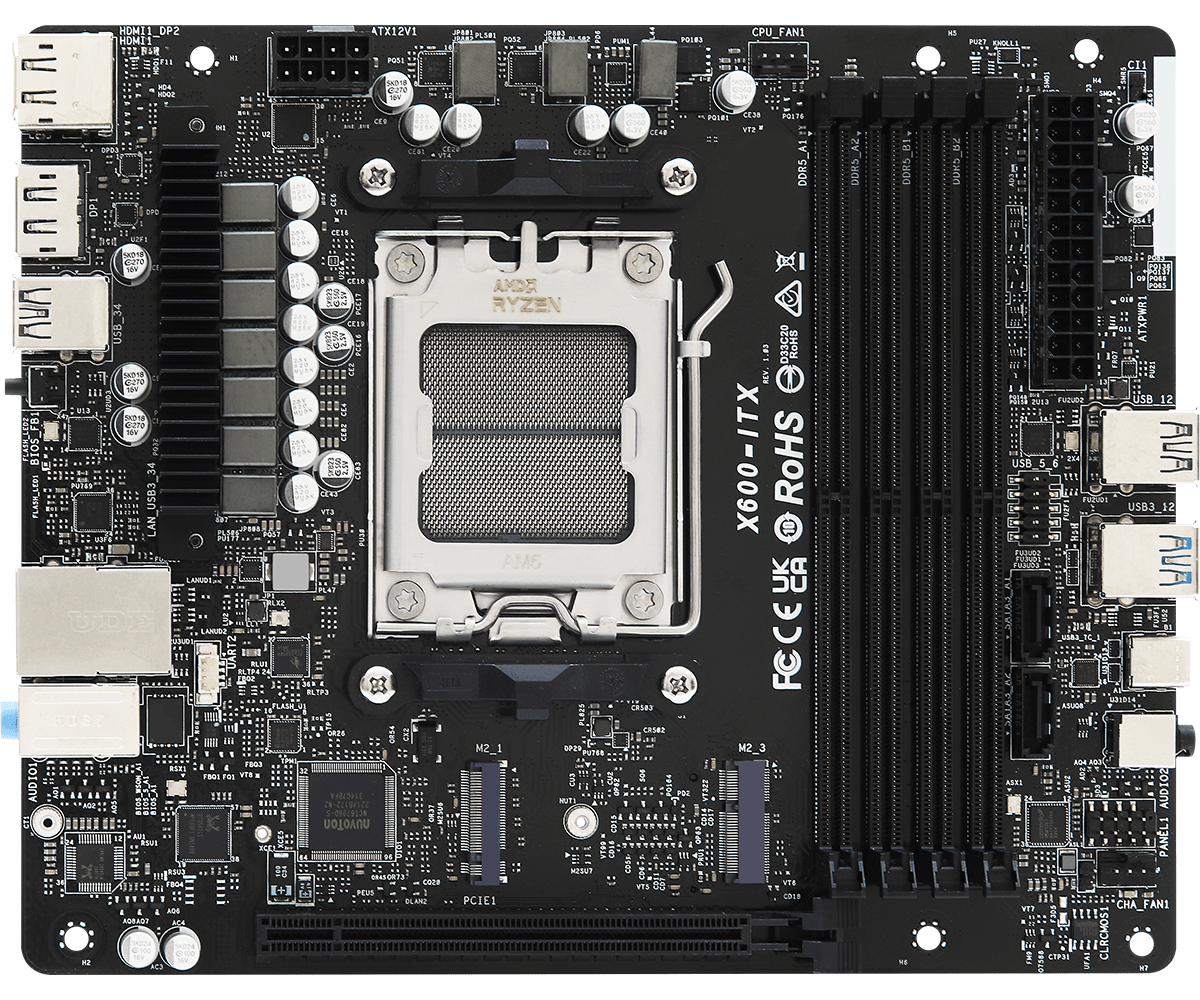

CPU

Hỗ trợ AMD Socket AM5 Ryzen 8000 và 7000 Series

Chipset

AMD X600

Cooler

AMD AM4/AM5 Cpu Cooler (Max. Height ≦ 54mm)

Memory

Hỗ trợ 4 x DDR5 DIMMs, up to 7200+ MHz (OC), 256GB

VGA

Hỗ trợ card màn hình rời tối đa 200mm

Audio

Realtek ALC897 Audio Codec

Storage

2 x Sata3 6.0Gb/s ports
1 x Blazing M.2 Socket (M2_1), supports type 2280 PCIe Gen5x4 (128Gb/s)
1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen 4x4 (64Gb/s)

LAN

2.5 Gigabit Lan (Dragon RTL8125BG)

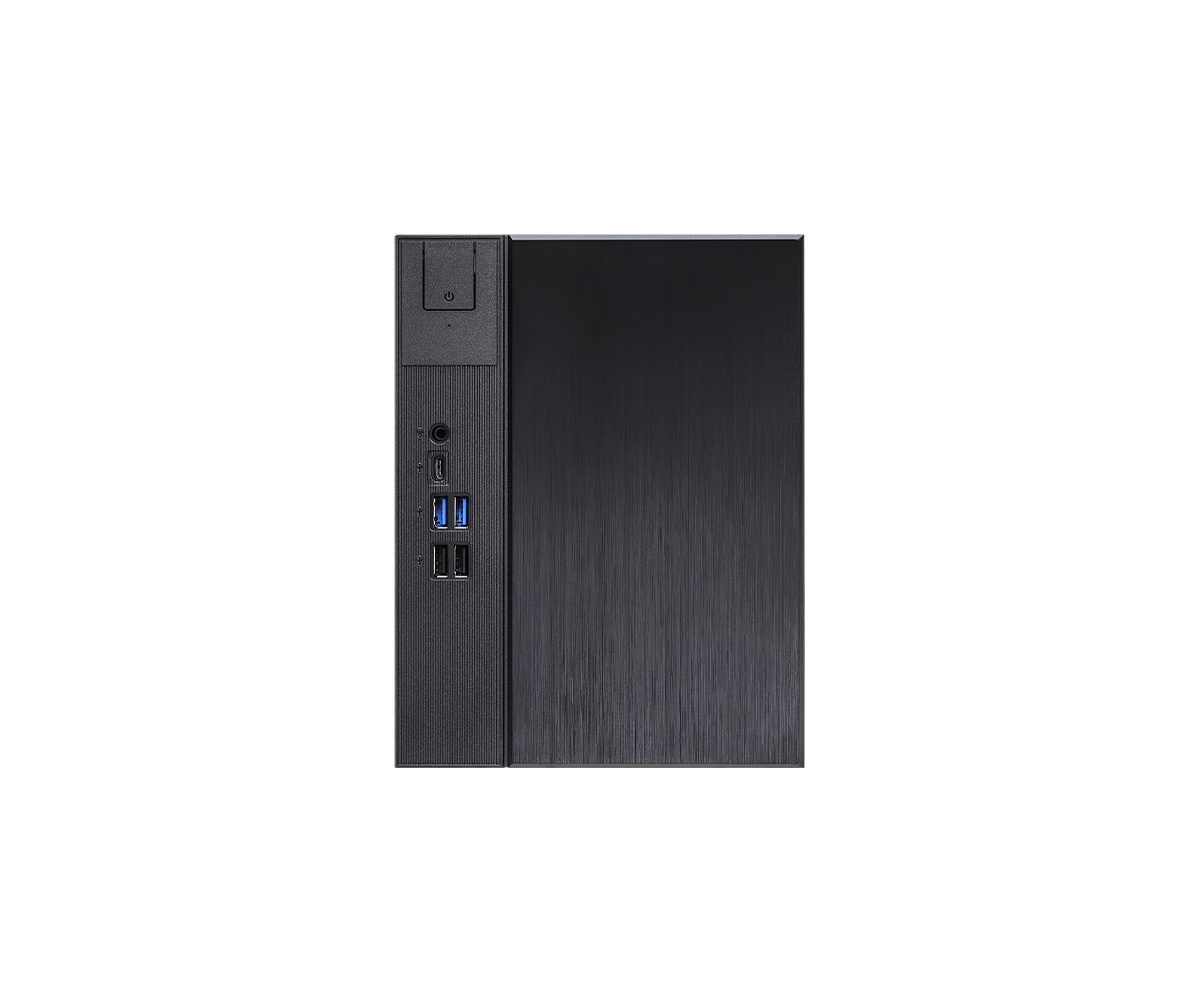

Front I/O

1 x Headphone/Headset Jack
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A

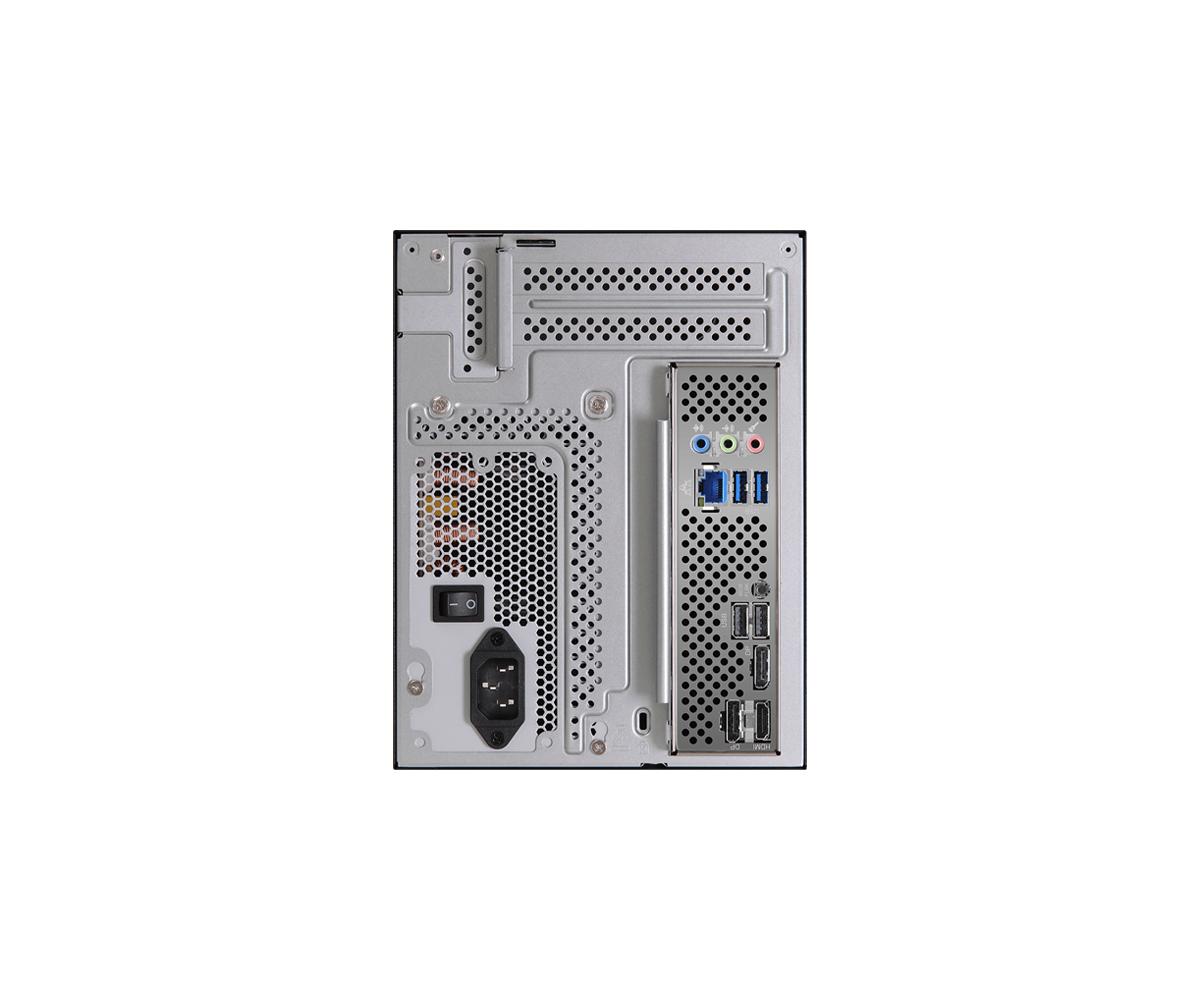

Rear I/O

2 x DisplayPort 1.4
1 x HDMI
2 x USB 2.0 Type-A
2 x USB 3.2 Gen1 Type-A
1 x RJ-45 LAN Port
Bios Flashback Switch
HD Audio: Line in / Front Speaker / Microphone

Connectors

1 x Chassis Intrusion Header
1 x CPU Fan Connector (4-pin)
1 x Chassis/Water Pump Fan Connector (4-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Header
1 x USB 2.0 Header (Support 2 USB 2.0 ports) (Supports ESD Protection)

Volume (liters)

8L

Power Unit

500W power supply (80+ Bronze, peak 550W)

Phụ kiện đi kèm

Quick Installation Guide
2 x Sata data cables
1 x Screws Package

Kích Thước

168 x 219.3 x 218.3 mm

OS

Microsoft Windows 10 64-bit / 11 64-bit

Bảo hành

12 tháng
