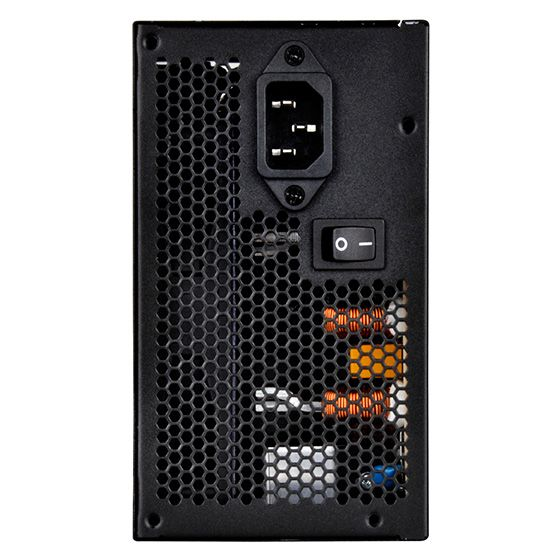

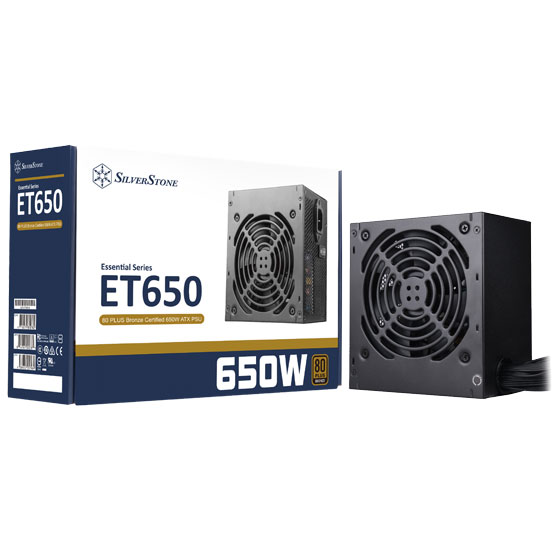

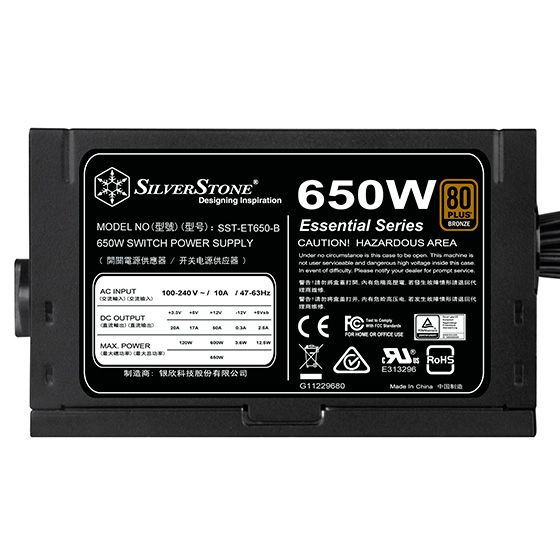

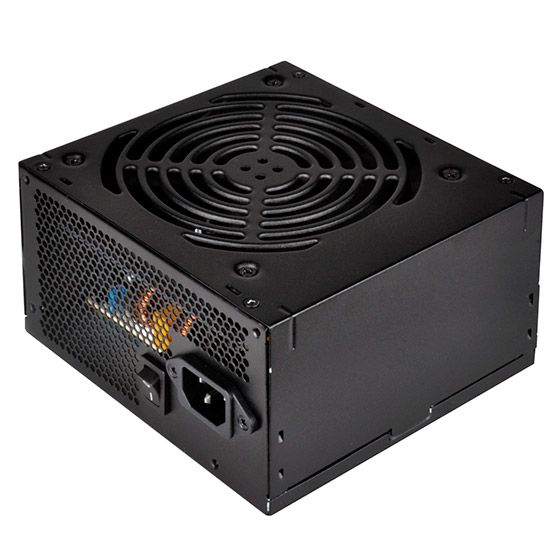

Nguồn Máy Tính - SilverStone Essential Series ET650-B 80Plus Bronze

Hãng sản xuất

SilverStone

Model

SST-ET650-B

Max. DC Output

650W

Power density

360W per liter

Màu sắc

Đen (Lead-Free Paint)

Combined +3.3V & +5V

120W

Combined +12V

600W

Input Voltage

100 ~ 254 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC (PF>0.9 at full load)

Efficiency

82% ~ 85% @ 20% ~ 100% loading

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over current protection
Over power protection
Over voltage protection
Shot circuit protection
Over temperature protection

Connectors

V1.1
1 x 24 / 20-Pin motherboard connector（500mm）
1 x 8 / 4-Pin EPS / ATX 12V connector (750mm)
4 x 8 / 6-Pin PCIE connector（"500mm / 150mm" x 2）
6 x SATA connector（"500mm / 150mm / 150mm" x 2）
3 x 4-Pin Peripheral connector（500mm / 150mm / 150mm）
1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm)

V1.4
1 x 24 / 20-Pin motherboard connector（500mm）
1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (750mm / 150mm)
4 x 8 / 6-Pin PCIE connector（"500mm / 150mm" x 2）
6 x SATA connector（"500mm / 150mm / 150mm" x 2）
3 x 4-Pin Peripheral connector（500mm / 150mm / 150mm）
1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm）

Colling System

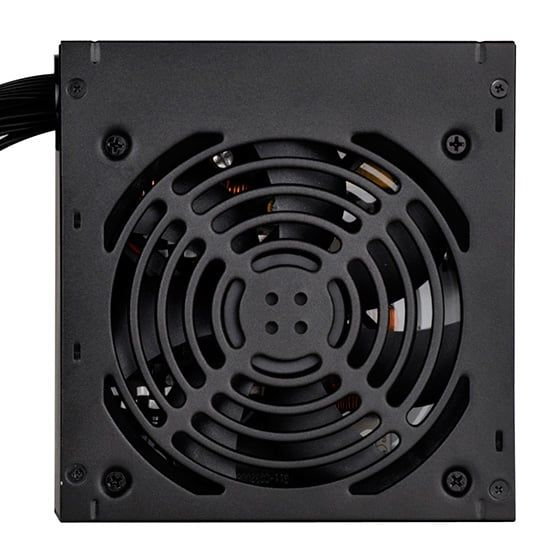

Single 120mm silent fan

Form factor

ATX

Noise Level

18dBA minimum

Kích thước

150 x 86 x 140mm

Cân nặng

1.59Kg

Chuẩn nguồn

80 Plus Bronze

Bảo hành

36 tháng
