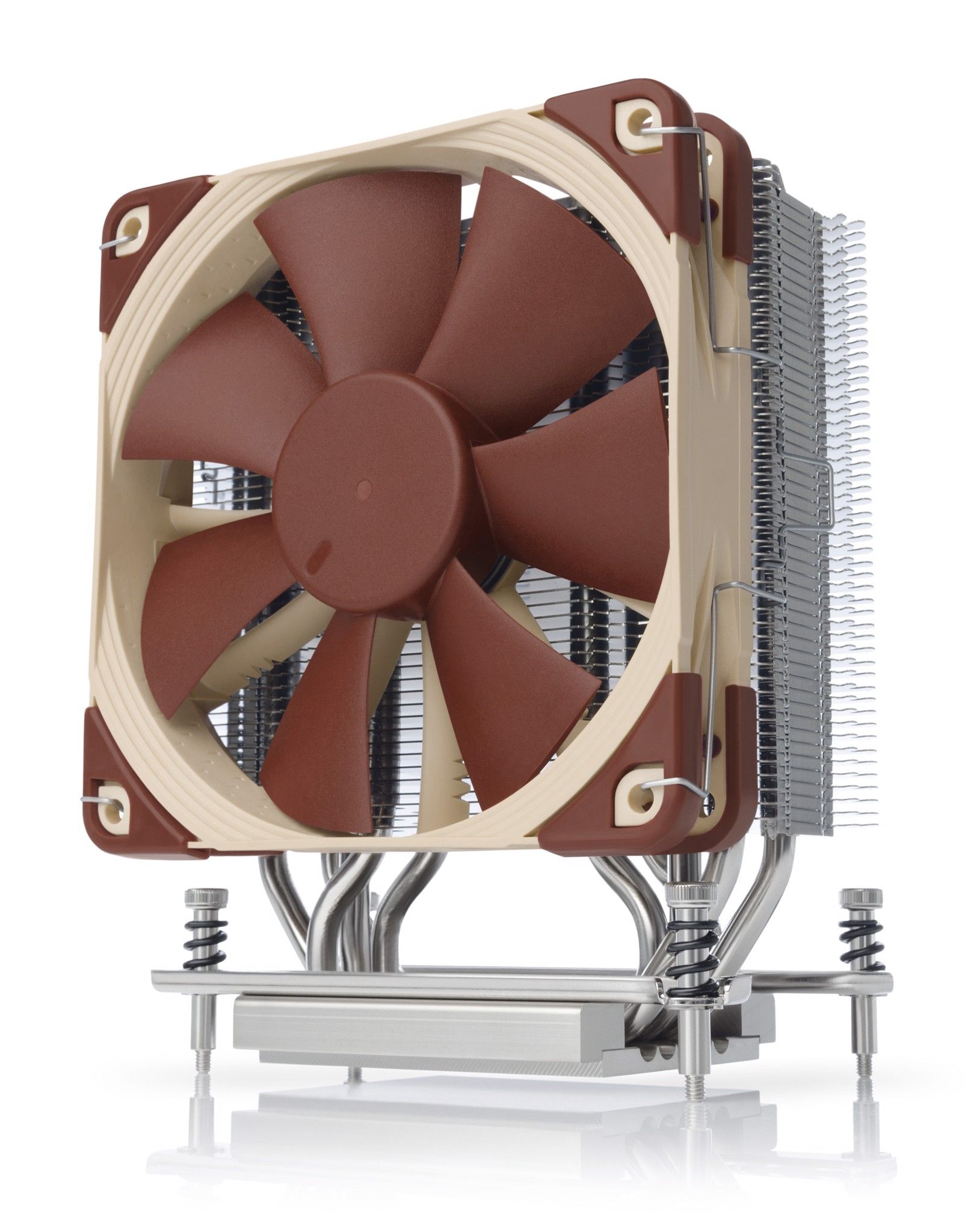

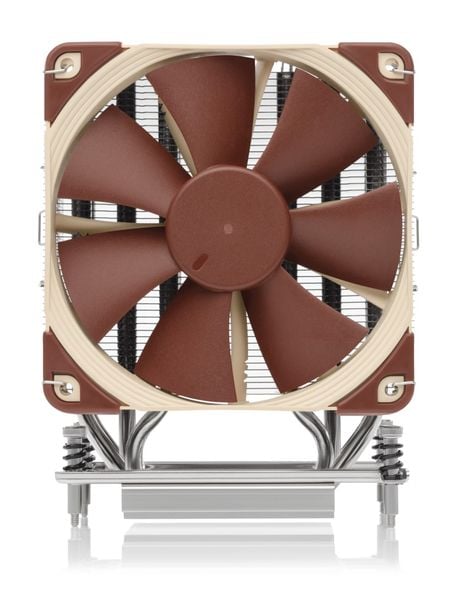

Tản Nhiệt Khí NH-U12S TR4-SP3

Notes and warnings

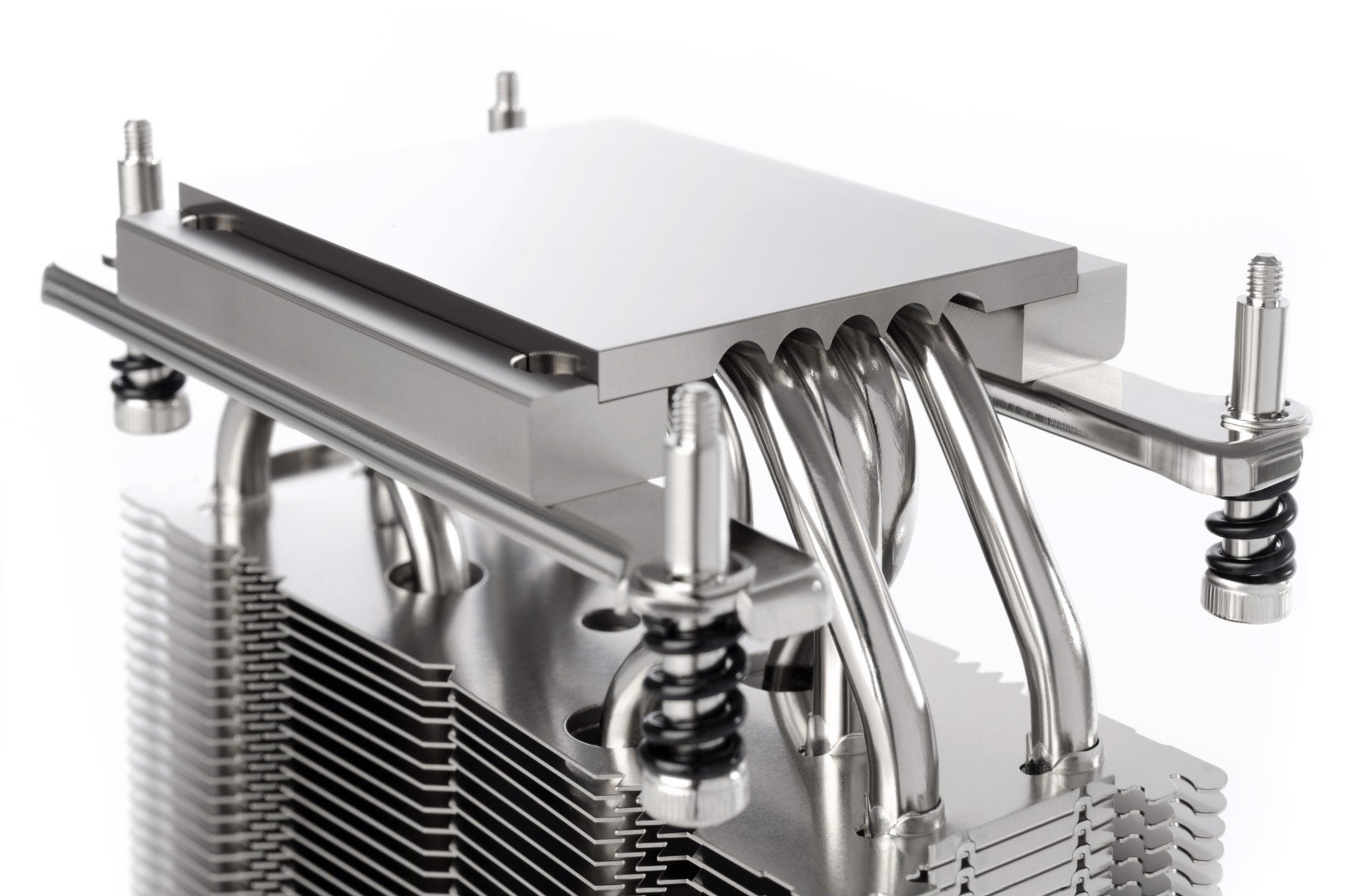

Please note that the NH-U12S TR4-SP3 is a dedicated version for the AMD sTRX4/TR4/SP3 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.

Socket compatibility

AMD sTRX4, TR4, SP3

Height (without fan)

158 mm

Width (without fan)

125 mm

Depth (without fan)

45 mm

Weight (without fan)

695 g

Height (with fan)

158 mm

Width (with fan)

125 mm

Depth (with fan)

71 mm

Weight (with fan)

870 g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Max. TDP

see CPU compatibility list

Fan compatibility

120x120x25

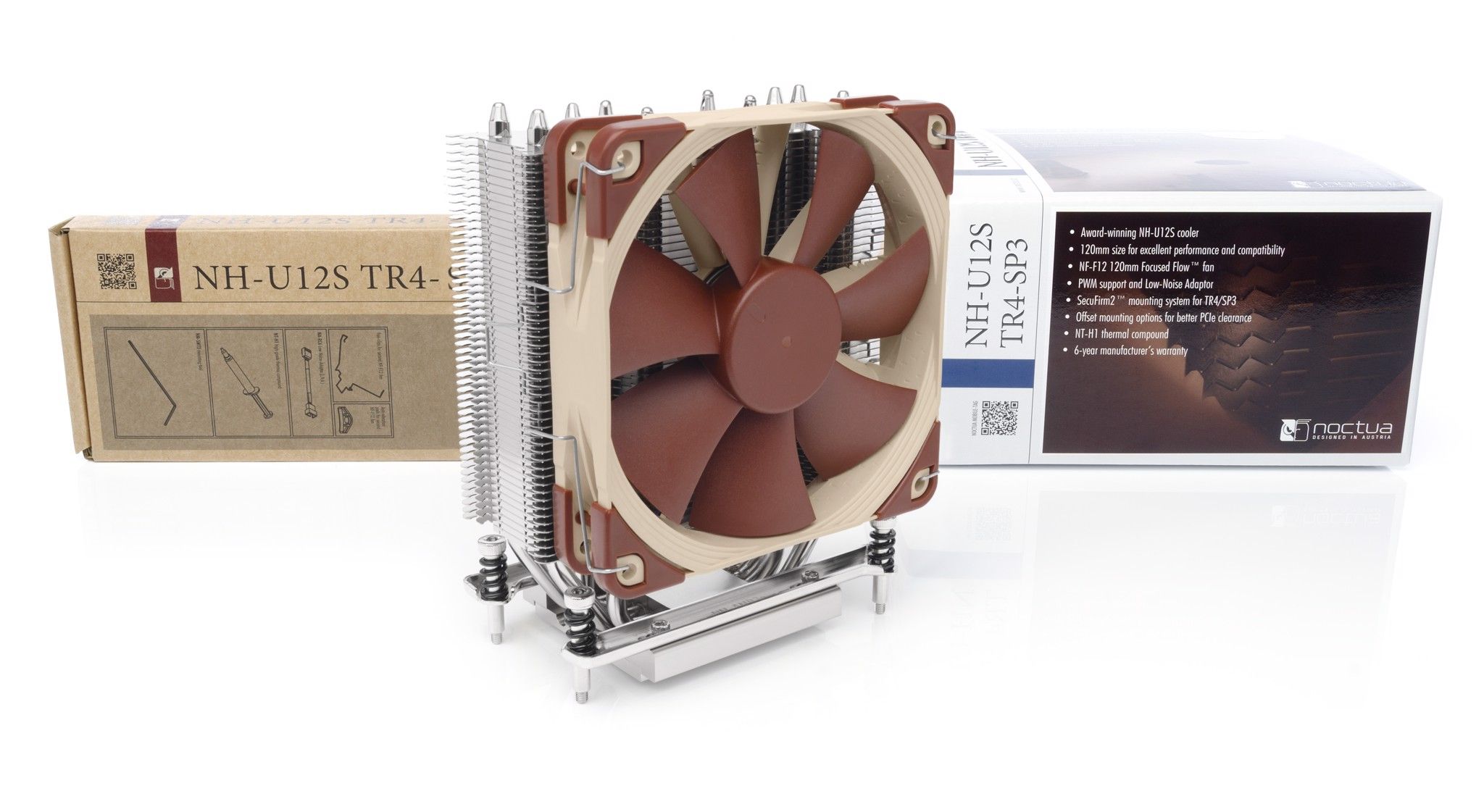

Scope of delivery

• NF-F12 PWM premium fan
• Low-Noise Adaptor (L.N.A.)
• NT-H1 high-grade thermal compound
• SecuFirm2™ sTRX4/TR4/SP3 mounting-kit
• Anti-vibration pads and fan-clips for second NF-F12
• Noctua metal case-badge

Warranty

6 Years

Model

Noctua NF-F12 PWM

Bearing

SSO2

Max. rotational speed (+/- 10%)

1500 RPM

Max. rotational speed with L.N.A. (+/- 10%)

1200 RPM

Min. rotational speed (PWM, +/-20%)

300 RPM

Max. airflow

93,4 m³/h

Max. airflow with L.N.A.

74,3 m³/h

Max. acoustical noise

22,4 dB(A)

Max. acoustical noise with L.N.A.

18,6 dB(A)

Input power

0,6 W

Voltage range

12 V

MTTF

> 150.000 h
