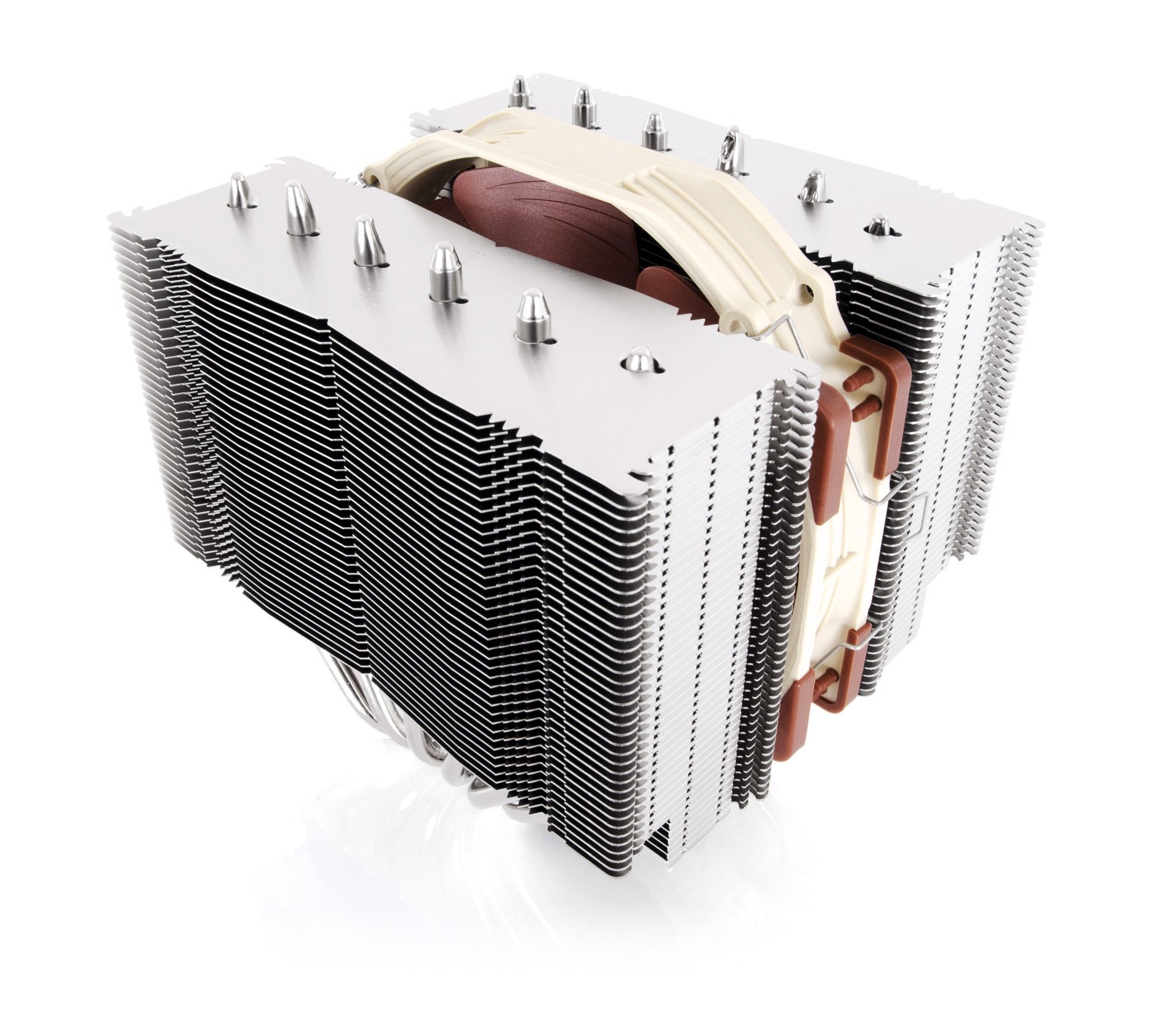

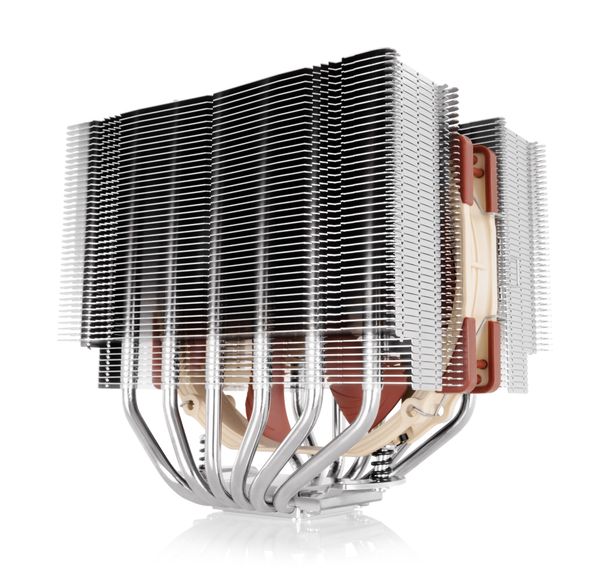

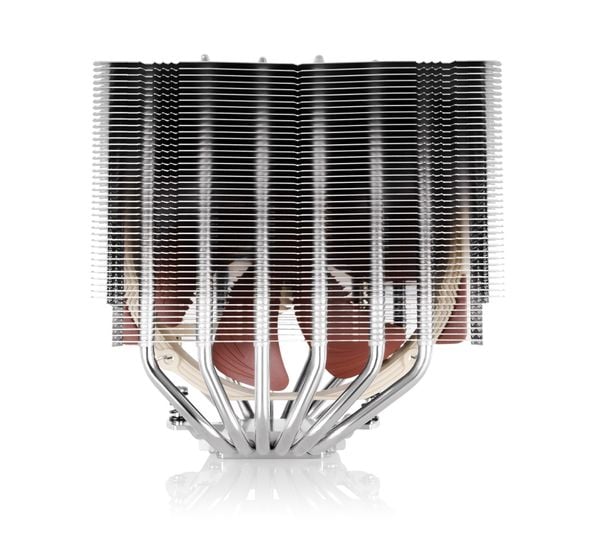

Tản Nhiệt Khí Noctua NH-D15S

Socket compatibility

Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 (included since 2019, older coolers require NM-AM4)

Height (without fan)

160 mm

Width (without fan)

150 mm

Depth (without fan)

135 mm

Weight (without fan)

980 g

Height (with fan)

160 mm

Width (with fan)

150 mm

Depth (with fan)

135 mm

Weight (with fan)

1150 g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Max. TDP

see CPU compatibility list

Fan compatibility

140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

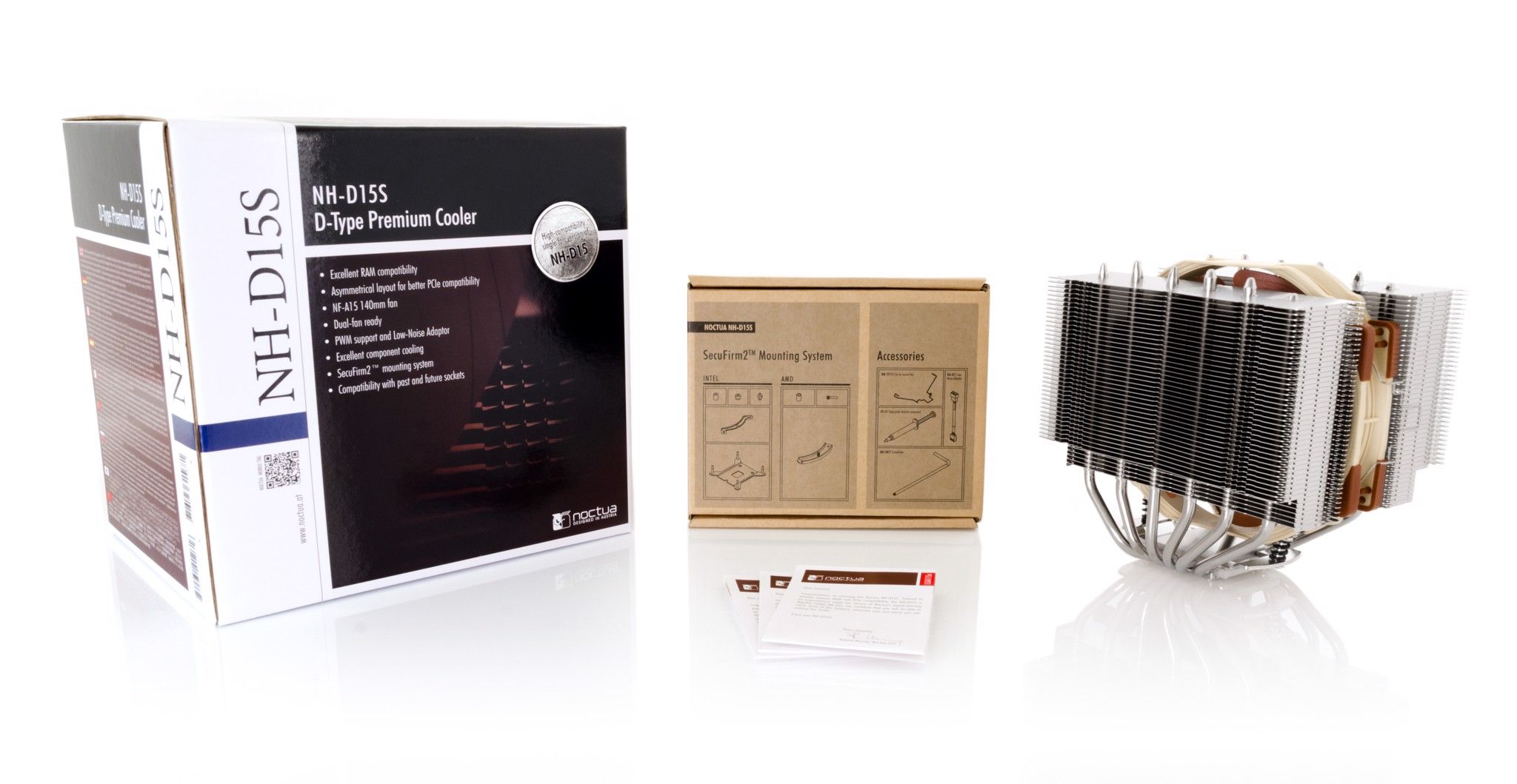

Scope of delivery

• 1x NF-A15 PWM premium fan
• Low-Noise Adaptor (L.N.A.)
• Fan clips for second fan
• NT-H1 high-grade thermal compound
• SecuFirm2™ Mounting Kit
• Noctua Metal Case-Badge

Warranty

6 Years

Model

1x Noctua NF-A15 PWM

Bearing

SSO2

Max. rotational speed (+/- 10%)

1500 RPM

Max. rotational speed with L.N.A. (+/- 10%)

1200 RPM

Min. rotational speed (PWM, +/-20%)

300 RPM

Max. airflow

140,2 m³/h

Max. airflow with L.N.A.

115,5 m³/h

Max. acoustical noise

24,6 dB(A)

Max. acoustical noise with L.N.A.

19,2 dB(A)

Input power

1,56 W

Voltage range

12 V

MTTF

> 150.000 h
