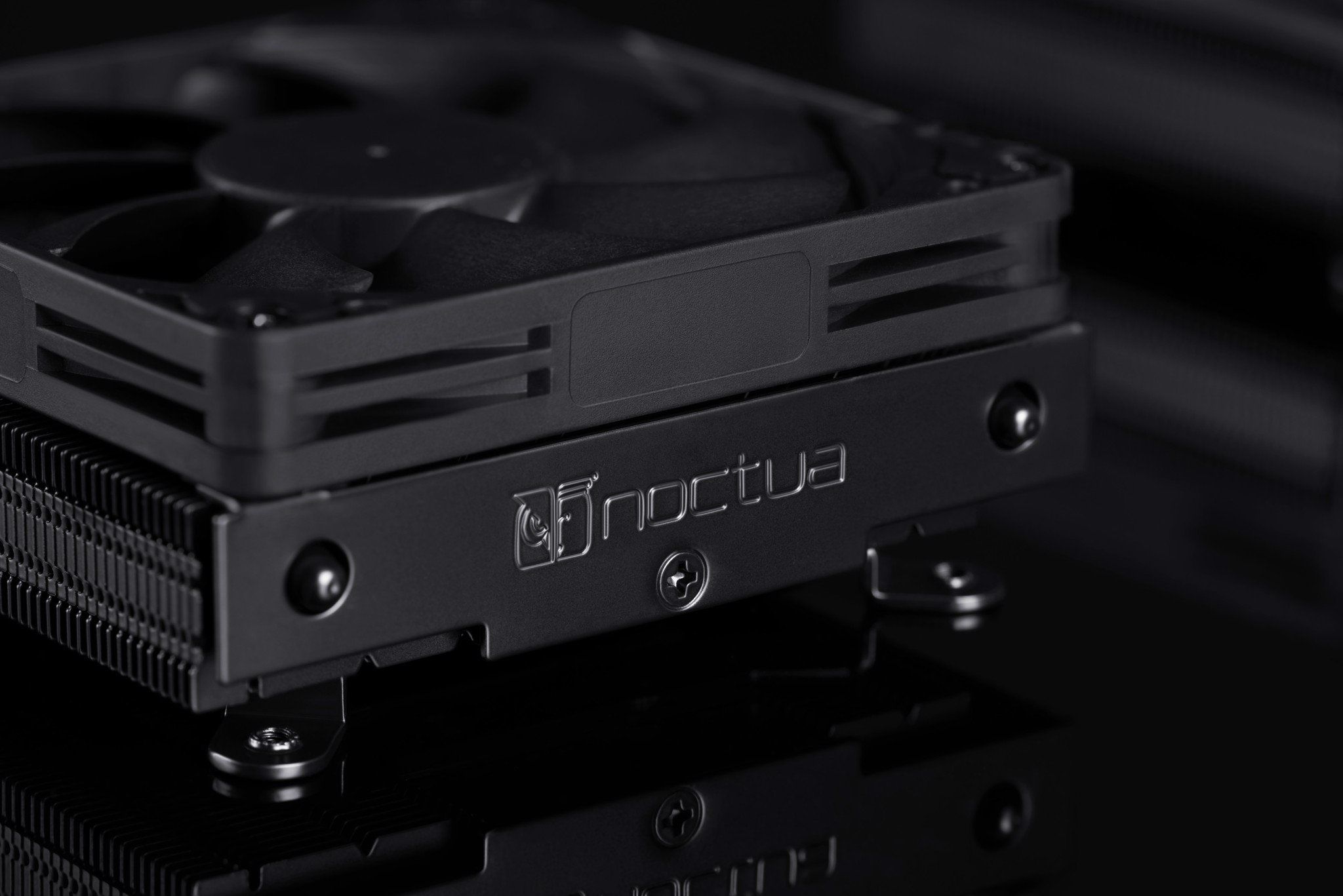

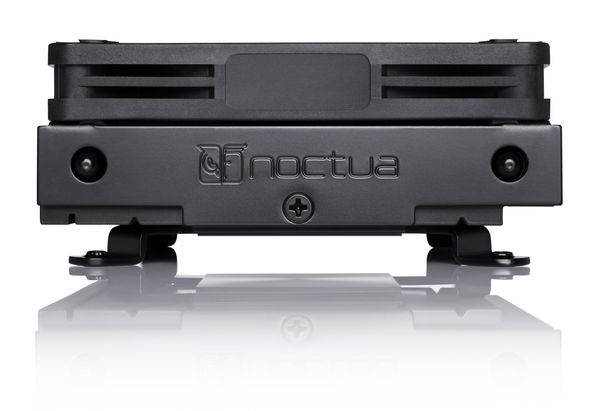

Tản Nhiệt Khí Noctua NH-L9i chromax.black

Notes and warnings

The NH-L9i is a highly-compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 65W TDP (Thermal Design Power). Please consult our CPU compatibility list and TDP guidelines to find out whether the NH-L9i is recommended for your CPU.

Socket compatibility

Intel LGA1150, LGA1151, LGA1155, LGA1156, AMD AM4 with NM-AM4-L9aL9i

Height (without fan)

23 mm

Width (without fan)

95 mm

Depth (without fan)

95 mm

Weight (without fan)

320 g

Height (with fan)

37 mm

Width (with fan)

95 mm

Depth (with fan)

95 mm

Weight (with fan)

380 g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Max. TDP

see CPU compatibility list

Fan compatibility

92x92x14mm, 92x92x25mm

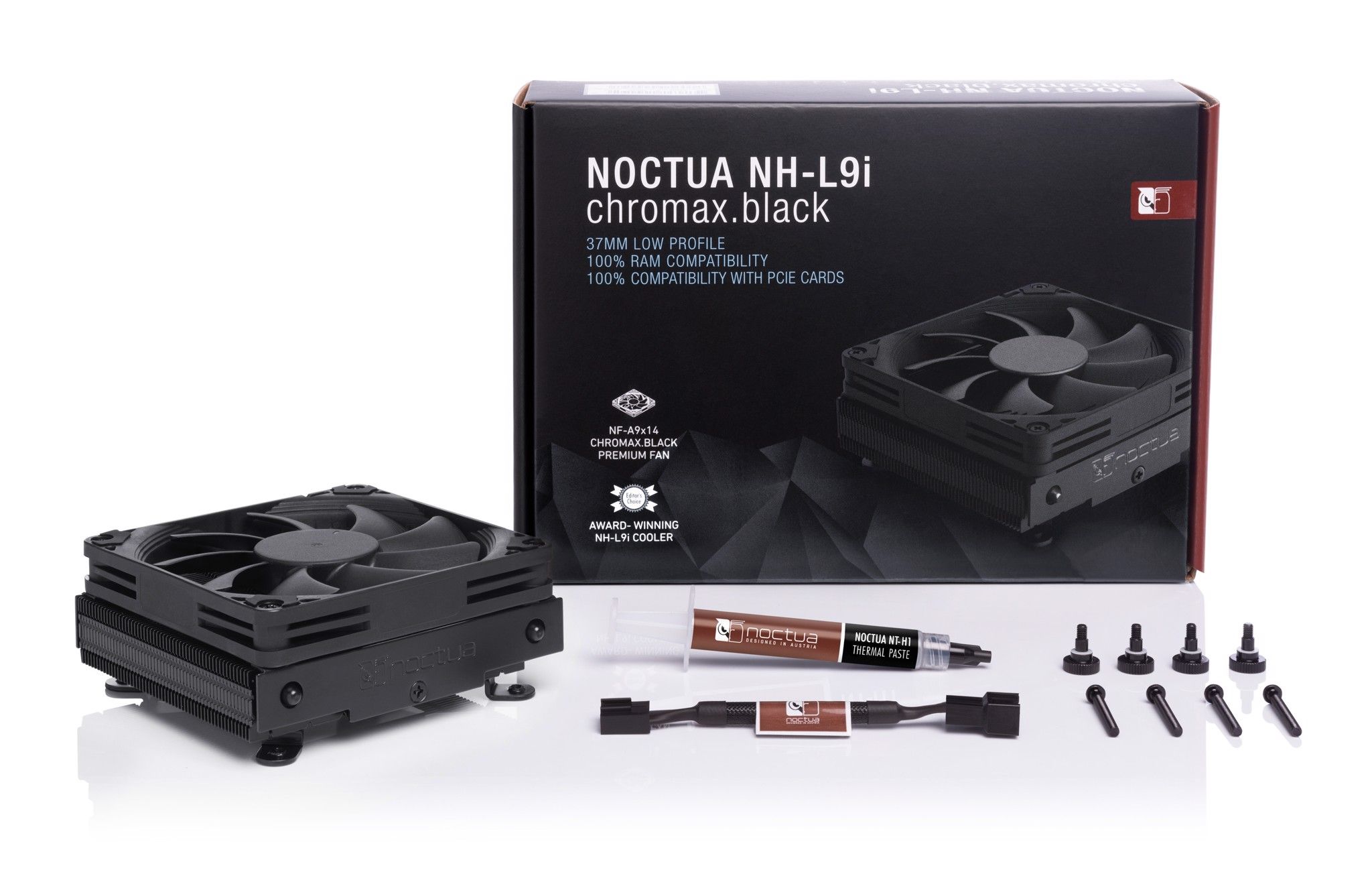

Scope of delivery

• Black coated NH-L9i heatsink
• NF-A9x14 HS-PWM chromax.black premium fan
• Low-Noise Adaptor (L.N.A.)
• NT-H1 high-grade thermal compound
• Black SecuFirm2™ Mounting Kit
• Black Screws for 92x92x25mm fans
• Noctua Metal Case-Badge

Warranty

6 Years

Model

Noctua NF-A9x14 HS-PWM chromax.black

Bearing

SSO2

Max. rotational speed (+/- 10%)

2500 RPM

Max. rotational speed with L.N.A. (+/- 10%)

1800 RPM

Min. rotational speed (PWM, +/-20%)

600 RPM

Max. airflow

57,5 m³/h

Max. airflow with L.N.A.

40,8 m³/h

Max. acoustical noise

23,6 dB(A)

Max. acoustical noise with L.N.A.

14,8 dB(A)

Input power

2,52 W

Voltage range

12 V

MTTF

> 150.000 h
