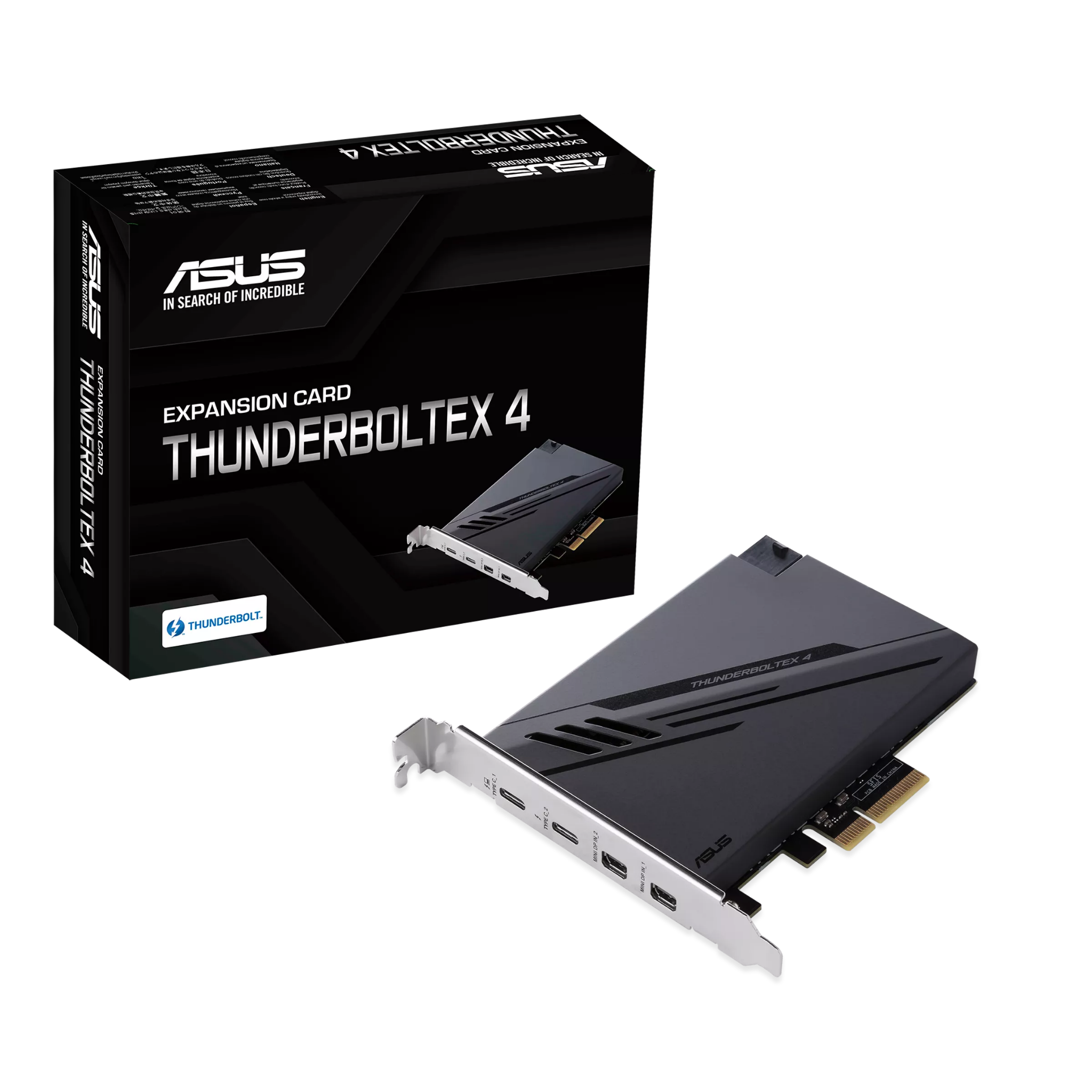

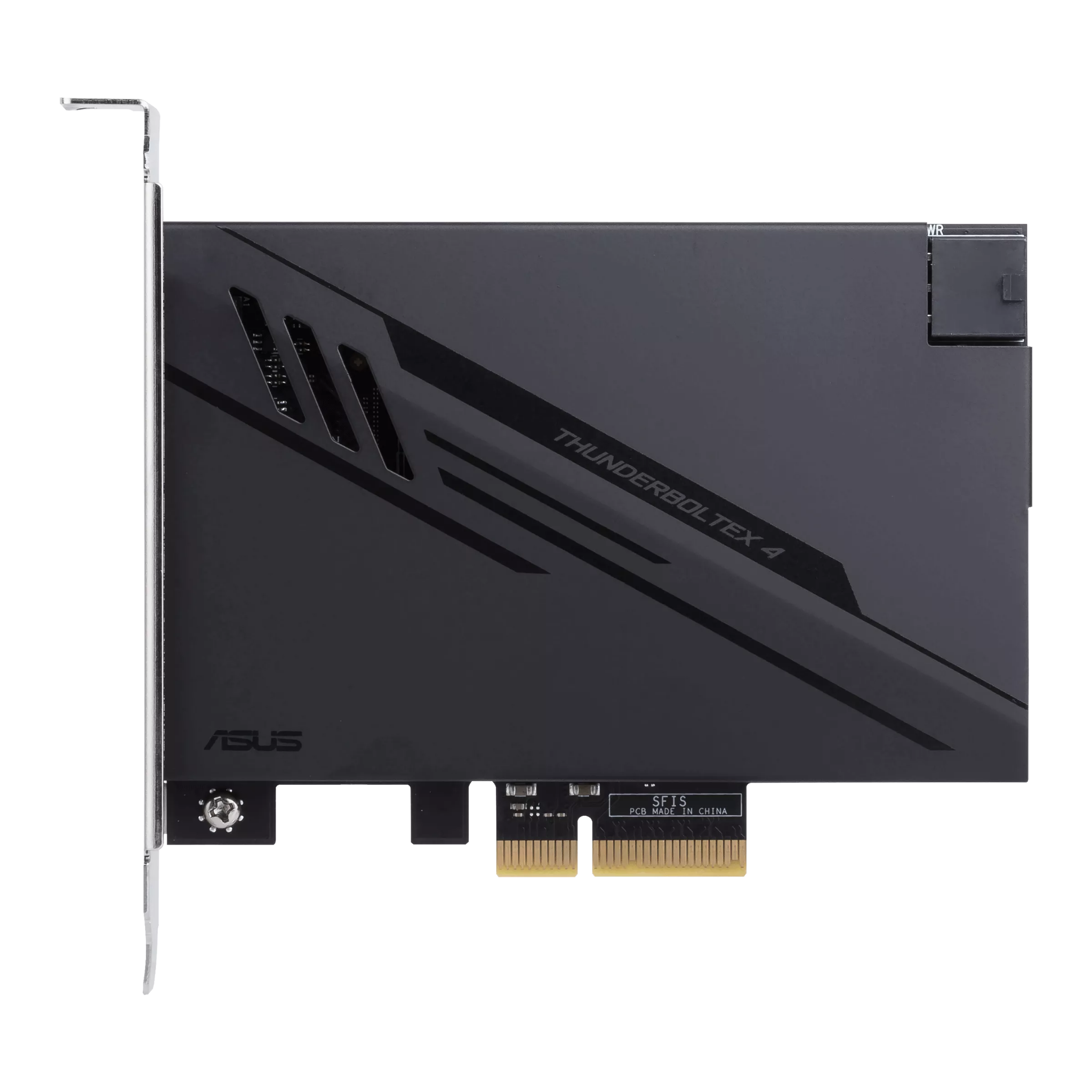

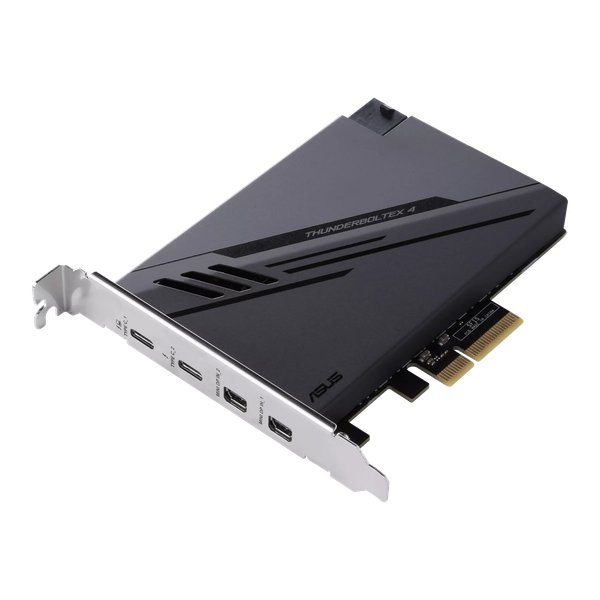

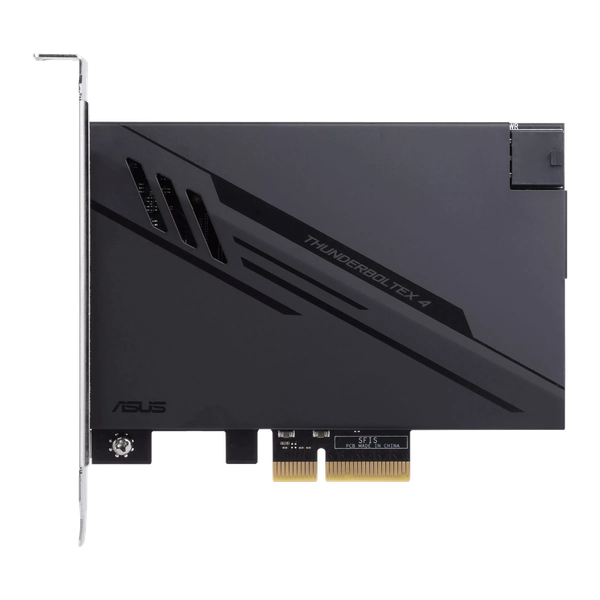

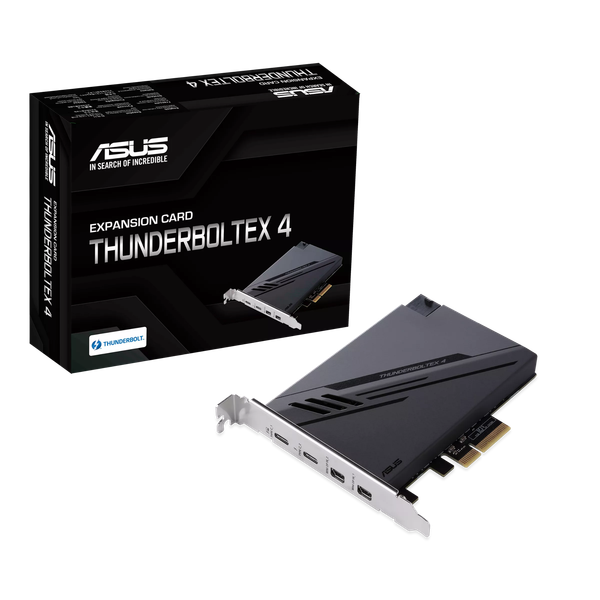

Thiết Bị Kết Nối Tín Hiệu - ASUS ThunderboltEX 4 Expansion card, Dual Thunderbolt™ 4 (USB‑C®) ports, DisplayPort™ 1.4, PCIe® 3.0 x4 interface

Hãng sản xuất

Asus

Model

ThunderboltEX 4

Chipset

Intel® Thunderbolt™ 4 JHL8540 Controller

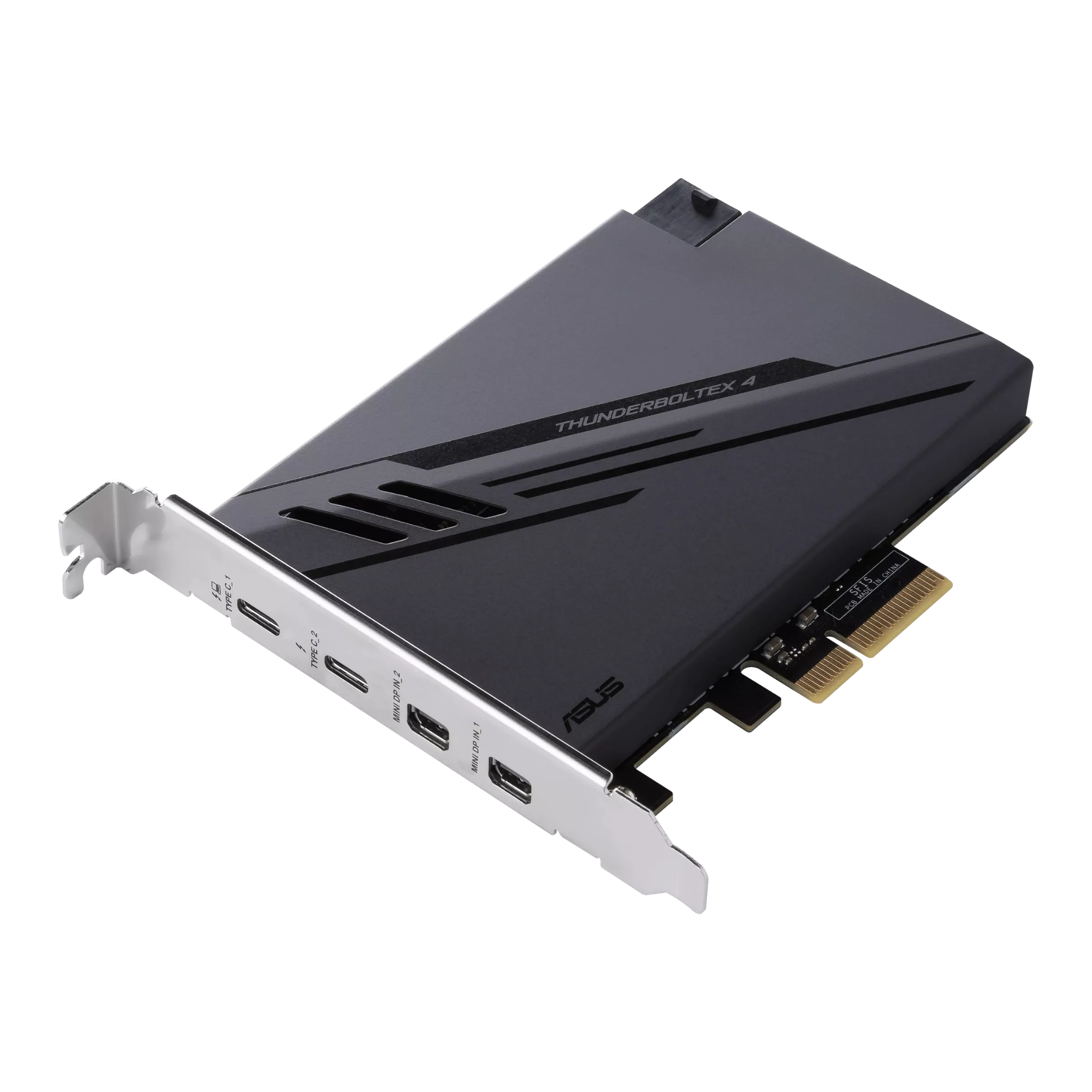

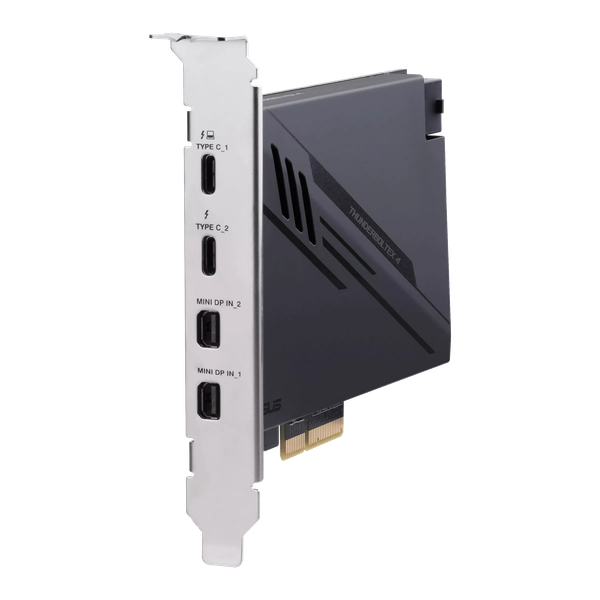

Cổng kết nối

2 x USB Type-C® ports (Support Thunderbolt™ 4 and USB 4 technology)
- Up to 40Gbps for Thunderbolt devices
- The Type-C_1 supports up to 20V/5A, 100W quick charge feature, Type-C_2 support up to 9V/3A, 27W quick charge feature.
2 x mini DisplayPort IN ports
1 x 6-pin PCIe power connector for quick charge function
1 x USB 2.0 header
1 x Thunderbolt header

Giao diện

PCIe 3.0 x4

VGA

Supports DisplayPort 1.4 with max. resolution 7680 x 4320@60Hz*
* Max resolution support will depend on your VGA source

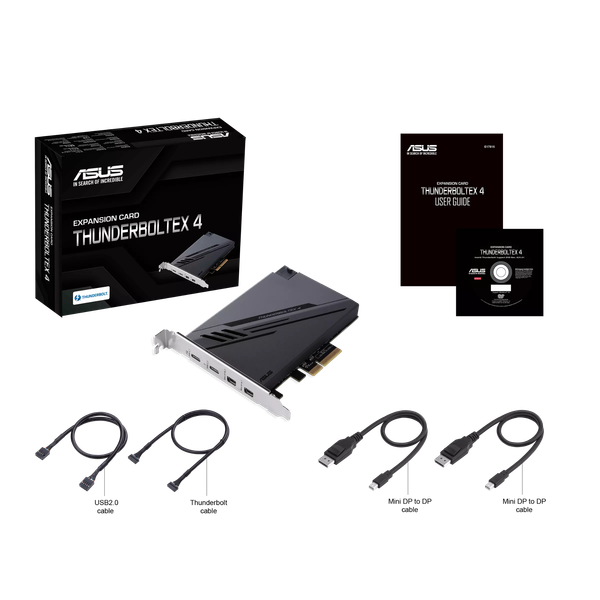

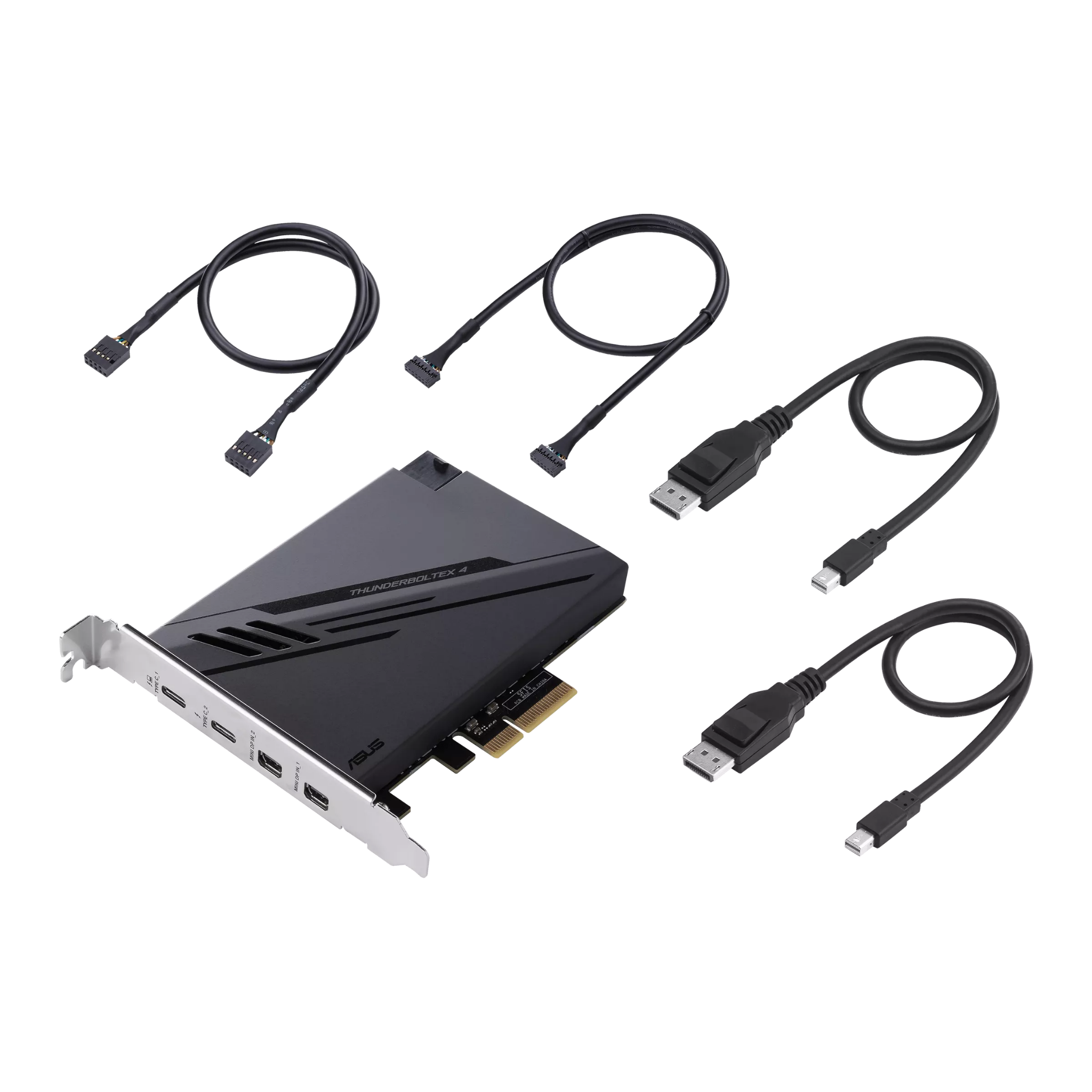

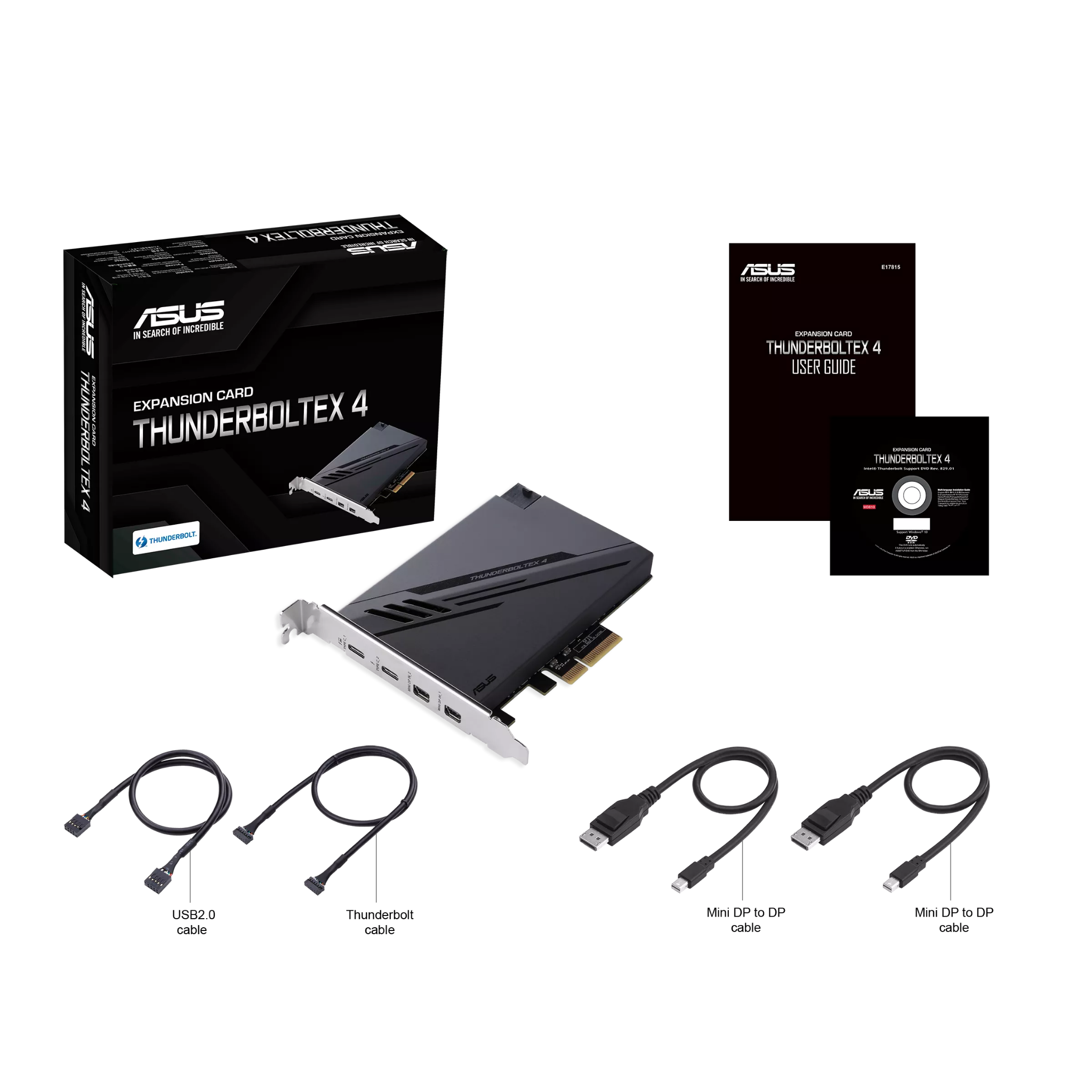

Phụ kiện

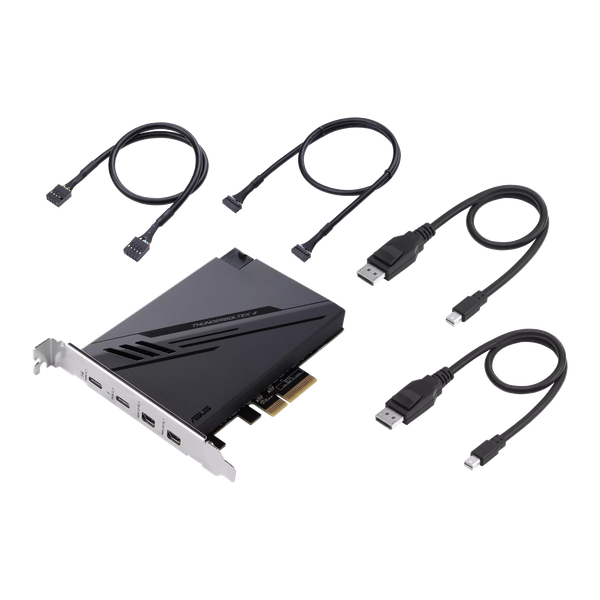

2 x mini DisplayPort cables (links graphics output from motherboard’s or discrete graphics card’s DisplayPort to the mini DisplayPort IN port on the ThunderboltEX 4 card)
1 x USB 2.0 cable
1 x 14-1 pin Thunderbolt header cable
1 x User manual
1 x Support DVD with Thunderbolt™ driver

OS

Windows® 10; 11 - 64 bit

Kích thước

11.77 cm x 18.05 cm

Bảo hành

12 Tháng
