Thông tin chung

Socket

LGA1700

Hỗ trợ CPU

Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors

Chipset

Intel B760

Khe cắm RAM

4

Hỗ trợ RAM

4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

Card đồ họa

1 x DisplayPort
2 x HDMI® ports

Âm thanh

Realtek 7.1 Surround Sound High Definition Audio CODEC

Kết nối không dây

Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

Kết nối có dây

1 x Realtek 2.5Gb Ethernet

Khe cắm trong

Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Khe cắm mở rộng

Intel® 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)

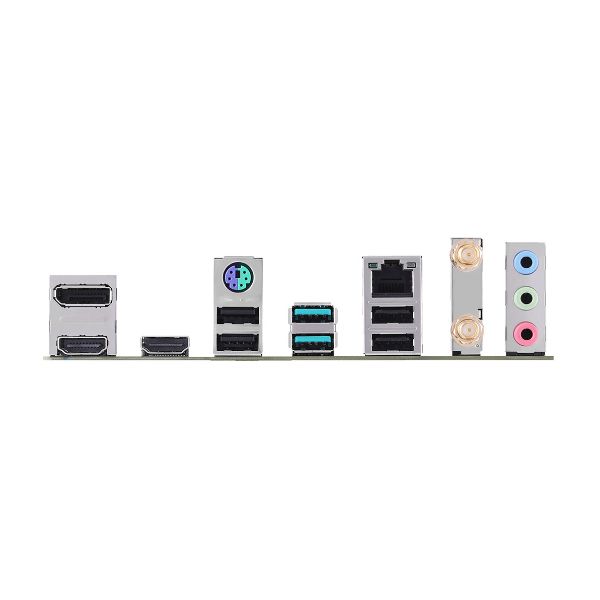

Cổng giao tiếp ngoài

2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMI® ports
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Kích thước

MATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Mô tả khác

Đang cập nhật

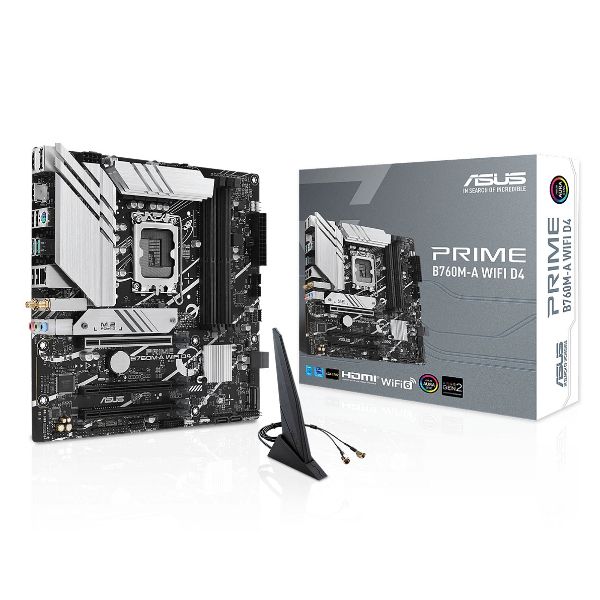

Phụ kiện kèm theo

Sách, đĩa, cáp SATA
