CPU hỗ trợ

AMD

Chipset

A320

RAM hỗ trợ

2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz

Khe cắm mở rộng

AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)

AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)

AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x4 mode)

AMD A320 chipset
2 x PCIe 2.0 x1

Ổ cứng hỗ trợ

4 x SATA 6Gb/s port(s)

1 x M.2 Socket 3, with M key, type 2242/2260/2280

Cổng kết nối (Internal)

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Speaker connector

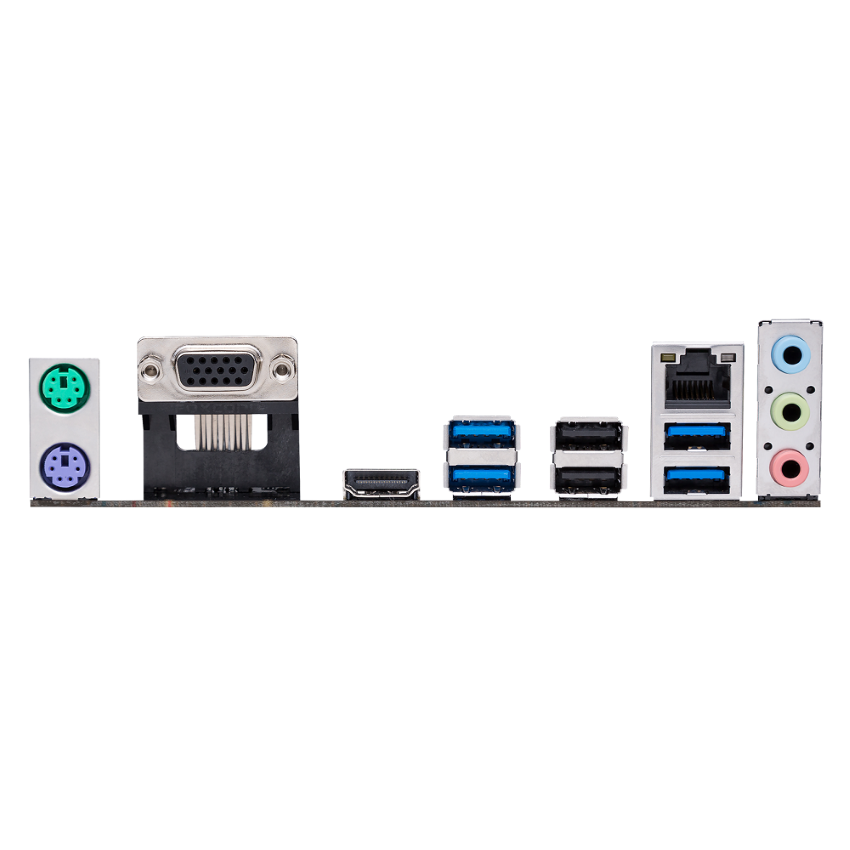

Cổng kết nối (Back Panel)

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue) ,
2 x USB 2.0
3 x Audio jack(s)

Lan

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Kích cỡ

mATX Form Factor
8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
