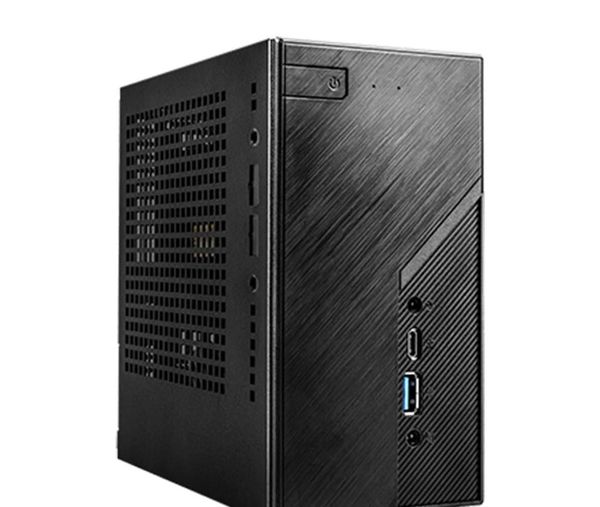

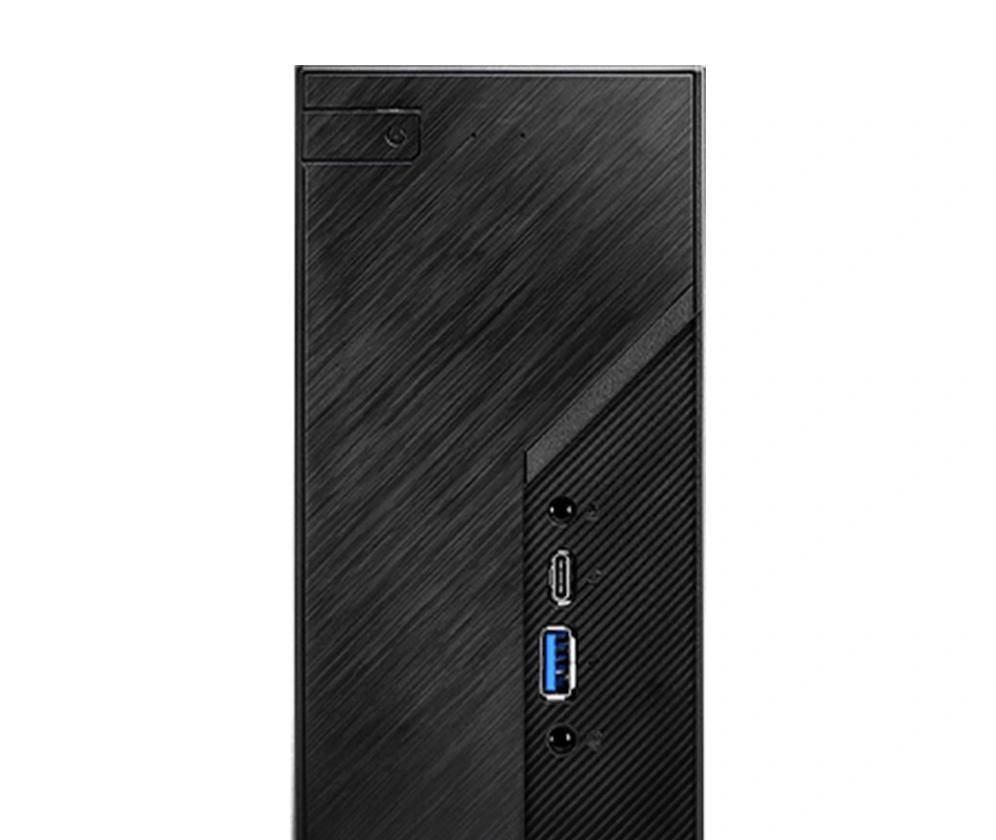

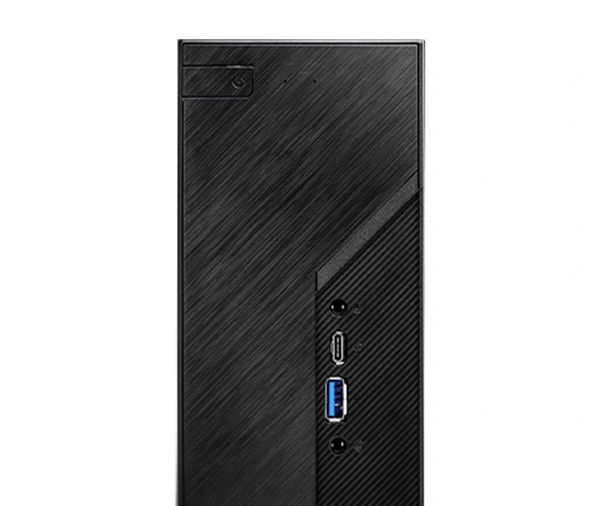

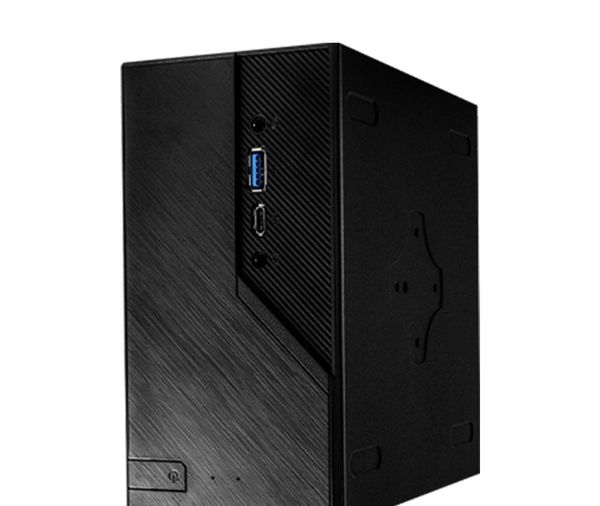

Mini PC - Asrock DeskMini B760

Thông số kĩ thuật:

CPU

• Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700), Max. TDP 65W Cooler

• Supports Intel® CPU Cooler (Max. Height ≦ 47mm)

Memory

• Supports 2 x SO-DIMM DDR4-3200MHz, Max. 64GB (non-ECC)

Chipset

• Intel® B760

Graphics (hỗ trợ xuất cùng lúc 4 màn hình)

• HDMI (4K@60Hz)

• DisplayPort 1.4

• DisplayPort 1.4 (over USB Type-C Alt Mode)

• D-Sub

Audio

• Realtek ALC269 Audio Codec

Storage

• 2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)

• 1 x Blazing M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode*

• 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

LAN

• 2.5 Gigabit LAN (Dragon RTL8125BG) WLAN

• 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel® CNVi (Integrated Wi-Fi/BT)

Front I/O

• 1 x MIC-In - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)

• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)

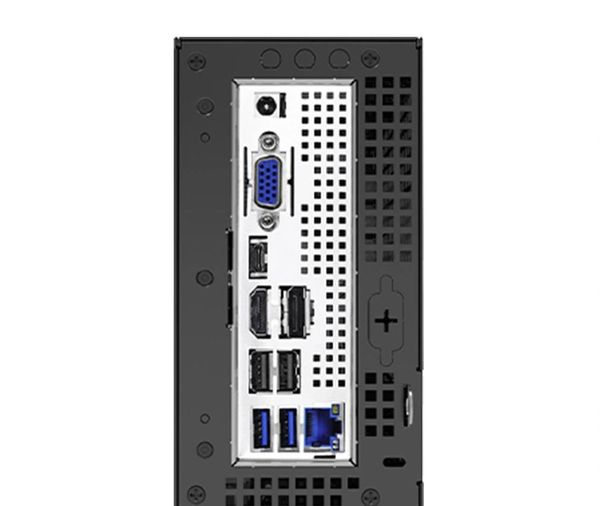

• 1 x Head Phone with MIC Jack Rear I/O

• 1 x DC-In Jack (Compatible with the 19V power adapter)

• 1 x D-Sub Port

• 1 x HDMI Port

• 1 x DisplayPort 1.4

• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode)

• 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)

• 2 x USB 2.0 Ports (Supports ESD Protection)

• 1 x RJ-45 LAN Port with LED

Connectors

• 1 x USB 2.0 Header

• 1 x Front Panel Header

• 2 x 4-Pin fan connectors (CPU, SYS)

• 1 x Internal Speaker Header (4-Pin)

• 1 x Audio Header (4-Pin)

Accessory

• 2 x SATA Data with Power Cable

• 1 x 120W/19V adapter

• 1 x Screws Pack

Dimension

• 155 x 155 x 80 mm (1.92L)

OS

• Microsoft® Windows® 10 64-bit / 11 64-bit
